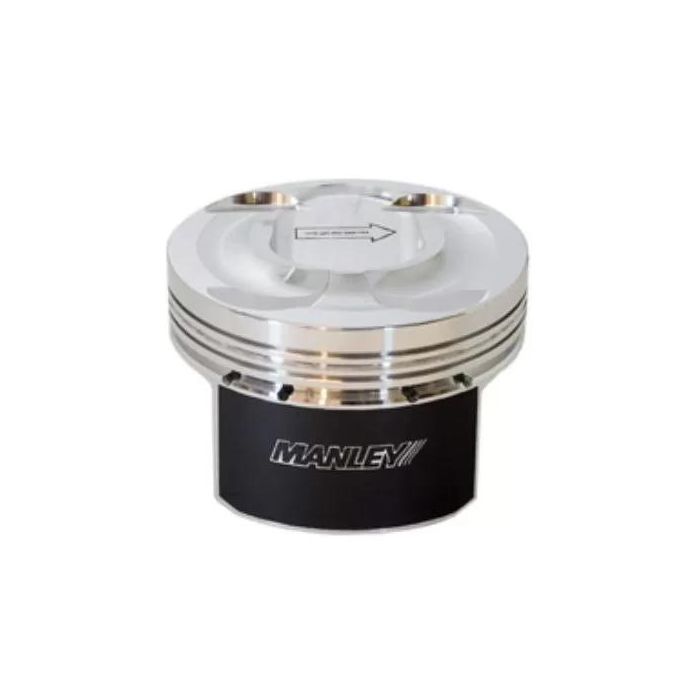

Manley Ford 2.0L EcoBoost 88mm +.5mm Size Bore 9.3:1 Dish Piston Set - 636005C-4
Upgrade your Ford Focus ST 2012+ with the Manley 88mm +.5mm 9.3 2.0L EcoBoost Dish Piston Set w/ Rings. Crafted from high-strength 2618 material, these lightweight yet durable pistons ensure maximum horsepower and long service life.
- High-strength 2618 material for durability
- Lightweight design for enhanced performance
- Perfect ring groove to skirt squareness
- Offset wrist pin design for reliability
- Moly coated skirts for reduced friction
- Includes Total Seal ring package
- Premium Chrome Moly wrist pins included
- Bore Size: 88mm
- Over Size: +.5mm
- Rod Length: 6.136"
- Stroke: 83mm
- Comp Ratio: 9.3
- Piston Type: Dish
- Weight: 387g
- Ford Focus ST 2012-Up
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. We utilize a proven offset wrist pin design, a 1.2, 1.2, 2.8mm Total Seal ring package and moly coated skirts for ultimate performance. Roundwire locks and pressure balance grooves are included with every set at no additional charge.
Premium Chrome Moly wrist pins are included in the Standard Series and 9310 Alloy wrist pins are included with the Extreme Duty Series.
Specifications (83mm Stroke):
- Bore Size (mm): 88
- Over Size: +.5mm
- Rod Length: 6.136"
- Stroke (mm): 83
- Comp Distance: 1.291"
- Dome Volume (cc): -7.3
- Comp Ratio: 9.3
- Piston Type: Dish
- Piston Wt/Gms: 387
- Included Ring Set: 46880-4
- Ford Focus ST 2012-Up (.886"/22.5mm x 2.250" Pin)
| Brand | Manley |
|---|---|
| upc | 807298095134 |
