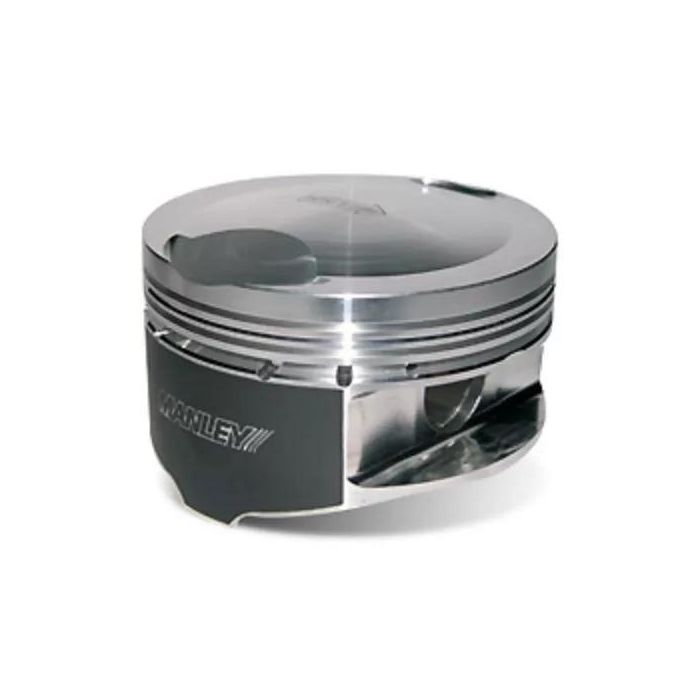

Manley Chrysler 6.4L Hemi 4.090 Bore -20.5cc Dish Stroker Series Piston Set - 599900C-8
Upgrade your Dodge or Chrysler HEMI 6.4L engine with the Manley 4.090" STD Platinum Series -20.5cc Dish Piston Set w/ Rings. Crafted from high-strength 2618 material, these pistons are designed for durability and performance. Features and Benefits:
- High-strength 2618 material for long service life
- Lightweight yet robust design
- Perfect ring groove to skirt squareness for maximum horsepower
- Includes roundwire locks and pressure balance grooves
- Premium Chrome Moly wrist pins included
- Specifications: 4.090" bore size, -20.5cc dish volume
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. Roundwire locks and pressure balance grooves are included with every set at no additional charge. Compression ratios for the 5.7L are calculated at .003" deck clearance and a 3.941" head gasket ID with a .028" compressed thickness. Compression ratios for the 6.1L are calculated at .003" deck clearance and a 4.100" head gasket ID with a .040" compressed thickness. Compression ratios for the 6.4L are calculated at .012" deck clearance and a 4.090" head gasket ID with a .027" compressed thickness.
Premium Chrome Moly wrist pins are included with the Standard Series and 9310 Alloy wrist pins are included with the Extreme Duty Series.
Specifications (Stroker Series):
- Bore Size: 4.090"
- Over Size: STD
- Rod Length: 6.200"
- Stroke: 3.724"
- Comp. Distance: 1.210"
- Pin Dia: .927"
- Combustion Chamber (72 cc): 9.50
- Pistons Wt / Gms: 394
- Dome Volume (cc): -20.5
- Piston Type: Dish
- Premium Steel Top Rings: 46129ST-8
- Dodge | Chrysler HEMI 6.4L Stock Stroke -20.5cc Dish
| Brand | Manley |
|---|---|
| upc | 807298094342 |
