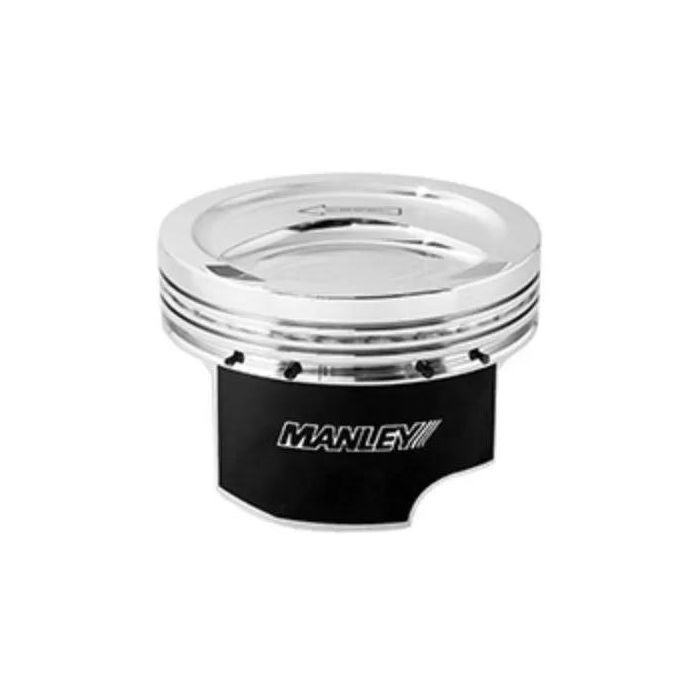

Manley Mazda 94mm 88mm +5mm Bore 9.5 CR Dish Type Platinum Series Pistons w/Rings - 630005C-4
Upgrade your Mazda MZR 2.3L with the Manley 88mm +.5mm 9.5 Platinum Series Dish Piston Set. Crafted from high-strength 2618 material, these lightweight yet durable pistons ensure long-lasting performance. Features include:
- Offset wrist pin for quiet start-ups
- Moly coated skirts for reduced friction
- Premium chrome moly wrist pins and steel top rings included
- Perfect ring groove to skirt squareness for maximum horsepower
- Pressure balance groove
- Accommodates +1mm valve sizes
Specifications: 88mm bore, +.5mm oversize, 9.5 compression ratio. Fitment: Mazda Speed 3 MZR 2.3L DISI Turbo. Sold as a set of 4.
Manley pistons are machined of high strength 2618 material. Each design is lightweight yet robust enough to deliver long service life. Offset wrist pin design is utilized for quiet start-ups. Perfect ring groove to skirt squareness is achieved through our unique "one fixturing" manufacturing method that assures maximum horsepower. All pistons come with moly coated skirts. Round wire locks, premium chrome moly wrist pins, and premium steel top ring sets from Total Seal are included with every kit at no additional charge. Recommended clearance: .0030" measured 1.100" from the bottom of the oil ring groove.
Features:
- .150" wall Premium Chrome Moly pin (Standard Series) included P/N 42248.
- 9310 alloy .210" wall pin (Extreme Duty Series) included P/N 42548.
- Pressure balance groove.
- Will accommodate +1mm valve sizes.
- Bore Size (mm): 88
- Over Size: +.5mm
- Rod Length: 5.927"
- Stroke: 94
- Comp. Distance: 1.270"
- Dome Volume (cc): -13.3
- Cylinder Head (cc): 42
- Comp. Ratio: 9.5
- Piston Type: Dish
- Pistons Wt / Gms: 379
- Premium Steel Top Rings: 46880-4
- Mazda Speed 3 MZR 2.3L DISI Turbo (.8868"/22.5mm x 2.250" Pin)
- Sold as a Set of 4
| Brand | Manley |
|---|---|
| upc | 807298090337 |
