Manley 03-06 Evo 8/9 / 94-99 Eclipse GST GSX (7 bolt 4G63) Turbo Tuff Pro Series I Beam Rod Set - 14403-4

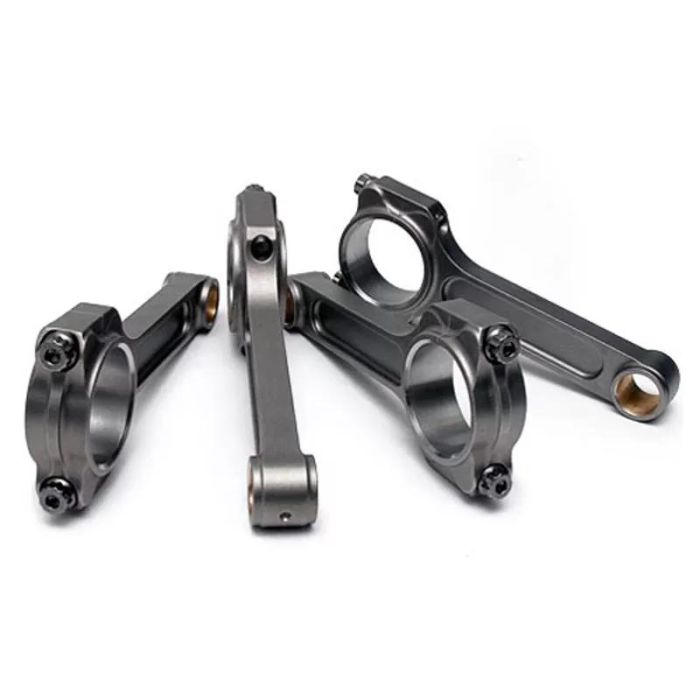

Upgrade your Mitsubishi 4G63 engine with Manley Forged I-Beam Connecting Rods. Crafted from premium 4340 steel, these rods are designed for high horsepower applications. Each rod is precision-machined, shot peened, and magnafluxed for ultimate durability and performance.
- Center-to-Center: 5.905"
- Big End Bore: 1.890"
- Big End Width: 1.038"
- Pin Diameter: .866" (22mm)
- Weight: 675 grams
- Rated up to 1,200+ HP with ARP 625+ fasteners
Manley Performance manufactures the finest steel connecting rods in the Sport Compact industry. These Pro Series connecting rods are forged from aircraft quality 4340 vacuum degassed material. Each rod is fully machined in the Manley Lakewood, NJ factory to the highest standards. The signature "Turbo Tuff" design combines the appropriate weight and rugged strength for ultimate horsepower applications. Each rod is shot peened after machining and magnafluxed. Bores are round and without taper. Bend and twist is tightly controlled. Cap fasteners are 3/8" APR 2000 cap screws.
On all Manley connecting rods, sets are weight matched to ??_ 1.5 grams, big and small end bores are final honed to a tolerance of ??_ .0002", critical bend and twist attributes are held to a minimum, and exacting attention is paid to every detail by the final inspection department thus rendering a finished product that is second to none.
All Manley Performance I-Beam Rods are rated up to 1,000 horsepower with ARP 2000 fasteners, or 1,200+ with available ARP 625+ fasteners.
I-Beam Rod Specifications:
- Center-to-Center : 5.905"
- Big End Bore : 1.890"
- Big End Width : 1.038"
- Pin Diameter : .866" (22mm)
- Pin Bore : .8671"
- Weight : 675 grams
| Brand | Manley |
|---|---|
| upc | 807298002347 |
