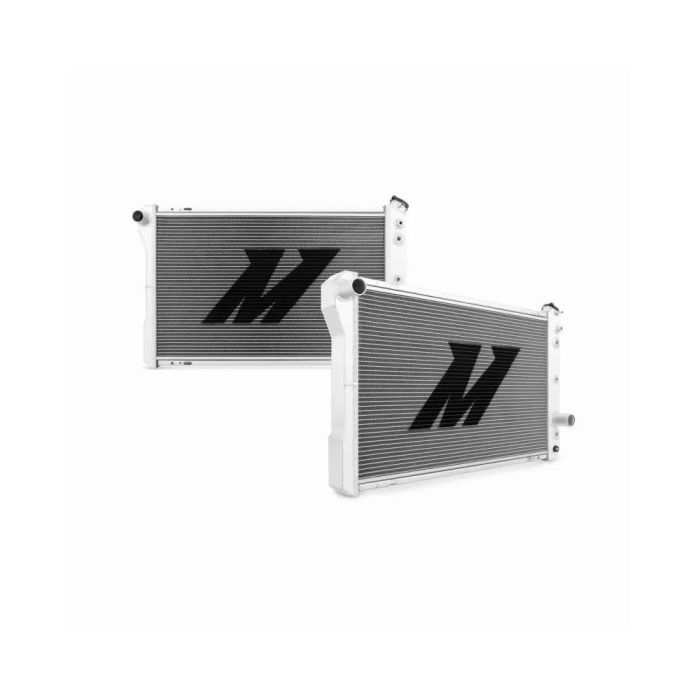

Mishimoto 82-92 Chevy Camaro / Pontiac Firebird X-Line Performance Aluminum Radiator - MMRAD-CAM-82X

A street or track muscle car demands a reliable cooling system. Outfit your Chevrolet Camaro or Pontiac Firebird with the ultimate upgrade in cooling efficiency. The Mishimoto Aluminum Radiator utilizes a massive 3-row core with precision TIG-welded aluminum end tanks for increased reliability and cooling efficiency. The radiator comes with a Mishimoto High-Pressure Radiator Cap to keep your stock or modified small block temperatures in check. This radiator also includes a Mishimoto M12 x 1.5" Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system.Not only will the Mishimoto radiator keep coolant temperatures at bay but the built in transmission cooler will improve the performance and extend the life of your transmission. The Mishimoto Chevrolet Camaro / Pontiac Firebird X-Line Performance Aluminum Radiator is a direct fit product that requires no cutting or trimming and, as with all our aluminum radiators, includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

Features:

• Direct fit for the 1982-1992 Chevrolet Camaro w/ L6 and V8 engines
• Full aluminum radiator featuring robust TIG-welded construction
• Massive three-row, 2.05 thick brazed aluminum core provides efficient fluid temperature reduction on the street or strip
• Includes 1.3 Bar High-Pressure Radiator Cap which effectively raises the boiling point of engine coolant, providing a safer and more efficient system
• Polished aluminum end tanks enhance engine bay aesthetics
• Includes Mishimoto M12 x 1.5 Magnetic Drain Plug to capture any metallic debris/fragments in your cooling system
• Mishimoto Lifetime Warranty

• (1) 1/8 NPT Plug (1) 1/4 NPT Plugs
• Mishimoto Lifetime Warranty

• Material: Aluminum
• Overall Height: 31.5
• DPI: 951
• Drain Plug Thread Size: (M12) x 1.5
• Overall Length: 19.5
• Tank Wall Thickness: 0.08
• Outlet: 1.57
• Rows: 3
• Inlet: 1.34
• Dual Pass: False
• Overall Width: 5
• Core Length: 26.18
• Core Height: 16.69
• Core Thickness: 2.16
• Overall Length (in): 19.50
• Overall Height (in): 31.50
• Overall Width (in): 5.00
• Rows: 3

• Engine Codes
  • V6
  • V8
• Fits
  • 1982-1992 Chevrolet Camaro L6 & V8
  • 1982-1992 Pontiac Firebird Trans Am
