Mishimoto 10-11 Hyundai Genesis Coupe Black Aluminum Intercooler Kit - MMINT-GEN4-10BK

OEM intercooler setups are not designed to handle the higher levels of boost that come with modifying your turbocharged vehicle. The Mishimoto intercooler and piping are designed as an ideal upgrade for the 2010-2012 Hyundai Genesis Coupe 2.0T.

The intercooler and piping kit reduces intake temperatures and increases overall cooling efficiency, resulting in a safe increase in horsepower. Unlike most other aftermarket intercooler kits available, modifications to the front bumper and removal of the crash bar are not necessary, since our kit retains the OEM fitment of these parts.

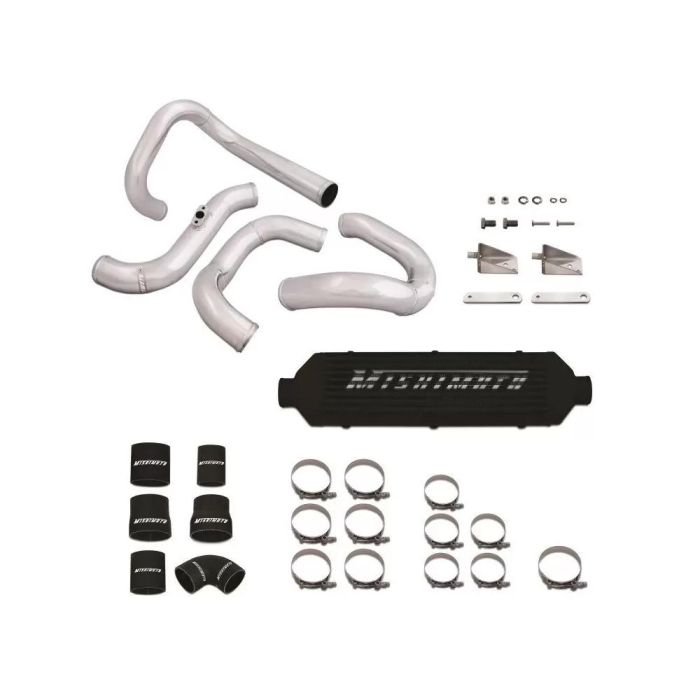

Included in this comprehensive kit is a polished aluminum or black bar-and-plate style Z Line intercooler, a complete set of aluminum charge piping, and all t-bolt clamps and silicone couplers needed for direct bolt-on installation. The Mishimoto Hyundai Genesis Coupe intercooler and piping kit will fit with the OEM radiator, as well as the Mishimoto Hyundai Genesis Aluminum Radiator.

Features:

• Direct fit for 2010-2012 Hyundai Genesis Coupe 2.0T
• Smooth cast end tanks allow the best possible airflow in and out of the intercooler
• Lightweight, mandrel-bent, aluminum pipes eliminate restrictive bends in the stock piping
• No modifications to the front bumper or removal of the crash bar are necessary
• Includes all necessary couplers, brackets, and accessories
• Intercooler available in Sleek Silver, Stealth Black, or Bold Gold
• Mishimoto Lifetime Warranty
• CARB EO #: D-759

• (1) Mishimoto Z Line Intercooler (Black or Silver)
• Mishimoto Lifetime Warranty

• Installation Torque Specs: 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps.
  These clamps have an operating range of 18-35 in-lbs (2-4N*M).
  Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
• Silicone Couplers: (1) 2.25 straight coupler
  (1) 2.5 straight coupler
  (1) 2- 2.25 transition coupler
  (1) 2.25- 2.5 transition coupler
  (1) 2.5- 2.75 transition coupler
  (1) 2.5 90-degree coupler
• Thread Size: (M12) x 1.75
• Constant Tension T-Bolt Clamps Specs: (1) 2.25 T-Bolt Clamps
  (4) 2.5 T-Bolt Clamps
  (6) 2.75 T-Bolt Clamps
  (1) 3 T-Bolt Clamp
• Core Thickness: 3.35
• Tank Wall Thickness: 5mm
• Fin Pitch: 15 Fins/Inch
• Max Rec. PSI: 22 psi
• Outlet: 2.5
• Core Length: 20.5
• Core Height: 6.25
• Core Width: 2.5
• Inlet: 2.5
• Core Size: 20.5 x 6.25 x 2.5
• Overall Width: 2.5
• Overall Height: 7.5
• Overall Length: 28
• Construction: Bar-and-Plate

• This item is for Manual Transmission vehicles.Does not fit with factory air dam. Does not fit with front factory splash shield.
