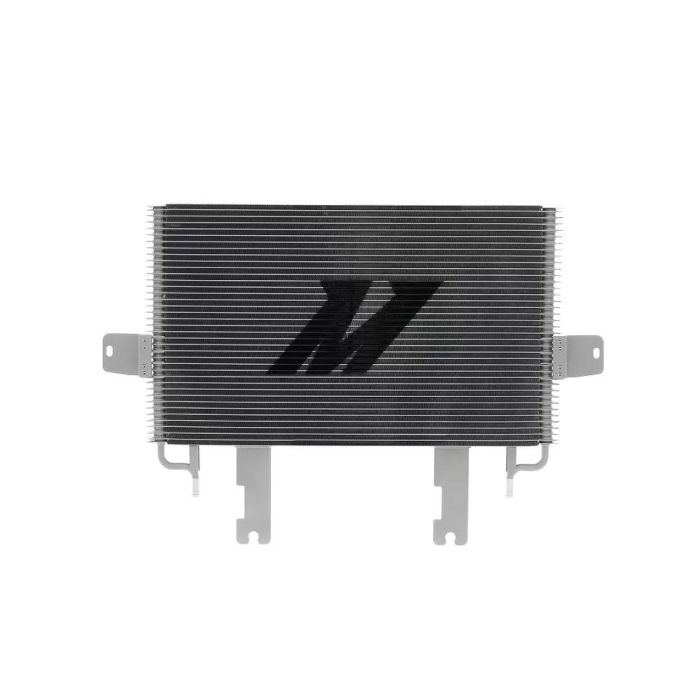

Mishimoto 03-07 Ford 6.0L Powerstroke Transmission Cooler - MMTC-F2D-03SL

Heavy loads are no match for a 2003-2007 6.0L Powerstroke equipped with the Mishimoto 6.0L transmission cooler. Complement your cooling system with the latest addition to Mishimoto's 6.0L Powerstroke performance parts, the all-new 6.0L transmission cooler. The stock 6.0L Powerstroke transmission cooler does an ample job of keeping temperatures down, but as the load increases, so do transmission temps. The 37-row Mishimoto stacked-plate cooler provides a larger surface area over both of the stock coolers. Core volume is increased by a whopping 21%, and fluid capacity is increased by 1/3 qt. With the Mishimoto 6.0L transmission cooler, high transmission fluid temperatures will be the least of your worries. The increased size of this 6.0L transmission cooler provides a proven +10°F drop in transmission fluid temperature! No modifications are necessary for installation and, just like all Mishimoto 6.0L Powerstroke parts, this cooler comes with the Mishimoto Lifetime Warranty.

Features:

• Direct fit for the 2003-2007 Ford 6.0L Powerstroke
• Proven +10°F (+5.6°C) drop in transmission fluid temperature with no additional fluid pressure drop
• No modification necessary for installation, functions with all stock equipment
• 37-row stacked-plate fluid cooler provides larger surface area over even the largest stock 31-row transmission cooler
• Transmission cooler core has a 21% increase in core volume compared to the factory 31-row transmission cooler
• Increases transmission fluid capacity by 1/3 qt
• Mishimoto Lifetime Warranty

• (1) Mishimoto Stacked-Plate Transmission Cooler
• Mounting Hardware
• Mishimoto Lifetime Warranty

• SKU: MMTC-F2D-03SL
• Material: 6061 Aluminum
• Core Height: 16.13
• Rows: 37
• Cooler Construction: Stacked-plate
• Core Thickness: 1.25 (32 mm)
• Core Length: 25.25
• Tank Wall Thickness: .08 (2mm)
• Temp Difference: +10°F (+5.6°C) drop in transmission fluid temperature
• Overall Height: 23.5
• Overall Length: 34
• Overall Width: 1.34
• Core Size: 25.25 x 16.13 x 1.25 (642 mm x 410 mm x 32 mm)
• Inlet: .5 (13 mm)
• Outlet: .5 (13 mm)
• Also Fits: Ford Excursion (6.0L Powerstroke) 2003-2005
  Ford F-250 (6.0L Powerstroke) 2003-2007
  Ford F-350 (6.0L Powerstroke) 2003-2007
  Ford F-450 (6.0L Powerstroke) 2003-2007
  Ford F-550 (6.0L Powerstroke) 2003-2007

  Also fits 1999-2003 Ford Super Duty trucks with the 7.3 Powerstroke, however, the transmission cooler lines must be changed to ½ OD prior to installation.

• Will not work with vehicles that came equipped with a high mounted power steering cooler. These vehicles will need to relocate the power steering cooler to the lower mounting location.
