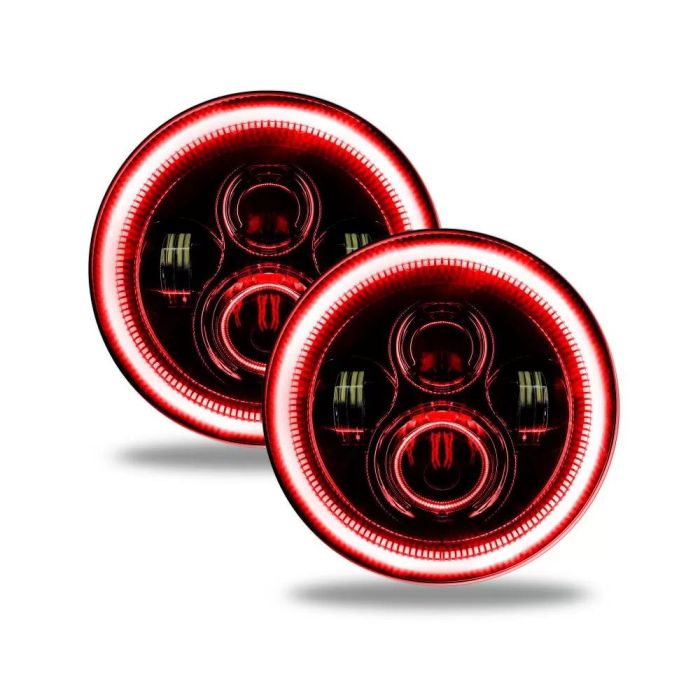

Oracle 7in High Powered LED Headlights - Black Bezel - Red SEE WARRANTY - 5769-003
This Item has limited quantity. Request Quote for item availability.
Please Request Quote for stock status
Upgrade your Jeep Wrangler with Oracle Lighting's 7 Inch High Powered LED Headlights. Featuring a sleek black bezel and striking red halo, these headlights offer superior illumination and style. Perfect for off-road adventures and classic vehicles, they ensure easy installation with H4 and H13 connectors. Enjoy enhanced brightness, reliability, and a 2-year warranty.
- Low Beam: 2200 Lumens
- High Beam: 3600 Lumens
- Color Temperature: 6000K Cool White
- 12-24V DC Input Voltage
- Plug & Play Installation
- DOT and SAE Certified
- Premium Phillips Luxeon ZES LEDs
- 2-Year Warranty
The Ultimate LED replacement headlight option for any vehicle with 7" Sealed Beam lamps. The rugged design is perfect for your Jeep Wrangler, Off-Road Vehicle, Buggies, or Classic Car/ Truck. Installation is very easy with the included H4 and H13 "Plug and Play" connectors. Each set comes in full color retail-ready packaging and a 2-Year free Replacement Warranty. You can even choose optional colored Halos for even more customization!
Features:
- Low Beam Wattage: 30W Normal/36W Max
- Low Beam Lumens: 2200 Lumens/3600 Raw Lumens
- High Beam Wattage: 40W Normal/48W Max
- High Beam Lumens: 3600 Lumens/4800 Raw Lumens
- Color Temperature: 6000K (Cool White Color)
- Input Voltage of Light: 12-24V DC
- Input Voltage of Halo (If Included): 12V DC
- Current Draw: 2.50 Amps & #64 12V DC / 1.30 Amps & #64 24V DC
- Optional: ORACLE Halo Rings Pre-Installed
- Premium Performance Phillips Luxeon ZES LEDs
- Die-Cast Housing with Corrosion Resistant Coating
- Heavy Duty Solid State Electronics
- Hard-coated Polycarbonate Lens
- Wide Beam Pattern with Sharp Cut-Off Line
- Easy Plug & Play Installation
- 2 Year Warranty
- DOT and SAE Certified
- Wiring for Halos: Red Wire is (+) the positive wire / Black Wire is (-) the negative wire
- Improvements in brightness and reliability by adding a constant current LED driver to the main circuit board inside of the lamp to control the halos.
- NEW! No need for Anti-Flicker Wiring Adapters- The new SMART Integrated Can-Bus system automatically adjusts- preventing flicker issues.
- Increased Reliability- By conditioning the power going into the LEDs this prevents degradation which can shorten the overall lifespan of the product.
- Wider Input Voltage Range- The new SMD Halos can operate on a very wide voltage range from 12V-24V so that voltage spike can not damage the LEDs.
- Brighter LED Halos- by moving the heat load of the resistors off the PCB we are able to increase the number of LEDs on the circuit board without thermal issues.
- LED chips upgraded from a Cree LED to a Phillips Luxeon ZES chip.They deliver a very high efficacy 130LM/W ratio while having lower thermal output.
- Red Wire is (+) the positive wire
- Black Wire is (-) the negative wire
- Connecting Wires to a Toggle Switch
- Connecting Wires to a Controller
- For Instructions CLICK HERE
- Jeep Wrangler JK 2007-2017
| Brand | Oracle Lighting |
|---|---|
| upc | 810030390411 |
