Radium Engineering Mazda 13B-Rew Secondary Top Feed Conversion Fuel Rail - 20-0447

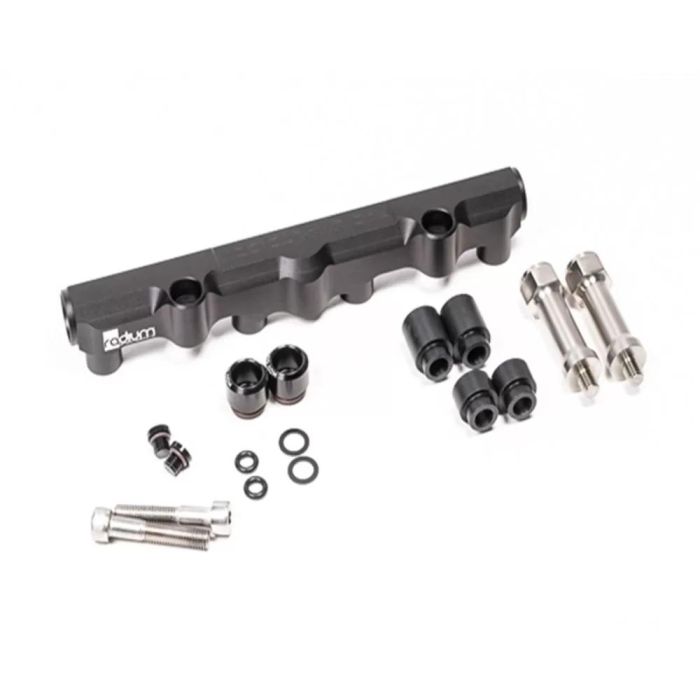

This Radium Engineering secondary fuel rail is for the Mazda 13B-REW rotary engine.

With the use of the provided 2AN ORB plugs, this adaptable design permits both the OEM 2-port intake manifold (shown above) and aftermarket 4-port intake manifolds

The aluminum fuel rail is anodized black for compatibility with all popular fuel types including E85. Manufactured with a large internal bore, the fuel rail can support all necessary engine power requirements. The three 8AN ORB ports are compatible with these fittings HERE. The extra center port allows additional fuel system accessories such as the OEM fuel temperature sensora pressure transducer, Radium fuel pulse damper, etc.

Insulating spacers and washers are included with stainless steel hardware to prevent thermal energy from conducting heat into the fuel. The two M8 extension mounts are made from stainless steel for superior strength and corrosion resistance.

For the OEM 2-port intake manifold, the included 20mm insulating spacers, billet injector seats, and 2AN ORB plugs will be used. Also, for the required space, an air control valve delete for the OEM 13B-REW intake manifold (sold separately) is required.

The included 14mm lower injector seats were designed specifically to be compatible with or without the OEM diffusers in place. They feature FKM O-rings making them suitable for boosted applications.
NOTE: if using an Elite Rotary Shop 4-port intake manifold

Fitment:

• Mazda RX-7 1987 - 2002
