Radium Engineering VTA Competition Catch Can - L - 20-0772

$256.45
sku
rad20-0772
Free Shipping Banner
More than 2 in stock

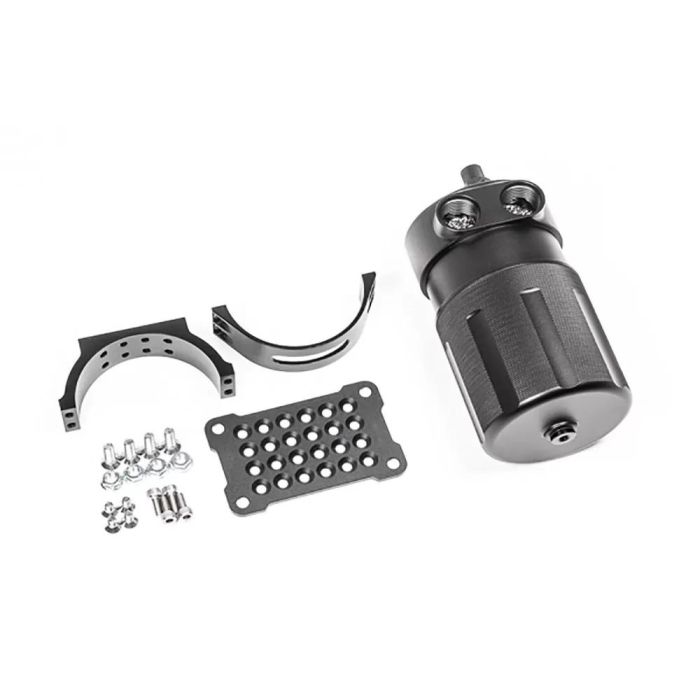

The Radium Engineering L VTA Competition Catch Can (RADI-20-0772) is designed for high-performance engines, venting to the atmosphere for optimal efficiency. Ideal for dual bank engines, it ensures contaminants are effectively trapped and prevents engine bay overspray.

  • Dual 10AN ORB inlets for dual bank engines
  • Large non-restrictive outlet for efficient airflow
  • Easy-to-service CNC machined aluminum design
  • Integrated dipstick for quick fluid level checks
  • Threaded port for optional drain valve
  • Flexible mounting bracket with 360-degree rotation

Radium Competition Catch Cans (CCC) are specifically made to vent to atmosphere (VTA). For a VTE competition catch can that recirculates clean air back into the intake, click HERE. There is a large and extra large version of the VTA competition catch can (see below for more details). The XL CCC meets the common 1 quart minimum capacity requirements dictated by many organizing bodies including SCCA, NASA, and Formula Drift.Features :

  • Both VTA CCCs have 2 adjacent inlets making them complimentary to dual bank engines. Both inlet ports are machined with 10AN ORB (7/8"-14) threads.
  • The VTA CCC features one giant non-restrictive outlet that is over 183% larger than the inner diameter of the 10AN inlets. This increase in volume slows air flow allowing contaminants to fall out of suspension. Additionally, contaminants are trapped with a diffuser permitting the oil sludge to fall back into the catch can preventing overspray in the engine bay.
  • The CNC machined aluminum can unscrews for ease of serviceability. The VTA CCC has a dual stage condensing material design (located in the inlet and outlet). These free flowing chambers do not create any flow restriction.
  • An easily accessed dipstick is provided to quickly check fluid level.
  • A threaded 4AN ORB port (shown below) is integrated on the bottom for the ability to plumb a petcock drain valve.
  • The included bracket provides a ton of flexibility and permits full 360 degree rotation. Additionally, M6x1mm hardware is provided for chassis mounting.
Specifications :
  • Inlet Threads: 10AN ORB (7/8"-14)
  • Drain Threads: 4AN ORB (7/16"-20)
  • Outer Diameter: 3.45"
  • Height: 6.3" / 160mm
  • Weight: 1.8 Lbs (w/ All Hardware)
  • Volume: 0.625qt / 0.6l / 20floz
Install Instructions:Notes :
  • For engines with 1 crankcase vent port, simple use 14-0351 to plug the additional inlet port.
  • The lower half of the body simply unscrews for draining.
  • The integrated dipstick unscrews for a quick way to check oil level.
  • Some engines may require multiple catch cans depending on the PCV system design.
  • Bulk PCV rubber hose in various sizes.
  • Catch cans are NOT designed for aftermarket crankcase vacuum pumps.
  • Sold without fittings. Compatible 10AN ORB adapter fittings.
More Information
More Information
Brand Radium Engineering
