Radium Engineering Nissan S14/S15 SR20DET Fuel Rail Kit - 20-0359
Upgrade your Nissan Silvia S14/S15 SR20DET with the Radium Engineering Fuel Rail Top Feed Conversion. This high-quality fuel rail is CNC machined from 6061 aluminum and black anodized for durability. It supports high flow injectors and all fuel types, including E85. The kit includes everything needed for a seamless installation. Features:
- 0.69" large internal bore for optimal fuel flow
- Thermal insulating spacers and washers
- Anodized aluminum injector seats and IACV spacer kit
- Compatible with 14mm top feed injectors
- Includes all necessary mounting hardware
This Nissan Silvia fuel rail is specifically designed for the SR20DET S14/S15 OEM intake manifold. For the SR20DET S13 fuel rail kit,
Manufactured with a 0.69" large internal bore, the fuel rail can support all necessary engine power requirements. The rail is CNC machined from solid 6061 aluminum and black anodized for a high quality surface finish. The included insulating spacers mount the rail to the OEM intake manifold bosses thermal isolation. The Radium fuel rail converts the OEM side feed fuel injector setup to top feed, allowing the use of high flow fuel injectors (not included). The fuel injector bores are 14mm ID. The kit is designed for specific upper and lower O-ring spacing, as depicted.
To resist oxidation corrosion, the lower billet aluminum injector seats are anodized and laser etched.
They are O-ring sealed and designed for 14mm top feed injectors. This kit is compatible with all fuel types including popular alcohol mixtures such as E85. The OEM 2-bolt IACV bypass hard line is replaced by a billet aluminum IACV spacer kit to gain clearance for the top feed fuel rail. An anodized aluminum barb adapter and rubber hose is supplied to reroute the charge pipe hose externally to the manifold. One gasket is included for the IACV spacer.

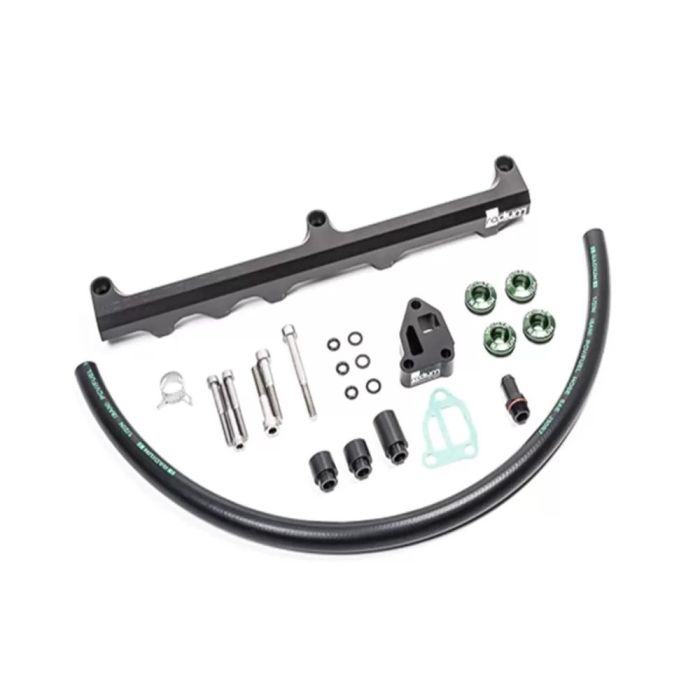

Included:
All parts listed below are included for a trouble and leak-free installation.
- Black Anodized Aluminum Fuel RailThermal Insulating Spacers (x3)
- Thermal Insulating Washers (x3)
- Radium 20-0161, Green Anodized Aluminum 25mm Injector Seats (x4)
- Radium 20-0162, Black Anodized Aluminum IACV Spacer Kit
- Radium 18-0014, IACV Gasket, SR20DET S14/S15 (x1)
- Black Anodized Aluminum IACV Barb Adapter
- Rubber Hose and OEM Clamp for IACV
- Stainless Steel M8x1.25 Mounting Bolts (x3)
- Stainless Steel M6x1 Mounting Bolts (x3)
