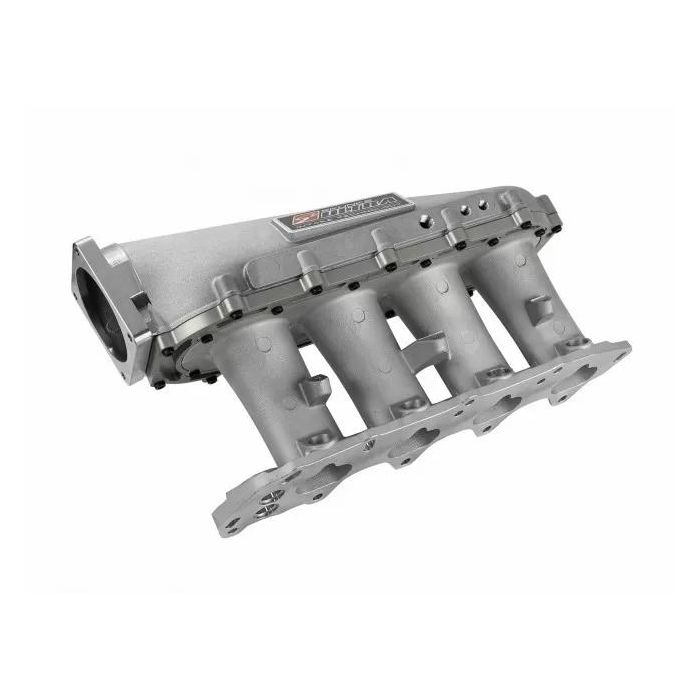

Skunk2 Ultra Series B Series VTEC 3.5L Intake Manifold - Silver (For 4.5L - add sk907-05-9001) - 307-05-9000
Elevate your Honda Civic or Acura Integra's performance with the Skunk2 Silver B VTEC Ultra Race Intake Manifold. Engineered for the B16A/B17A/B18C engines, this manifold offers unmatched power gains and easy customization.
- Modular 3-piece design with removable plenum
- 3.5L plenum volume
- 90mm throttle body flange
- High-velocity runners and raised velocity stacks
- Provisions for secondary fuel rail and injectors
- Includes thermal gasket and high-grade mounting hardware
- Fits most popular chassis configurations
- Honda Civic SI 99-00
- Honda Civic del Sol VTEC 94-95
- Acura Integra GS-R/Type-R 92-01
Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the Honda B16A/ B17A and B18C engine or VTEC cylinder heads!
The much anticipated Ultra Race Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
Features:
- Modular 3pc. Design w/ Removable Plenum
- 3.5L Plenum Volume**
- 90mm Throttle Body Flange - Std. 5.0L Ford Pattern
- 6.5" Tilted & Tapered Hi-Velocity Runners
- Raised 87mm Velocity Stacks
- Generously Cast Runner Walls for Porting
- Provisions Secondary Fuel Rail & Injectors
- 4 x 1/8" NPT, 2 x 1/4" NPT and 1 x OEM AIT Port
- Hi-Grade Mounting Hardware
- Thermal Gasket Included
- Fits MOST Popular Chassis Configurations
- Honda Civic SI 99-00
- Honda Civic del Sol VTEC 94-95
- Acura Integra GS-R/Type-R 92-01
- 3.5 Liter > High Horsepower N/A and Forced Induction Applications to 600HP
- 4.5 Liter > 600-1000HP
- 5.5 Liter > 1,000HP Up
- US Patent: D673977
| Brand | Skunk2 |
|---|---|
| upc | 873265006700 |
