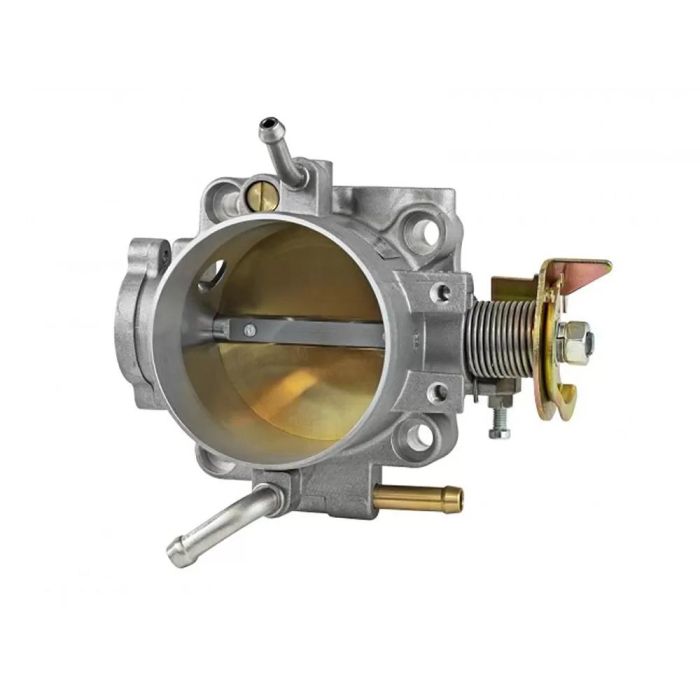

Skunk2 Alpha Series Honda/Acura (D/B/H/F Series) 70mm Cast Throttle Body (OEM Look) - 309-05-1050
Enhance your Honda or Acura's performance with the Skunk2 Racing Alpha 70mm Throttle Body. Designed for B/D/F/H Series engines, this throttle body maximizes airflow for increased horsepower and torque. Ideal for use with Skunk2's Pro Series Intake Manifolds and other aftermarket options.
- Precision Die-Cast Aluminum
- Fine Shot-Blasted Surface Finish
- Precision Machined Brass Throttle Plate
- Compatible with OEM Throttle Cable
- Sealed Ball Bearings for Smooth Operation
- Includes New Throttle Body Gasket and Hardware
- Idle Adjustment Screws for Fine Tuning
Skunk2 is proud to introduce the 70mm Alpha Series Throttle Body for Honda B16/ B17/ B18/ B20/ D15/ D16/ F20/ F22/ F23/ H22 and H23 engines in its exclusive, fine shot-blasted surface finish. Skunk2's Alpha Series Throttle Body is designed to be used with Skunk2's Pro Series Intake Manifolds as well as OEM and other aftermarket intake manifolds for bolt-on horsepower and torque gains by maximizing engine airflow, all at a competitive price.
A larger throttle body is key to producing additional power throughout the powerband on modified engines with increased airflow demands and the Skunk2's 70mm Alpha Series Throttle Body delivers! Sealed ball bearings, a precision machined throttle plate and a honed oversized bore insures smooth operation on the most aggressive naturally aspirated and forced induction applications.
Features:
- Precision Die-Cast Aluminum
- Fine Shot-Blasted Surface Finish
- Precision Machined Brass Throttle Plate
- Compatible w/ OEM Throttle Cable
- Sealed Ball Bearings for Smooth Operation
- New Throttle Body Gasket and Hardware
- Idle Adjustment Screws for Fine Tuning
- For Instructions CLICK HERE
- Honda Accord (2.4L DX/LX/EX/SE) 1990-1997
- Honda Civic (1.6L DX/EX/GX/HX/LX/Si) 1992 - 2000
- Honda Del Sol (1.6L S/Si/VTEC) 1993 - 1997
- Honda Prelude (2.2L Base/Type SH) 1992 - 2001
- Honda S2000 (2.2L F22C) 2000 - 2009
- Acura Integra (1.8L GS/GS-R/LS/Type R) 1990 - 2001
- Throttle Body requires proper TPS adjustment after install. Tune is needed for optimal results. Professional installation recommended.
- Due to Larger Diameter... You Must Use A Skunk2 Pro Series Intake Manifold or Make Adjustments to Intake Manifold Throttle Body Flange to Match Bore and Keep IAC (Idle Air Control) Passage Separate. Not compatible with B18C GS-R intake manifold. Not compatible with D Series engines featuring down-flow intake manifolds. Manual Transmission Only.
| Brand | Skunk2 |
|---|---|
| upc | 873265004331 |
