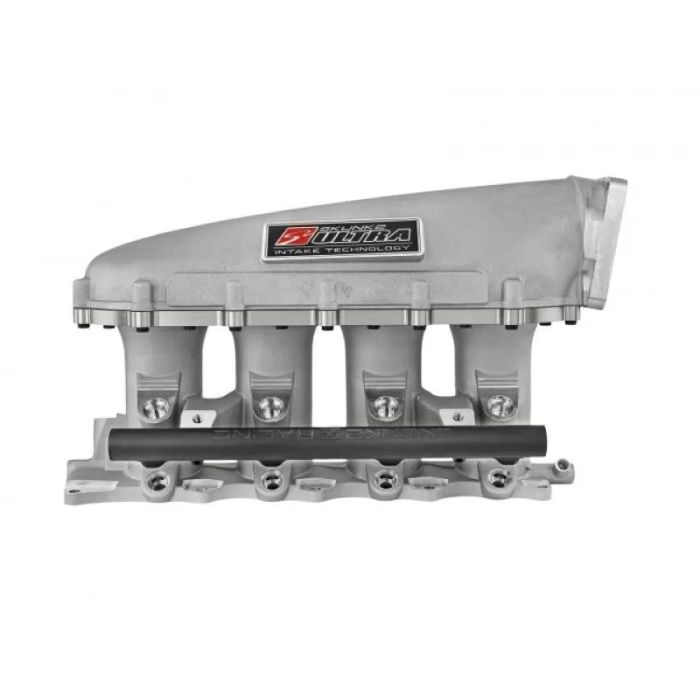

Skunk2 Honda and Acura Ultra Series Race Manifold F20/22C Engines - 307-05-9100
Elevate your Honda S2000's performance with the Skunk2 Ultra Race Intake Manifold, designed for F20C/F22C engines (2000-2009). Engineered with cutting-edge CFD technology, this manifold offers superior airflow and power gains.
- Modular 3-piece design with removable plenum
- 3.5L plenum volume
- 90mm throttle body flange
- Tapered high-velocity runners
- Raised 87mm velocity stacks
- Generous runner walls for porting
- Secondary fuel rail & injector provisions
- Multiple NPT accessory ports
- High-grade mounting hardware
- Thermal gasket included
Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the 2000-2009 S2000 F20C and F22C have finally arrived!
The much anticipated Ultra Race Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
Features:
- Modular 3pc. Design w/ Removable Plenum
- 3.5L Plenum Volume
- 90mm Throttle Body Flange - Std. 5.0L Ford Pattern
- Tapered Hi-Velocity Runners
- Raised 87mm Velocity Stacks
- Generously Cast Runner Walls for Porting
- Provisions Secondary Fuel Rail & Injectors
- 4 x 1/8" NPT, 3 x 1/4" NPT, and 1 x 3/8" NPT Accessory Ports
- Hi-Grade Mounting Hardware
- Thermal Gasket Included
- Optional Billet Aluminum Plenum Spacers Available in 1L or 2L Sizes
- The F20C/ F22C Ultra Intake Manifold is a competition product and does not have provisions for Idle Air Control. A throttle body or throttle body adapter will be required
- 3.5 Liter > High Horsepower N/A and Forced Induction Applications to 600HP
- 4.5 Liter > 600-1000HP
- 5.5 Liter > 1,000HP Up
- US Patent: D677700
| Brand | Skunk2 |
|---|---|
| upc | 873265007882 |
