Ticon Industries 1.5in/1.625in/1.75in/1.88in OD Sequence Manufacturing Elbow Cutting Fixture - 903-03002-5000
This Item has limited quantity. Request Quote for item availability.
Please Request Quote for stock status

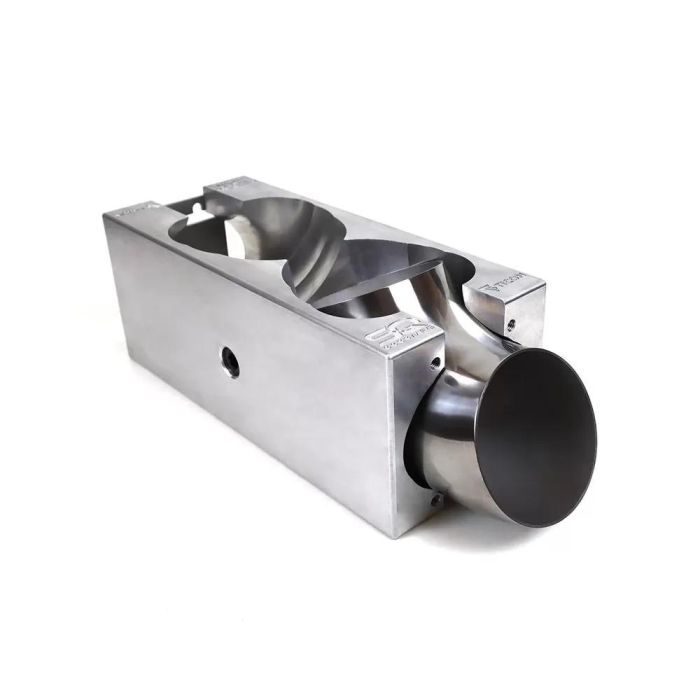

The Ticon Industries Elbow Cutting Fixture revolutionizes tubing fabrication. Designed for 1.5", 1.625", 1.75", and 1.88" stainless and titanium pipe elbows, it ensures precision and efficiency. - Cuts on both 1D and 1.5D center line radius - Compatible with vertical and horizontal bandsaws - Eliminates the need for stacking or tack welding - Ensures perfect tangent cuts every time - Ideal for both one-off and production work - Simplifies cutting of thin and thick wall materials, especially titanium
Ticon Industries has teamed up with Sequence Manufacturing to offer an entirely new way to cut tubing elbows eliminating the most frustrating part of the fabrication process. Each elbow cutting jig cuts 1.5", 1.625", 1.75" and 1.88" stainless and titanium pipe elbows on both a 1D (tight) and 1.5D (loose) center line radius.
A few key features of the elbow cutting jig include:
- Safely hold elbows to cut in multiple saw configurations (vertical or horizontal bandsaws for example). There is no longer a need to stack multiple pieces of tube into the saw vice to hold the tube. One no longer needs to tack weld pieces together to stabilize the tubing for a cut saving tons of time and money.
- The jig positions the elbow so that the saw blade cuts perfectly on the tangent of the bend which eliminates odd, off-tangent cuts.
- You can easily mark tubing where you want to make the cut when building one off parts, or you can use a protractor to duplicate the same cut over and over for production work.
- Jig makes cutting all thin wall and thick wall material significantly easier, but especially makes cutting titanium far easier than ever imagined
| Brand | Ticon Industries |
|---|
