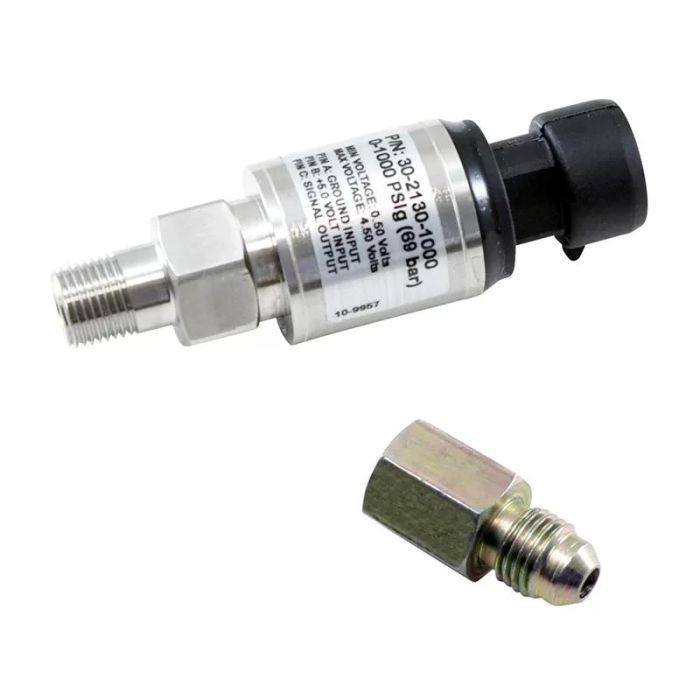

AEM 1000 PSIg Stainless Sensor Kit - 1/8in NPT Male Thread to -4 Adapter - 30-2130-1000

AEM offers several sensor and Plug & Pin connector kits for vehicles that require additional outputs and/or upgraded hardware over existing sensors. Available sensors include boost/backpressure sensors, exhaust gas temperature (EGT) sensors, nitrous oxide/brake pressure sensors, UEGO replacement sensors, inlet air temp sensors (IAT), K-Type sensors and more. Most sensors come with a mating connector and pins for ease of installation.

Features:

• 1000 PSIg Stainless Steel Sensor KitStainless Steel Sensor Body1/8 NPT Male ThreadIncludes: 1000 PSIg Stainless Steel Sensor, Connector, Pins & 1/8 NPT to -4 Adapter.Sensor Performance Specifications: Accuracy: +/- 1% Full Scale over -40C to 105C includes Repeatability, Hysteresis and Linearity Operating Temp: -40C to 105C / -40F to 221FBurst Pressure: 10,000PSI Response Time: < 1mS Wetted Materials: 304L & 316L Stainless Steel Vibration: 100 to 2000Hz, 20g Sinusoidal, 3 AxesWeight: <85g Supply Current: <6mA at 5 VdcOutput: .5 to 4.5Vdc LinearTransfer Function: PSI = (250*(Voltage))-125Elec. Termination: Integral weatherproof connector, includes mating connector & pins(Supply Voltage 5Vdc +/- .5, Ground, Output)

• Universal

• Instruction Manual
• Voltage Output
