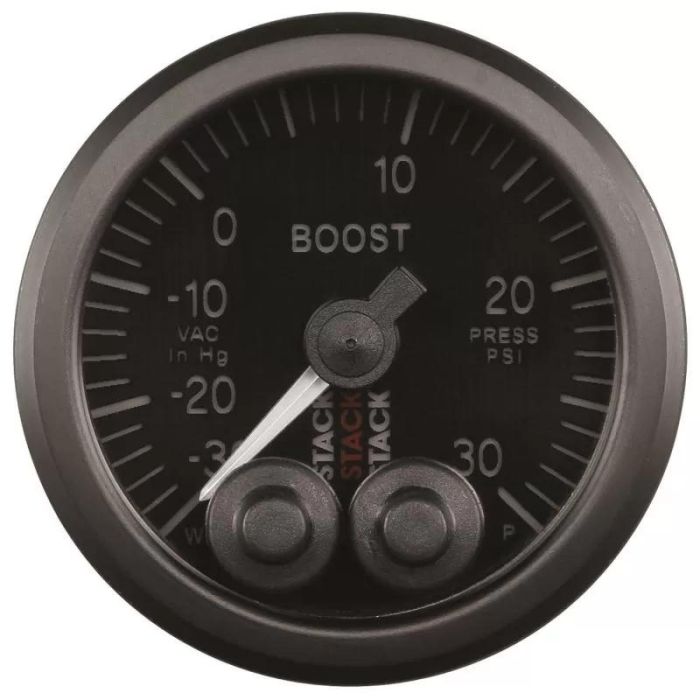

Autometer Stack Instruments 52mm -30INHG To +30PSI Pro Control Boost Pressure Gauge - Black - ST3512
User-configurable minimum and maximum alarms can be set, with one of seven different colors assigned to each. As soon as an alarm level is exceeded, the full dial face changes color. If the level exceeds the alarm by more than 10 percent, the dial face flashes rapidly to further alert the driver. With a choice of 7 user-selectable LED backlighting colors red, green, yellow, blue, purple, turquoise and white the user can choose the optimum color for maximum visibility and readability of the gauge, day and night. The Pro-Controlature activates low and high outputs whenever the user-defined alarm levels are exceeded. Pro-Controltputs can be used to switch a relay to activate cooling fans, pumps, lamps, alarms, ignition kill etc. Press and hold the PEAK button to recall on the dial the highest temperature or lowest pressure or voltage since the memory was last reset. Precision Steppertor needle movements and solid-state sensors ensure better than 2 percent accuracy. All Stack 52mm Professional gauges come complete with wiring harness and associated solid-state sensor, except for Fuel Level and Battery Voltage gauges. Fast, smooth Steppertor needle drive. 270 degrees full sweep movement for excellent readability. Remotely mounted solid-state sensors keep hazardous fluids in the engine compartment.
Pro-Control Boost Pressure Gauge 2.0625 in. Black Dial Face White Pointer 7 User Selectable Colors LED Lighting Electric Digital Steppertor 30 IN HG/30 PSI
Features:
- Bezel Style: Stack
- Lighting Color: 7 User Selectable Colors
- Pointer Color: White
- Dial (Face Color): Black
- Size (in.): 2.0625
- Boost: 0-30 PSI
- Bezel Color: Black
- Lighting Type: LED
- User Can Choose The Optimum Color For Maximum Visibility
- 270 degree Full Sweep Movement For Excellent Readability
- Once An Alarm Level Is Exceeded The Full Dial face Changes Colors
- The Pro Control Feature Activates Low And High Outputs
- Pro Control Outputs Can Be Used To Switch To Relay
- With A Choice Of 7 User Selectable LED Backlighting Colors
- w/One Of Seven Different Colors Assigned To Each
- Fast Smooth Steppertor Needle Drive
- User Configurable Minimum And Maximum Alarms Can Be Set
- Remotely Mounted Solid State Sensor Keep Hazardous Fluids
- Precision Steppertor Needle Movements And Solid State Sensors
- All Stack 52mm Professional Gauges Come Complete w/Wiring Harness
User-configurable minimum and maximum alarms can be set, with one of seven different colors assigned to each. As soon as an alarm level is exceeded, the full dial face changes color. If the level exceeds the alarm by more than 10 percent, the dial face flashes rapidly to further alert the driver. With a choice of 7 user-selectable LED backlighting colors red, green, yellow, blue, purple, turquoise and white the user can choose the optimum color for maximum visibility and readability of the gauge, day and night. The Pro-Controlature activates low and high outputs whenever the user-defined alarm levels are exceeded. Pro-Controltputs can be used to switch a relay to activate cooling fans, pumps, lamps, alarms, ignition kill etc. Press and hold the PEAK button to recall on the dial the highest temperature or lowest pressure or voltage since the memory was last reset. Precision Steppertor needle movements and solid-state sensors ensure better than 2 percent accuracy. All Stack 52mm Professional gauges come complete with wiring harness and associated solid-state sensor, except for Fuel Level and Battery Voltage gauges. Fast, smooth Steppertor needle drive. 270 degrees full sweep movement for excellent readability. Remotely mounted solid-state sensors keep hazardous fluids in the engine compartment.
Pro-Control Boost Pressure Gauge 2.0625 in. Black Dial Face White Pointer 7 User Selectable Colors LED Lighting Electric Digital Steppertor 30 IN HG/30 PSI
Features:
- Bezel Style: Stack
- Lighting Color: 7 User Selectable Colors
- Pointer Color: White
- Dial (Face Color): Black
- Size (in.): 2.0625
- Boost: 0-30 PSI
- Bezel Color: Black
- Lighting Type: LED
- User Can Choose The Optimum Color For Maximum Visibility
- 270 degree Full Sweep Movement For Excellent Readability
- Once An Alarm Level Is Exceeded The Full Dial face Changes Colors
- The Pro Control Feature Activates Low And High Outputs
- Pro Control Outputs Can Be Used To Switch To Relay
- With A Choice Of 7 User Selectable LED Backlighting Colors
- w/One Of Seven Different Colors Assigned To Each
- Fast Smooth Steppertor Needle Drive
- User Configurable Minimum And Maximum Alarms Can Be Set
- Remotely Mounted Solid State Sensor Keep Hazardous Fluids
- Precision Steppertor Needle Movements And Solid State Sensors
- All Stack 52mm Professional Gauges Come Complete w/Wiring Harness
| Brand | Autometer |
|---|---|
| upc | 046074141942 |
