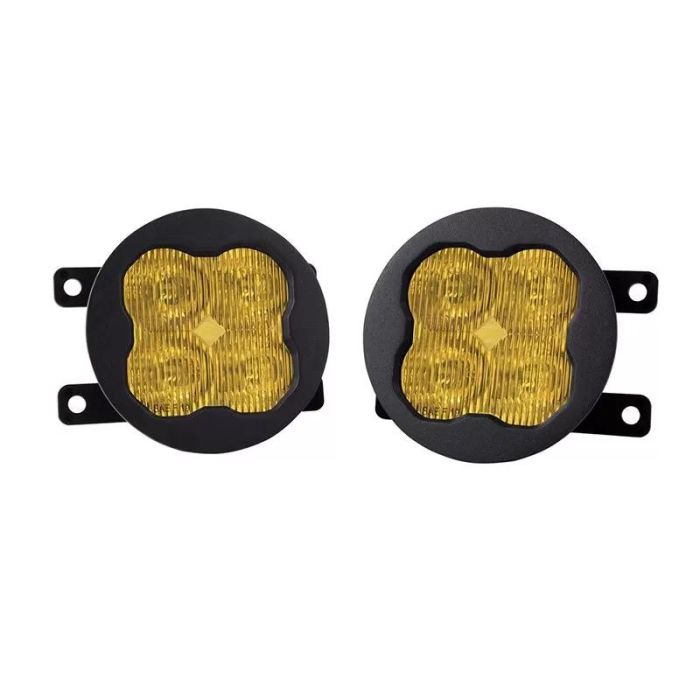

Diode Dynamics SS3 Max Type A Kit ABL - Yellow SAE Fog - DD6986

Overview.??Upgrade your fog lights with our SS3 Type A Fog Light Bracket Kit! Featuring higher output intensity than any other 3??? light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package. With the included round bezel, the SS3 Fog Kit has a clean, factory-style appearance, only much brighter!

Plug and Play.??Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed!

Focused.??Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

SAE Compliant.??All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

SAE Driving??is designed to supplement your high beams, but it???s great for general illumination as well. Rather than a traditional 'spot' pattern, the Stage Series Driving pattern shines in an 18x8 degree spread, providing just enough width to fully illuminate the road ahead at high speeds.

SAE Fog??provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.

When installed as a pair and aimed in accordance with your state's regulations, the Driving White pattern meets SAE J581 standard as a Driving/Auxiliary High Beam Light, and the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

Backlight Functionality.??The Stage Series 3' LED Pod is now available with a distinctive backlight, in a brilliant amber color. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

Note:??If you are upgrading your SS3 Pods to Backlit SS3 Pods, you will need to purchase a??2-pin to 4-pin wire tap kit in order to connect your existing 2-pin harness to your new backlit SS3 Pods.

White or Yellow.??All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool??white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road.

Sport, Pro, or Max.??Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs, and is the best bang for the buck you???ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you???re looking for the absolute best in lighting performance, the SS3 Max is the answer.

Proven Reliability.??Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience.??After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble??and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions.

Features

• Advanced TIR optics provide high efficiency and focus
• SAE-compliant road-legal output
• Includes round bezel, for factory-style appearance
• Plug and play, no modification needed
• Durable powdercoated aluminum extrusion
• Engineered and Assembled??in USA

• Power (watts):??Sport: 14.5, Pro: 36, Max: 38.5
• Current (amps @ 13.2V):??Sport: 1.1, Pro: 2.7, Max: 3
• Polarity:??Polarity Specific
• Operating Temperature:??-40C to 85C (-40F to 185F)
• LED Emitter:??Luxeon Z ES, Cree XP-L HI, Osram Boost HX
• Connector(s):??Deutsch DT Input
• Driver Features:??Constant Current
• Materials:??Polycarbonate Lens, Aluminum Casting, Rubber Gasket
• Cooling:??Passive, Pin-Fin heatsink
• Compliance Ratings:??SAE J575 Durability Test
• Intrusion Ratings:??IP69K Waterproof, High Pressure

• Acura ILX 2013-2018
• Acura RDX 2013-2018
• Acura TL 2012-2014
• Acura TSX 2011-2013
• Ford Fiesta ST 2014-2019
• Ford Fusion 2013-2016
• Ford Mustang 2006-2009
• Ford Mustang 2015-2017
• Ford Ranger 2004-2007
• Fiat 500 2012-2016
• Honda Accord 2013-2015
• Honda Civic 2016-2021
• Honda Crosstour 2013-2015
• Honda CR-V 2012-2014
• Honda CR-Z 2013-2016
• Honda Fit 2015-2017
• Honda Insight 2010-2014
• Honda Odyssey 2019-2020
• Honda Pilot 2012-2019
• Nissan Frontier 2009-2021
• Nissan Sentra 2007-2012
• Nissan Titan 2017-2019
• Nissan Xterra 2005-2015
• Scion FR-S 2013-2016
• Subaru BRZ 2013-2017
• Subaru Crosstrek 2016-2022
• Subaru Forester 2014-2022
• Subaru Impreza 2012-2014
• Subaru Impreza (w/ Eyesight Package) 2015-2022
• Subaru Legacy 2010-2014
• Subaru Legacy 2018-2021
• Subaru Outback 20110-2012
• Subaru WRX 2015-2021
• Subaru WRX STi 2015-2017

• Two (2) SS3 3??? Round LED Pods
• Two (2) Type A brackets
• Two (2) H11 2-pin DT adapters
• One (1) H11 4-pin DT backlight tap wire kit
• Mounting hardware
• Mounting guide
