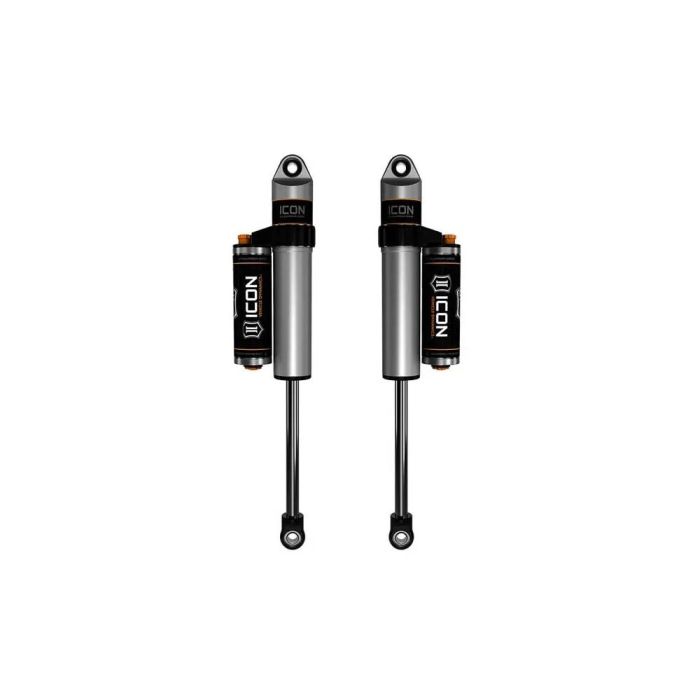

ICON 07-18 GM 1500 0-1.5in Rear 2.5 Series Shocks VS PB CDCV - Pair - 77700CP

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. The ICON CDC Valve is an externally adjustable valve that restricts oil flow into the reservoir which creates 10 levels of compression damping force ranges.

View Installation Instructions

Features:

• ICON's CDC Valve technology allows for 10 levels of high-resolution compression adjustability with the turn of a knob
• ICON's internal "Bump Zone" increases damping by 20% to provide more control as the shock approaches full compression
• Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
• Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
• Nitrogen charged monotube design with piggyback reservoir
• One piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
• 7/8" diameter induction hardened, chrome plated shock shaft
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 aircraft grade aluminum CNC machined components
• One-piece impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
• 100% Rebuildable
• 100% Revalveable

• Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
• Adjustable: Yes
• Boot Included: NO
• Bore Diameter: 2.25 IN
• Cylinder Color: Silver
• Cylinder Material: Aluminum
• External Reservoir: Yes
• Gas Charged: Yes
• Grade Type: Performance
• Lower Mount Type: EYELET
• Mounting Hardware Included: Yes
• Service Parts: 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
• Service Parts: 257339 - 7/8 SHAFT 13.25 OAL, 9.00 TRAVEL
• Service Parts: 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL
• Service Parts: 252001 - 2.5 FIXED SPANNER WRENCH
• Service Parts: 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
• Service Parts: 252003 - SEAL INSTALL TOOL 2.5/3.0
• Service Parts: 191016 - 7.5" FINNED RESI UPGRADE KIT
• Shaft Diameter: 0.875 IN
• Shaft Material: Chrome
• Shock Absorber Body End Measuring Point: Center of Eylet
• Shock Absorber Rod End Measuring Point: Center of Eylet
• Tube Outside Diameter: 2.5 IN
• Upper Mount Type: EYELET

• Compatible With 0-1.5" Of Rear Lift On Most Models
• May Require Slight Modifications To Rear Shock Absorber Mounts
• Not Compatible With Models Equipped Magnetic Ride Control
• Not Recommended For Hybrid Models

• Chevrolet Silverado 1500 LD Custom 2019-2019
• Chevrolet Silverado 1500 LD WT 2019-2019
• Chevrolet Silverado 1500 LD LT 2019-2019
• Chevrolet Silverado 1500 WT 2007-2018
• Chevrolet Silverado 1500 LT 2007-2018
• Chevrolet Silverado 1500 LTZ 2007-2018
• Chevrolet Silverado 1500 LS 2007-2018
• Chevrolet Silverado 1500 Base 2007-2016
• Chevrolet Silverado 1500 XFE 2010-2013
• Chevrolet Silverado 1500 High Country 2014-2018
• Chevrolet Silverado 1500 SSV 2015-2018
• Chevrolet Silverado 1500 Custom 2016-2018
• GMC Sierra 1500 Limited Base 2019-2019
• GMC Sierra 1500 Limited SLE 2019-2019
• GMC Sierra 1500 SLE 2007-2018
• GMC Sierra 1500 SLT 2007-2018
• GMC Sierra 1500 Denali 2007-2013
• GMC Sierra 1500 SL 2007-2013
• GMC Sierra 1500 WT 2007-2013
• GMC Sierra 1500 XFE 2010-2013
