ICON 09-18 Ram 1500 4WD .75-2.5in Stage 5 Suspension System - K213005
ICON 09-18 Ram 1500 4WD .75-2.5in Stage 5 Suspension System - K213005
Elevate your driving experience with the ICON 09-18 Ram 1500 4WD .75-2.5in Stage 5 Suspension System - K213005. Designed for those who demand superior performance and comfort, this advanced suspension system transforms your Ram 1500 into a powerhouse of capability and control. Whether you're navigating rugged terrains or cruising on highways, this system ensures a smooth and responsive ride.
- Adjustable Ride Height: Customize your vehicle's stance with a lift range of 0.75 to 2.5 inches, allowing for larger tires and improved ground clearance.
- Enhanced Stability: Experience reduced body roll and improved handling, thanks to the precision-engineered components that keep your vehicle stable even on challenging surfaces.
- Durable Construction: Built with high-quality materials, this suspension system is designed to withstand the toughest conditions, ensuring long-lasting performance.
- Improved Comfort: Enjoy a smoother ride with advanced shock absorbers that absorb impacts and vibrations, providing a comfortable driving experience on and off the road.
- Easy Installation: Designed for straightforward installation, this system comes with all necessary components and detailed instructions, making it accessible for both professionals and DIY enthusiasts.
Upgrade your Ram 1500 with the ICON Stage 5 Suspension System and experience the perfect blend of performance, durability, and comfort. Whether you're an off-road enthusiast or simply looking to enhance your daily drive, this system delivers unmatched quality and reliability.

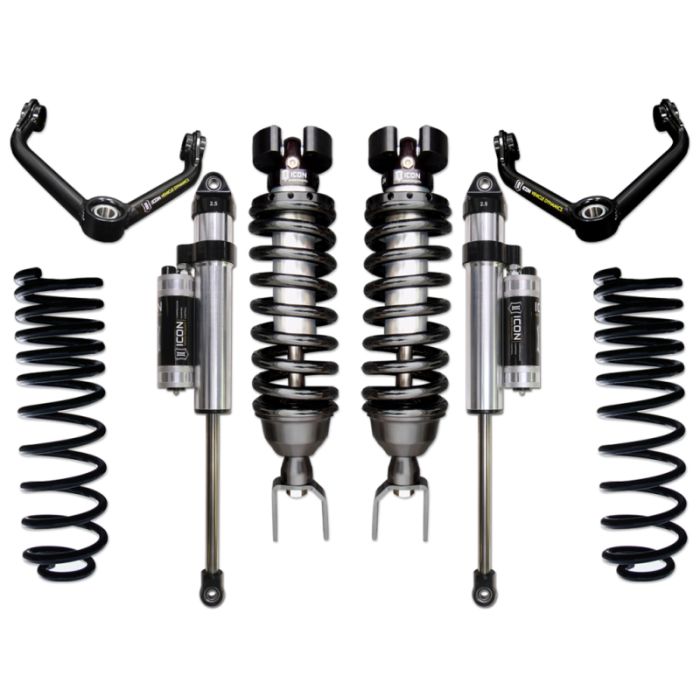

ICON Vehicle Dynamics Dodge Ram 1500 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This system includes vehicle-specific tuned 2.5" coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle feel" through the range of travel. These coilovers are also height adjustable from .75-2.5" allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.5 Aluminum Series rear shocks with CDC Valve utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2009-2018 Dodge Ram 1500 4WD Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.
View Installation Instructions
Features:
- Increased wheel travel and ride quality over stock with no change in towing capacity
- Vehicle specific tuned front and rear shocks for superior shock damping and control
- ICON CDC Valve allows quick and easy end-user adjustability
- Adjustable coilovers from .75-2.5" of lift height
- 6061 Aircraft grade aluminum CNC machined components
- Corrosion resistant CAD plated coilover shock body with 7/8" shaft
- 2.5 Aluminum Series rear shocks with CDCV
- FK rod end bearings for extended longevity and minimal deflection
- 100% Bolt-on system - no drilling, cutting, or welding necessary for install
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
- Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
- Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
- Bushings Included: Yes
- Coil Spring End 1 Type: Open
- Coil Spring End 2 Type: Open
- Coils Quantity Front: 2
- Coils Quantity Rear: 2
- Grade Type: Performance
- Maximum Lift: 2.5 IN
- Mounting Hardware Included: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required)
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" BS / 0mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
- Application Note #99: Air Bags Recommended With Performance Rear Springs If Vehicle Used For Towing
- Oem Wheels & Tires Fitment: Yes
- Ships In Multiple Boxes
- Compatible With 2019-2022 Ram 1500 Classic Models. Lift Height Range Is .75-2.5" Over Stock
- Not Compatible With Models Equipped With Oe Air Suspension
- Ram 1500 Big Horn 4WD 2011-2018
- Ram 1500 Laramie 4WD 2011-2018
- Ram 1500 Laramie Longhorn 4WD 2011-2018
- Ram 1500 Outdoorsman 4WD 2011-2018
- Ram 1500 SLT 4WD 2011-2018
- Ram 1500 ST 4WD 2011-2018
- Ram 1500 Sport 4WD 2011-2018
- Ram 1500 Tradesman 4WD 2011-2018
- Ram 1500 SXT 4WD 2011-2018
- Ram 1500 Express 4WD 2012-2018
- Ram 1500 Special Service 2014-2018
- Ram 1500 Lone Star 4WD 2014-2018
- Ram 1500 Laramie Limited 4WD 2014-2018
- Ram 1500 Classic Express 4WD 2019-2022
- Ram 1500 Classic SLT 4WD 2019-2022
- Ram 1500 Classic Special Service 2019-2022
- Ram 1500 Classic Tradesman 4WD 2019-2022
- Ram 1500 Classic Warlock 4WD 2019-2022
- Ram 1500 Classic ST 4WD 2019-2020
- Ram 1500 Classic Big Horn 4WD 2019-2019
- Ram 1500 Classic Laramie 4WD 2019-2019
- Ram 1500 Classic Lone Star 4WD 2019-2019
- Ram 1500 Classic SXT Plus 4WD 2019-2019
- Ram 1500 Classic Night Edition 4WD 2021-2021
- Dodge Ram 1500 Laramie 4WD 2009-2010
- Dodge Ram 1500 SLT 4WD 2009-2010
- Dodge Ram 1500 ST 4WD 2009-2010
- Dodge Ram 1500 TRX4 2009-2010
- Dodge Ram 1500 Sport 4WD 2009-2010
| Brand | Icon Vehicle Dynamics |
|---|
