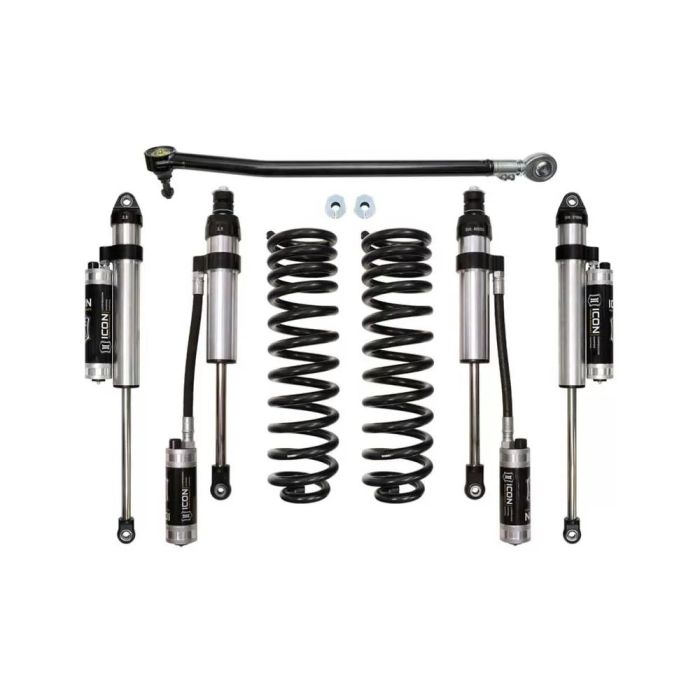

ICON 2017+ Ford F-250/F-350 2.5in Stage 4 Suspension System - K62514

This ICON Vehicle Dynamics 2.5" suspension system is a great way to level your 4WD 17-19 Ford F-250 | F-350 Super Duty while drastically improving ride quality and performance. The Stage 4 system is perfect for on-road and off-road use including towing, job site duty, and spirited off-road adventure. ICON's Stage 4 System combines dual rate coil springs, alignment cams, ICON CDC Valve 2.5 Aluminum Series front remote reservoir and rear piggyback reservoir shocks, and an all-new adjustable track bar designed specifically for the 2017-UP Super Duty. With the endless hours ICON has spent testing and tuning our suspension components and shocks as a complete package, you can be rest assured you have the best suspension solution on the market.

View Installation Instructions

Features:

• Fits 17-19 F250 / F350 4WD applications
• Lifetime guarantee against coil spring breakage or sag
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect
• Approximately 25% increased front wheel travel over stock
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• ICON CDC Valve allows quick and easy end user compression adjustability
• Shocks are fully rebuildable and revalvable
• Corrosion resistant anodized aluminum shock bodies with 7/8" shafts (2.5 Aluminum Series shocks)
• FK Rod End bearings provide extended longevity and minimal deflection

• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 61111 - 17-UP FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT
• Add-On Part: 64039 - 08-UP FSD TRACK BAR BUMP STEER BRACKET KIT
• Bushings Included: Yes
• Coils Quantity Front: 2
• Dual Rate Coil Springs: Yes
• Grade Type: Performance
• Maximum Lift: 2.5 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25" Backspace / 6mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Rare Cases Require A 2.6 Degree Alignment Cam On One Side Of Vehicle For Proper Caster Split
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Springs Are Rated For Diesel Engines Only
• Oem Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes
• Brake Line Kit (Part # 61111) Is Optional For End Users Who Do Not Want To Bend The Factory Steel Lines Or Are Looking For A Braided Stainless Upgrade (Not Necessary For Complete Install)
• Included Rear Shocks Are Compatible With 0-3" Of Rear Lift Over Stock

• Ford F-250 Super Duty XL 4WD 17-2019
• Ford F-250 Super Duty XLT 4WD 17-2019
• Ford F-250 Super Duty Lariat 4WD 17-2019
• Ford F-250 Super Duty King Ranch 4WD 17-2019
• Ford F-250 Super Duty Platinum 17-2019
• Ford F-250 Super Duty Limited 2018-2019
• Ford F-350 Super Duty XL 4WD 17-2019
• Ford F-350 Super Duty XLT 4WD 17-2019
• Ford F-350 Super Duty Lariat 4WD 17-2019
• Ford F-350 Super Duty King Ranch 4WD 17-2019
• Ford F-350 Super Duty Platinum 4WD 17-2019
• Ford F-350 Super Duty Limited 2018-2019
