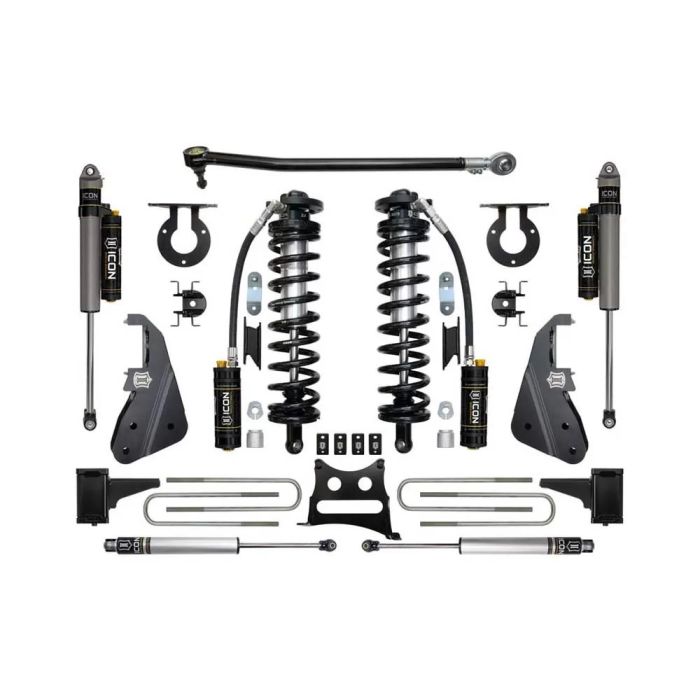

ICON 2017+ Ford F-250/F-350 4-5.5in Stage 4 Coilover Conversion System - K63154

Designed to provide a height-adjustable option to the extremely popular ICON Vehicle Dynamics 4.5" Ford Super Duty Suspension Systems, these coilover conversions provide excellent on-road ride quality and off-road performance while at the same time allowing for end-user ride height adjustability.

View Installation Instructions

Features:

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers provide 4-5.5" or 4.75-6.25" of lift, depending on year model of truck
• Increased wheel travel and ride quality over stock
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• Eibach coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection
• Rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 64039 - 08-UP FSD TRACK BAR BUMP STEER BRACKET KIT
• Add-On Part: 61110 - 17-UP FSD FRONT 4.5 & 7" EXTENDED SS BRAKE LINE KIT
• Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
• Bushings Included: NO
• Coils Quantity Front: 2
• Grade Type: Performance
• Maximum Lift: 5.5 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25" Backspace / 6mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Secondary Shock Options Available, Contact Us For More Details
• 7" Systems Using A 4-Link In Place Of The Factory Radius Arms Do Not Require The Use Of Alignment Cams. Caster Can Be Adjusted By The Lower Link Arms.
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Springs Are Rated For Diesel Engines Only
• Application Note #8: This System May Require A Carrier Bearing Drop Bracket Kit (33700)
• Application Note #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
• Oem Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes
• 17-19 Super Duty Models Will Have Front Lift Height Range Of 4-5.5 Over Stock
• 2020-2022 Super Duty Models Equipped With Tremor Package Will Have Front Lift Height Range Of 3.75-5.25" Over Stock
• 2020-2022 Super Duty Models Without Tremor Package Will Have Front Lift Height Range Of 4.75-6.25" Over Stock
• 2020-Up Super Duty Models Have A Lower Ride Height From The Factory Than 17-19 Trucks. This Results In An Increase Of Approximately .75" Of Additional Lift Height Over Icon'S Advertised Numbers.
• Brake Line Kit (Part # 61110) Is Optional For End Users Who Do Not Want To Bend The Factory Steel Lines Or Are Looking For A Braided Stainless Upgrade (Not Necessary For Complete Install)
• Track Bar Bracket Part Number 64039 Is Optional, But Recommended To Correct Steering Geometry.

• Ford F-250 Super Duty XL 4WD 17-22
• Ford F-250 Super Duty Lariat 4WD 17-22
• Ford F-250 Super Duty King Ranch 4WD 17-22
• Ford F-250 Super Duty Platinum 17-22
• Ford F-250 Super Duty XLT 4WD 17-22
• Ford F-250 Super Duty Limited 2018-2022
• Ford F-350 Super Duty XLT 4WD 17-22
• Ford F-350 Super Duty XL 4WD 17-22
• Ford F-350 Super Duty Lariat 4WD 17-22
• Ford F-350 Super Duty King Ranch 4WD 17-22
• Ford F-350 Super Duty Platinum 4WD 17-22
• Ford F-350 Super Duty Limited 2018-2022
