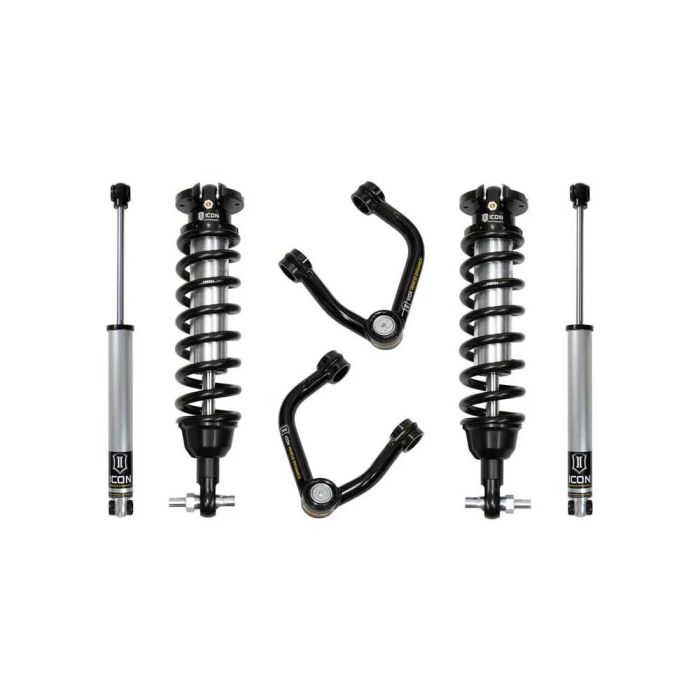

ICON 19-21 Ford Ranger 0-3.5in Stage 2 Suspension System w/ Tubular UCA Alum Knuckle - K93202TA

ICON Vehicle Dynamics 2019-2021 Ford Ranger suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the new Ranger platform's suspension and addressed any areas where performance could be extracted. The Stage 2 (Tubular) system includes vehicle-specific tuned, extended travel 2.5 Series coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered coil springs for superior vehicle feel" through the range of travel. These coilovers are also height adjustable from 0-3.5" allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2019-2021 Ford Ranger Stage 2 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

View Installation Instructions

Features:

• Height-adjustable coilovers provide a range of 0-3.5" of front lift height
• Fits 2WD & 4WD applications
• Increased lift height allows for fitment of larger and more aggressive tires
• 35% increase in front wheel travel over stock
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
• Corrosion resistant CAD plated shock body with 7/8" shaft (2.5 Series coilovers)
• FK Rod End bearings provide extended longevity and minimal deflection
• Shocks are fully rebuildable and revalvable
• ICON upper control arms allow for additional wheel travel (when paired with extended travel coilovers) while improving suspension geometry for predictable handling
• Patented Delta Joint (U.S. Pat. 10,731,700) combines the durability and weather resistance of a ball joint with the performance characteristics of a uniball
• Delta Joint ball joints carry ICON's exclusive 5 year limited warranty
• Direct bolt-in design makes for a simple and straightforward installation
• Lifetime guarantee against ICON fabricated component and coil spring breakage or manufacturer defect

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
• Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
• Add-On Part: 191205 - UNIVERSAL FOAM BUMP STOP KIT
• Bushings Included: Yes
• Coils Quantity Front: 2
• Front Spring Rate Type: Linear
• Grade Type: Performance
• Maximum Lift Front: 3.5 IN
• Minimum Lift Front: 0 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: Recommended Aftermarket Tires: 33"x11.25" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Recommended Aftermarket Wheels: Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 6.00" Backspace / 25mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Minor Trimming Required For Recommended Tire Size
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Factory Wheels & Tires Fitment: Yes
• Compatible With 2019-2021 Rangers Equipped With Aluminum Knuckles Only
• Not Compatible With Ranger Raptor.
• Ranger Xlt Or Lariat Models Equipped With Tremor Package Have Front Lift Height Range Of 0-2.5" Over Stock.

• Ford Ranger XL 2019-2021
• Ford Ranger XLT 2019-2021
• Ford Ranger Lariat 2019-2021
• Ford Ranger XLT Plus 2021-2021
