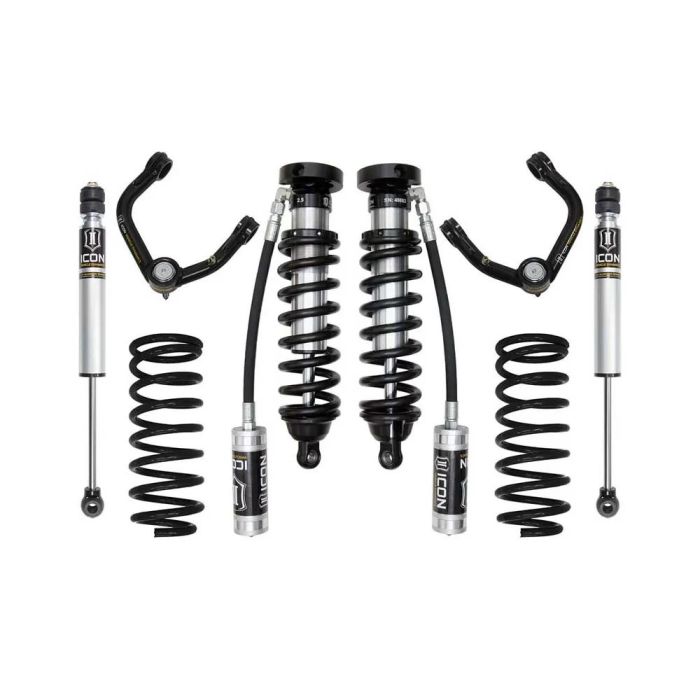

ICON 96-02 Toyota 4Runner 0-3in Stage 3 Suspension System - K53133

The 1996-2002 Toyota 4Runner was an excellent vehicle off the showroom floor over a decade ago, and Toyota's reputation for reliability and performance continues to draw the attention of both hardcore off-road enthusiasts and newcomers to the 3rd Gen" platform to this day. ICON engineers have assessed the 3rd Gen 4Runner front to back and developed components that work together to extract maximum performance out of the vehicle. With the ICON Stage 3 suspension system on and off-road performance is significantly improved with 2.5 VS Series Extended Travel Remote Reservoir Coilovers and 2.0 Aluminum Series rear shocks that feature ICON engineered coil springs, vehicle-specific shock valving, FK Rod End bearings, and high-quality CNC-machined components for superior damping and control. The 2.5 VS Series coilovers are height adjustable from 0-3" of lift, allowing the use of larger, more aggressive wheel and tire combinations. Fully serviceable shock absorbers mean that these components can be rebuilt or re-valved as necessary, providing a long service life and the ability to customize the ride quality for unique vehicle setups. The addition of an ICON tubular steel upper control arm kit provides increased wheel travel over stock while also offering alignment correction for improved overall handling. ICON engineered rear coil springs increase rear suspension performance while also providing 1" of rear end lift. ICON Vehicle Dynamics' 1996-2002 4Runner Stage 3 suspension system is an excellent choice for those drivers looking to drastically improve the performance and handling characteristics of their 3rd Gen on the road as well as in the dirt.

View Installation Instructions

Features:

• Increased wheel travel and ride quality over stock
• Bolt-on design makes for straightforward install
• Decreased body roll
• Vehicle-specific tuned front and rear shocks provide superior damping and control
• Coilovers are adjustable from 0-3" of lift height
• Shocks are fully rebuildable and revalveable
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• FK Rod End bearings for extended longevity and minimal deflection
• CNC machined 6061 aircraft-grade aluminum components
• ICON engineered rear coils provide 1" of lift and improved performance
• Tubular steel upper control arms feature ICON Delta Joints

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
• Add-On Part: 614700 - 2.0 SHOCK BOOT KIT (EACH)
• Bushings Included: Yes
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Grade Type: Performance
• Maximum Lift: 3 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.25" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Spring Rate: 650 PPI

• Bump Stop Spacer Kit Available That Can Be Installed To Increase Threads Showing Beyond Max Recommendation.
• Remote Reservoir Mounting Brackets May Interfere With Aftermarket Bumper Mounts / Windshield Washer Bottles.
• 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Oem Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes

• Toyota 4Runner 1996-2002
