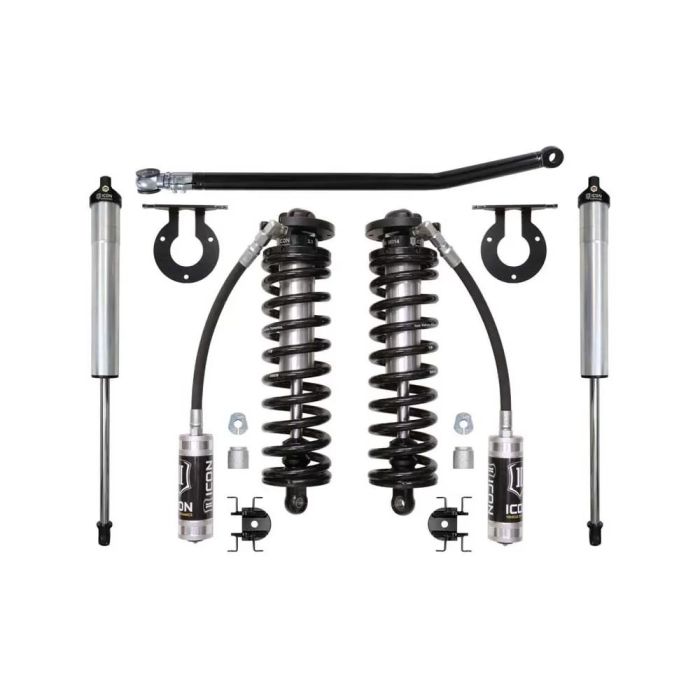

ICON 05-16 Ford F-250/F-350 2.5-3in Stage 2 Coilover Conversion System - K63102

ICON's 2.5 VS Series Remote Reservoir Bolt-In Coilover Conversion Kit will add a new level of performance and adjustability to 2005-2016 F-250 and F-350 trucks. The advantage of utilizing a coilover conversion kit is that they have been designed to increase the overall damping ability of the vehicle while at the same time allowing for user-defined ride height adjustment. The 2.5" Remote Reservoir Coilover featured in these kits is based off of ICON's 2.5 VS Series shock line - meaning that features like Eibach coil springs, FK Rod End bearings, and vehicle-specific valving come standard. Quality machined components and a fully serviceable design make for a product that will stand the test of time, yet retain the ability to be rebuilt or re-valved as necessary.

View Installation Instructions

Features:

• Bolt-in system fits in OE coil bucket location
• Ride height adjustable coilovers (2.5-3")
• Decreased body roll and improved on and off-road ride dynamics
• Vehicle-specific shock valving provides unparalleled ride quality and control
• Shocks are fully rebuildable and revalveable
• Coilover conversion allows for addition of secondary shock
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Eibach coil springs guaranteed for life against sagging or breakage
• FK Rod End bearings for extended longevity and minimal deflection

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 64039 - 08-UP FSD TRACK BAR BUMP STEER BRACKET KIT
• Add-On Part: 65000 - 05-UP FSD DUAL STABILIZER KIT
• Bushings Included: Yes
• Coils Quantity Front: 2
• Grade Type: Performance
• Maximum Lift: 3 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25" Backspace / 6mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Springs Are Rated For Diesel Engines Only
• Application Note #88: Removal Of The Coil Centering Cup In Factory Coil Bucket Required For Installation.
• Oem Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes
• 2005-2016 F-250S Require 4" Rear Blocks With 15" U-Bolt Kit To Sit Level With 2.5" Lifted Front. Icon Block Kit Part # 194275 And U-Bolt Kit Part # 37003 (2005-2010 Models) Or Part # 67003 (2011-2016 Models) Are Recommended.

• Ford F-250 Super Duty 4WD 2005-2016
• Ford F-350 Super Duty 4WD 2005-2016
