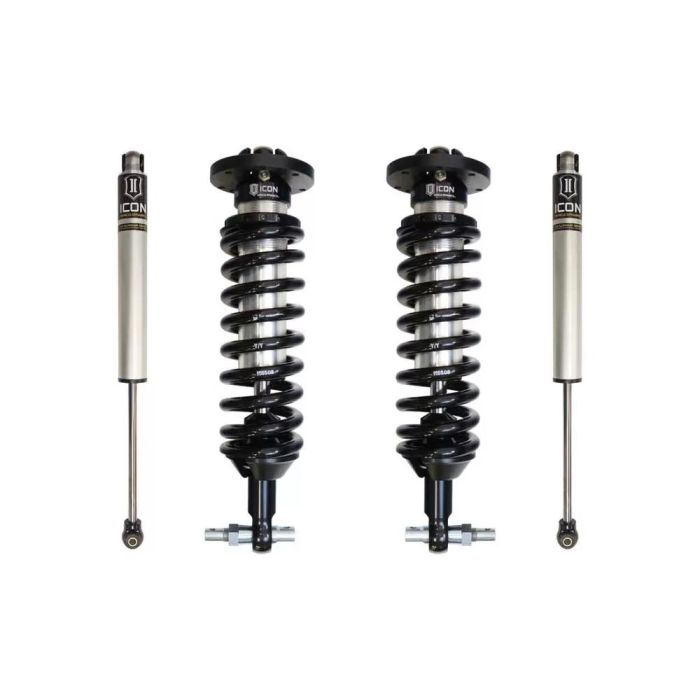

ICON 07-18 GM 1500 1-3in Stage 1 Suspension System - K73001

ICON Vehicle Dynamics 2007-2018 GM Silverado/Sierra 1500 suspension systems are designed to dramatically increase the on and off-road ride quality. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. With wheel travel and ride quality in mind, ICON engineers researched each component of the GM platform's suspension and addressed any areas where performance could be extracted. The Stage 1 system includes vehicle-specific tuned 2.5 coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle feel" through the range of travel. These coilovers are also height adjustable from 1-3" allowing the use of larger, more aggressive wheel and tire combinations. ICON 2.0 Aluminum Series monotube rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics GM Silverado/Sierra 1500 Stage 1 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

View Installation Instructions

Features:

• Fits 2WD and 4WD models
• Increased wheel travel and ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• Adjustable coilovers allow for f 1-3" of front lift height over stock
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• High strength alloy CNC machined lower bar pin
• FK rod end bearings for extended longevity and minimal deflection
• 2.0 Aluminum Series rear IFP shocks with 5/8" shock shafts

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Bushings Included: NO
• Grade Type: Performance
• Maximum Lift: 3 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Slight Modifications To Factory Shock Mounts May Be Required
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Application Note #83: Trimming Of The Upper Control Arm Stop Required Or Down Travel Will Be Limited By Upper Arm Stop
• Oem Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes
• Included Rear Shocks Are Compatible With 0-2" Of Rear Lift On Most Models
• Not Compatible With Models Equipped Magnetic Ride Control
• Not Recommended For Hybrid Models

• Chevrolet Suburban LT 2014-2020
• Chevrolet Suburban LS 2015-2020
• Chevrolet Suburban LTZ 2015-2016
• Chevrolet Suburban Premier 17-20
• Chevrolet Silverado 1500 LD Custom 2019-2019
• Chevrolet Silverado 1500 LD LT 2019-2019
• Chevrolet Silverado 1500 LD WT 2019-2019
• Chevrolet Silverado 1500 LT 2007-2020
• Chevrolet Silverado 1500 LTZ 2007-2018
• Chevrolet Silverado 1500 WT 2007-2018
• Chevrolet Silverado 1500 LS 2007-2018
• Chevrolet Silverado 1500 Base 2007-2016
• Chevrolet Silverado 1500 XFE 2010-2013
• Chevrolet Silverado 1500 High Country 2014-2018
• Chevrolet Silverado 1500 SSV 2015-2018
• Chevrolet Silverado 1500 Custom 2016-2018
• Chevrolet Suburban 1500 LS 2007-2014
• Chevrolet Suburban 1500 LT 2007-2014
• Chevrolet Suburban 1500 LTZ 2007-2014
• Chevrolet Suburban 1500 Base 2007-2012
• Chevrolet Suburban 1500 75 Aniversario Diamond Edition 2010-2010
• Chevrolet Tahoe LS 2007-2020
• Chevrolet Tahoe LT 2007-2020
• Chevrolet Tahoe LTZ 2007-2016
• Chevrolet Tahoe Base 2007-2012
• Chevrolet Tahoe Z71 2008-2017
• Chevrolet Tahoe PPV 2012-2020
• Chevrolet Tahoe SSV 2012-2020
• Chevrolet Tahoe Police 2014-2018
• Chevrolet Tahoe Premier 17-20
• Chevrolet Tahoe Midnight Edition 2018-2018
• GMC Yukon XL SLT 2015-2020
• GMC Yukon XL SLE 2015-2020
• GMC Sierra 1500 Limited Base 2019-2019
• GMC Sierra 1500 Limited SLE 2019-2019
• GMC Sierra 1500 SLE 2007-2018
• GMC Sierra 1500 SLT 2007-2018
• GMC Sierra 1500 Denali 2007-2014
• GMC Sierra 1500 SL 2007-2013
• GMC Sierra 1500 WT 2007-2013
• GMC Sierra 1500 XFE 2010-2013
• GMC Sierra 1500 Base 2014-2018
• GMC Yukon SLE 2007-2020
• GMC Yukon SLT 2007-2020
• GMC Yukon Denali 2007-2014
• GMC Yukon Base 2007-2012
• GMC Yukon XL 1500 Denali 2007-2014
• GMC Yukon XL 1500 SLE 2007-2014
• GMC Yukon XL 1500 SLT 2007-2014
