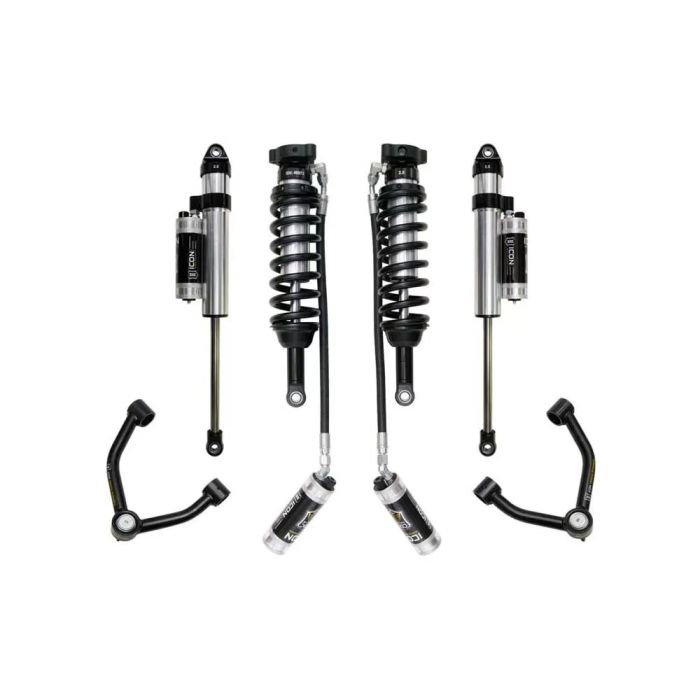

ICON 2015+ Chevrolet Colorado 1.75-3in Stage 5 Suspension System - K73055

ICON engineers' primary focus for the GM Colorado/Canyon was to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. Researching each component of the GM platform's suspension and addressing any areas where performance could be extracted, a 25% increase in overall wheel travel was achieved. The Stage 5 system provides a higher level of performance that will drastically improve overall on and off-road vehicle ride characteristics. ICON's Vehicle specific tuned 2.5" remote reservoir coilover shocks and ICON 2.5 Aluminum Series piggyback rear shocks w/ CDCV in this system provide exceptional cooling properties, with the coilovers utilizing ICON-engineered Eibach coil springs for superior vehicle feel" throughout the range of travel. Remote reservoirs front and rear ensure optimum performance by increasing the duration of consistent damping, keeping the shocks at a cooler operating temperature during extended off-road use. These 2.5" remote reservoir coilovers w/ CDCV are also height adjustable from 1.75-3" of lift over stock allowing the use of larger, more aggressive wheel and tire combinations when desired. The ICON Vehicle Dynamics 2015-UP GM Colorado/Canyon Stage 5 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road while also optimizing performance in the dirt.

View Installation Instructions

Features:

• Fits 2WD and 4WD models
• Compatible with diesel models
• 25% increase in wheel travel over stock
• Improved ride quality over stock with no change in towing capacity
• Vehicle specific tuned front and rear shocks for superior shock damping and control
• ICON CDCV equipped shocks for fully adjustable tuneability of your shocks
• Height-adjustable coilovers offer 1.75-3" of lift height
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts
• FK Rod End bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Tubular steel Delta Joint upper control arms
• 100% Bolt-on system - no drilling or welding necessary for install

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 252008 - 2.5 X 13 SHOCK BOOT BLACK (PAIR)
• Bushings Included: NO
• Grade Type: Performance
• Maximum Lift: 3 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 32" x 11.00" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Oem Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes
• Canyon At4 Trim Lift Height Range .75-2" Over Stock
• Not Compatible With Colorado Zr2 Trim

• Chevrolet Colorado 2015-2016
• Chevrolet Colorado Base 17-20
• Chevrolet Colorado LT 17-22
• Chevrolet Colorado Z71 17-22
• Chevrolet Colorado WT 17-22
• Chevrolet Colorado Z71 LT 2021-2021
• GMC Canyon 2015-2020
• GMC Canyon Denali 2021-2022
• GMC Canyon Elevation 2021-2022
• GMC Canyon Elevation Standard 2021-2022
• GMC Canyon AT4 2021-2022
