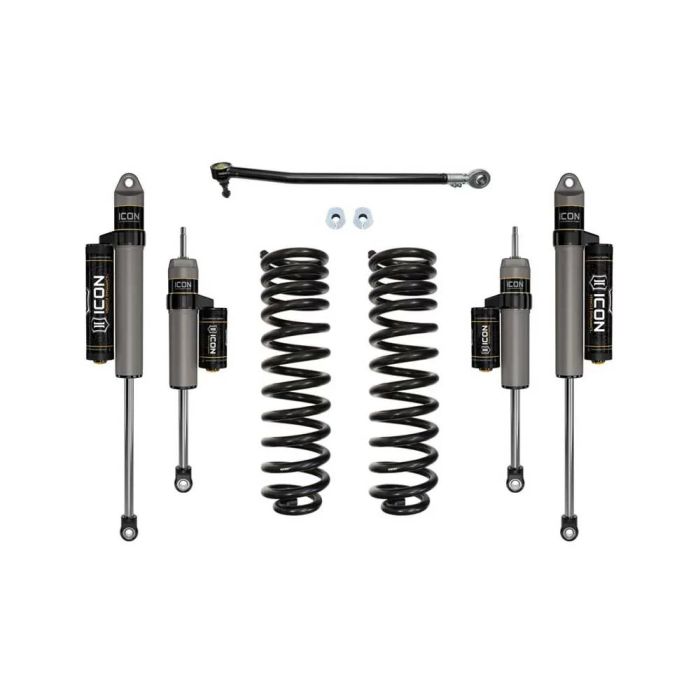

ICON 2020+ Ford F250/F350 2.5in Stage 3 Suspension System - K62523

The 2020-2023 Ford Super Duty trucks sit at a lower ride height than 17-19 models, and although many of the 17-19 components will physically fit 2020-2023 models, the resulting ride height is often taller than desired. So, engineers at ICON designed new progressive rate coil springs that achieve the correct advertised lift heights while still retaining the great ride quality, predictability, and performance that our Super Duty systems are known for.

View Installation Instructions

Features:

• Fits 2020-2023 F-250 / F-350 4WD applications
• Approximately 25% increased front wheel travel over stock
• ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
• ICON shocks feature vehicle specific tune for superior performance and ride quality
• Shocks are fully rebuildable and revalvable
• Hard anodized, corrosion resistant, one-piece impact extruded aluminum shock bodies with 7/8" shafts
• FK Rod End bearings provide extended longevity and minimal deflection
• Lifetime guarantee against coil spring breakage or sag
• Lifetime guarantee against ICON fabricated component breakage or manufacturer defect

• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 61111 - 17-UP FSD FRONT 2.5" EXTENDED SS BRAKE LINE KIT
• Add-On Part: 64039 - 08-UP FSD TRACK BAR BUMP STEER BRACKET KIT
• Bushings Included: Yes
• Coils Quantity Front: 2
• Dual Rate Coil Springs: Yes
• Grade Type: Performance
• Maximum Lift: 2.5 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5" Backspace / 6mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Lift Heights Based On 4Wd Crew Cab Diesel
• Rare Cases Require A 2.6 Degree Alignment Cam On One Side Of Vehicle For Proper Caster Split
• Springs Are Rated For Diesel Engines Only
• Oem Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes
• Brake Line Kit (Part # 61111) Is Optional For End Users Who Do Not Want To Bend The Factory Steel Lines Or Are Looking For A Braided Stainless Upgrade (Not Necessary For Complete Install)
• Included Rear Shocks Are Compatible With 0-3" Of Rear Lift Over Stock
• Not Compatible With F-350 Cab & Chassis Models
• Trucks Equipped With Tremor Package With Have Front Lift Height Of 1.5" Over Stock

• Ford F-250 Super Duty XL 4WD 2020-2023
• Ford F-250 Super Duty Lariat 4WD 2020-2023
• Ford F-250 Super Duty King Ranch 4WD 2020-2023
• Ford F-250 Super Duty Limited 2020-2023
• Ford F-250 Super Duty Platinum 2020-2023
• Ford F-250 Super Duty XLT 4WD 2020-2023
• Ford F-350 Super Duty XL Standard Cab Pickup 4WD 2020-2023
• Ford F-350 Super Duty XL Extended Cab Pickup 4WD 2020-2023
• Ford F-350 Super Duty XL Crew Cab Pickup 4WD 2020-2023
• Ford F-350 Super Duty Lariat Extended Cab Pickup 4WD 2020-2023
• Ford F-350 Super Duty Lariat Crew Cab Pickup 4WD 2020-2023
• Ford F-350 Super Duty King Ranch 4WD 2020-2023
• Ford F-350 Super Duty Limited 2020-2023
• Ford F-350 Super Duty Platinum 4WD 2020-2023
• Ford F-350 Super Duty XLT Standard Cab Pickup 4WD 2020-2023
• Ford F-350 Super Duty XLT Extended Cab Pickup 4WD 2020-2023
• Ford F-350 Super Duty XLT Crew Cab Pickup 4WD 2020-2023
