2021+ Ford Bronco Hoss 1.0 Pkg Stage 2 Suspension System Tubular (1.5 - 3in Lift) - K40002T
This Item has limited quantity. Request Quote for item availability.
Please Request Quote for stock status

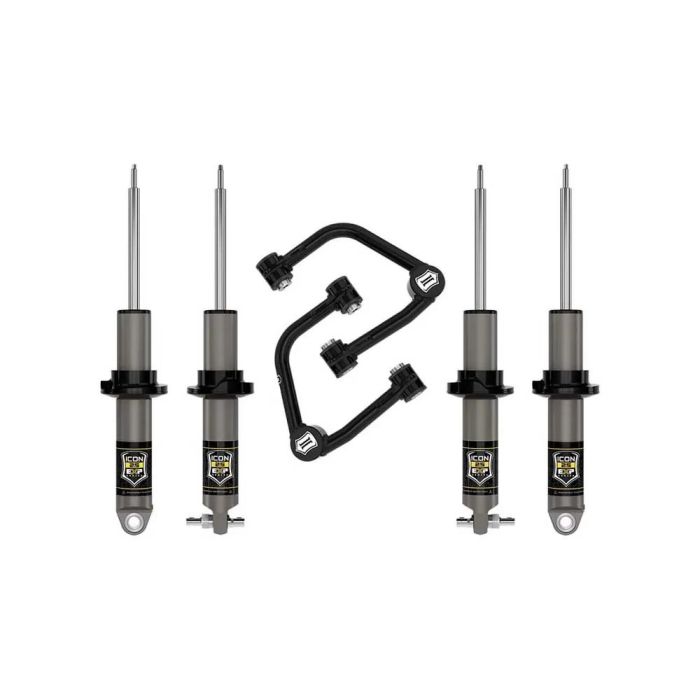

The ICON Vehicle Dynamics Stage 2 Suspension System for the 2021-2022 Ford Bronco features front and rear 2.5 EXP Series coilovers to yield increased wheel travel along with superior ride quality and suspension performance both on and off-road. 2.5 EXP Series coilovers combine the performance of a fully rebuildable 2.5-inch diameter premium shock absorber with the convenience and cost-benefits of re-using the Bronco's factory coil spring and other components. EXP coilovers use a series of snap-ring grooves machined into the shock body to provide easily-selectable ride height adjustment from 1.375-3" of front lift and 1.5-2.25" of rear lift over stock on Bronco's equipped with the OE HOSS 1.0 suspension package.
View Installation Instructions
Features:
- Vehicle specific design for 2021-2022 Ford Bronco with HOSS 1.0 Suspension Package
- Vehicle specific tuned shocks for superior shock damping and vehicle control
- Kit includes full set of (4) 2.5 Aluminum Series EXP Shocks with Internal Reservoirs
- Adjustable ride heights from 1.375-3" of front lift and 1.5-2.25" of rear lift over stock with the use of snap rings
- Utilizes factory coils and coil hardware
- Inverted shaft up design featuring 7/8" diameter, induction hardened, chrome plated shafts
- One-piece, impact extruded, hard anodized aluminum cylinders offer excellent corrosion resistance and consistent finish
- CNC machined 6061 aluminum components with a black anodized finish
- PTFE lined spherical bearings for extended longevity and minimal deflection
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- 100% Bolt-on - no cutting or welding necessary for installation
- Fully rebuildable and re-tunable
- Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
- Add-On Part: 611082 - EXP 1" SHAFT BUMP EXTENSION
- Bushings Included: Yes
- Grade Type: Performance
- Maximum Lift Front: 3 IN
- Maximum Lift Rear: 2.25 IN
- Minimum Lift Front: 1.375 IN
- Minimum Lift Rear: 1.5 IN
- Mounting Hardware Included: Yes
- Shocks Included: Yes
- Recommend High Clearance Crash Bars Part #42000 On Non-Sasquatch Equipped Vehicles When Running 35" Tires
- When Running 37" Tires Crash Bar Removal May Be Required But Is Not Recommended
- When Running 37" Tires Use Bump Stop Spacer Kit Part #611082 In The Front
- Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- Application Note #66: 2 Door Models Will Sit Taller Than 4 Door Models.
- Oem Wheels & Tires Fitment: Yes
- Not Compatible With Bronco Raptor
- Only Compatible With 2021-2022 Ford Broncos Equipped With Hoss 1.0 Suspension Package
- Ford Bronco Base 2021-2022
- Ford Bronco Big Bend 2021-2022
- Ford Bronco Black Diamond 2021-2022
- Ford Bronco Outer Banks 2021-2022
