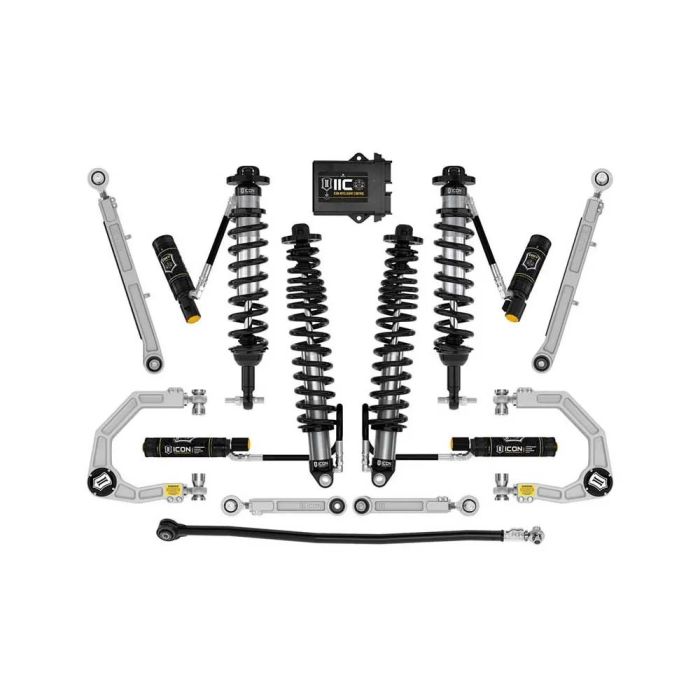

ICON 21-22 Ford Bronco Non-Sasquatch 3-4" Lift Stage 8 Suspension System Billet UCA- ICON-K40008

The ICON Vehicle Dynamics Stage 8 Suspension System for the 2021-2022 Ford Bronco features our precision-manufactured, custom valved remote reservoir coilover shocks with CDEV to yield the maximum travel possible along with superior ride quality and suspension performance both on and off-road. These coilovers also allow for the adjustment of ride height to yield 3-4" of front lift and 2-3" of rear lift over stock 4-door Broncos without the Sasquatch Package. The rear coilover shocks are oriented shaft-up with unique triple-rate coil springs to achieve the most rear suspension travel and the best ride quality possible. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade, ensuring sustained shock performance at speed through rough terrain. ICON's Top of The Range suspension system features lightning fast, precise electronic shock tuning, on-the-fly, at any speed and in any terrain. Focus on driving and let ICON Intelligent Control (IIC) read the terrain and make near-instant adjustments via the Compression Damping Electronic Valve (CDEV) at each individual shock. Control the system wirelessly through the IIC app on your phone and once configured the system functions without driver input.

View Installation Instructions

Features:

• Improved suspension performance and ride quality over stock
• Up to 11.5" front / 14" rear wheel travel with 35" tire fitment
• Vehicle specific tuned remote reservoir front and rear coilover shocks for superior damping and vehicle control, even under hard use
• ICON's CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
• ICON Intelligent Control (IIC) uses onboard sensors to monitor G-forces and movement of vehicle chassis along with user defined settings to actively make near instantaneous compression damping changes
• Adjustable coilovers yield up to 3-4" of front lift height and 2-3" of rear lift height over stock 4-door Broncos without the Sasquatch package
• PTFE lined spherical bearings and application specific mounting hardware
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" diameter shafts
• ICON engineered coil springs featuring a unique triple rate rear coil design
• High strength alloy CNC machined lower bar pins
• Billet aluminum UCAs for added strength, durability, and on-vehicle caster/camber adjustment for optimum drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation.
• Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
• Adjustable billet rear upper links improve fuel tank clearance under max articulation and help further free up suspension bind
• Adjustable rear track bar helps to free up bind during rear suspension travel and articulation and offers on-vehicle rear end alignment
• 100% Bolt-on system - no drilling, cutting, or welding necessary for install

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
• Add-On Part: 611074 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 3/8" TALL
• Add-On Part: 611075 - C/O BUMP STOP SPACER KIT 7/8" SHAFT 1/2" TALL
• Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
• Add-On Part: 42000 - 21-UP BRONCO HIGH CLEARANCE CRASH BAR KIT
• Bushings Included: Yes
• Coil Spring End 1 Type: Square
• Coil Spring End 2 Type: Square
• Coils Quantity Front: 2
• Coils Quantity Rear: 2
• Front Spring Rate Type: Linear
• Grade Type: Performance
• Maximum Lift: 4 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Rear Spring Rate Type: Progressive Triple Rate
• Recommended Aftermarket Tires: 35" x 12.50" (Recommend high clearance crash bars part number 42000, 37" tires require coilover bump stop spacers along with trimming and modifications)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• When Running 37" Tires Use Up Travel Limiters Part #611075 In The Front
• When Running 37" Tires Use Up Travel Limiters Part #611074 For The Rear
• Lift Heights & App Notes Based Non-Sasquatch Equipped Vehicles
• Recommend High Clearance Crash Bars Part #42000 On Non-Sasquatch Equipped Vehicles When Running 35" Tires
• When Running 37" Tires Crash Bar Removal May Be Required But Is Not Recommended
• Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• Application Note #66: 2 Door Models Will Sit Taller Than 4 Door Models.
• Oem Wheels & Tires Fitment: Yes
• Fitment Testing Done With Icon & Oe Steering Components. Due To Tight Clearances To Front Coilovers, Certain Aftermarket Steering Components May Not Be Compatible.
• Not Compatible With Bronco Raptor

• Ford Bronco Badlands 2021-2022
• Ford Bronco Base 2021-2022
• Ford Bronco Big Bend 2021-2022
• Ford Bronco Black Diamond 2021-2022
• Ford Bronco Outer Banks 2021-2022
