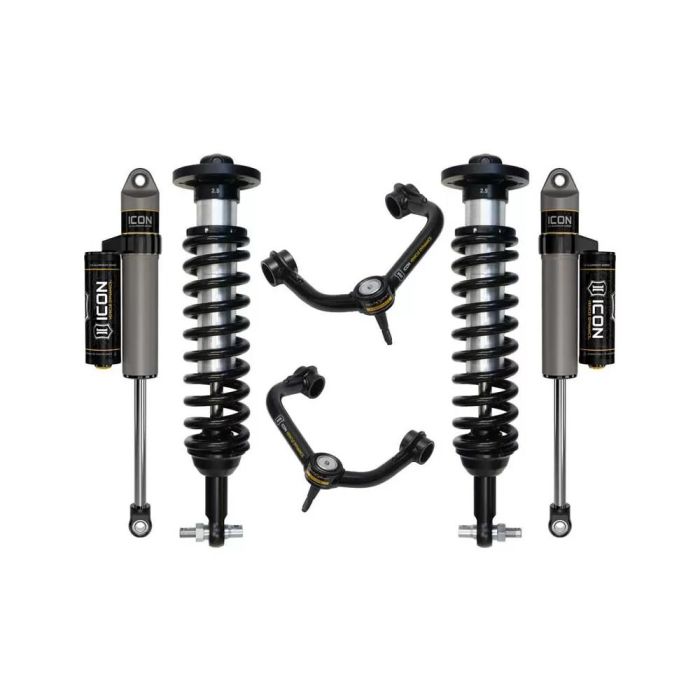

ICON 2021+ Ford F150 4WD 0-2.75in Stage 3 Suspension System w/ Tubular UCA - K93113T

ICON Vehicle Dynamics 2021-2023 Ford F-150 4WD suspension systems are designed with maximum performance and the serious driver in mind. ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. The Stage 3 system includes vehicle-specific tuned 2.5" coilover shocks featuring an internal reservoir for exceptional cooling properties and ICON-engineered Eibach coil springs for superior vehicle feel" through the range of travel. These coilovers are also height adjustable from 0-2.75" of lift over stock, allowing the use of larger, more aggressive wheel and tire combinations. Tubular upper control arms on the F-150 not only add strength and durability, but help retain factory alignment spec range by increasing caster over stock. ICON 2.5 Aluminum Series piggyback reservoir rear shocks utilize a vehicle-specific valving that balances the performance of the truck from front to rear. The ICON Vehicle Dynamics 2021-2023 F-150 4WD Stage 3 suspension system is an excellent choice for those drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

View Installation Instructions

Features:

• Increased wheel travel and ride quality over stock with no change in towing capacity
• High strength alloy CNC machined lower bar pins
• FK rod end bearings for extended longevity and minimal deflection
• 2.5 Aluminum Series rear shocks feature hard anodized, one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
• Bolt-on system - No cutting or welding necessary for install
• Vehicle specific tuned front and rear shocks for superior damping and vehicle control
• Adjustable coilovers from 0-2.75" of lift height
• Tubular Upper Control Arms for added strength, durability, and alignment spec range
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock bodies with 7/8" shafts

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191009 - ICON LONG 2.5 COIL WRAP W/LOGO (14.5-15.5)
• Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Bushings Included: NO
• Coils Quantity Front: 2
• Grade Type: Performance
• Maximum Lift: 2.75 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.25" Backspace / 6mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625" Backspace / 16mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Will Not Work With Electronically Controlled Suspension
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Oem Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes
• Included Rear Shocks Are Compatible With 0-1" Of Rear Lift Over Stock On Most Models
• Included Tubular Front Upper Control Arms Are Optimized For Front Lift Heights From 1.75-3" Over Stock
• Models Equipped With Powerboost Hybrid Engines Will Have Lift Height Range Of 0-2.5" Over Stock
• Models Equipped With Power-Stroke Diesel Engines Will Have Lift Height Range Of 0-2.25" Over Stock
• Not Compatible With F-150 Tremor Or F-150 Raptor
• Not Compatible With Models Equipped With Bluecruise
• Only Compatible With 4-Wheel Drive (4Wd) Models

• Ford F-150 Police Responder 2021-2023
• Ford F-150 XLT 4WD Gas 2021-2023
• Ford F-150 XLT 4WD FLEX 2021-2023
• Ford F-150 XL 4WD Gas 2021-2023
• Ford F-150 XL 4WD FLEX 2021-2023
• Ford F-150 XLT 4WD FULL HYBRID EV-GAS (FHEV) 2021-2023
• Ford F-150 SSV 4WD 2021-2023
• Ford F-150 XL 4WD FULL HYBRID EV-GAS (FHEV) 2021-2023
• Ford F-150 Platinum 4WD FULL HYBRID EV-GAS (FHEV) 2021-2023
• Ford F-150 Platinum 4WD 2021-2021
• Ford F-150 XLT 4WD 2021-2021
• Ford F-150 King Ranch 4WD Gas 2021-2023
• Ford F-150 King Ranch 4WD FLEX 2021-2023
• Ford F-150 King Ranch 4WD 2021-2021
• Ford F-150 Lariat 4WD Gas 2021-2023
• Ford F-150 Lariat 4WD FLEX 2021-2023
• Ford F-150 XL 4WD 2021-2021
• Ford F-150 Platinum 4WD Gas 2021-2023
• Ford F-150 Platinum 4WD FLEX 2021-2023
• Ford F-150 Lariat 4WD FULL HYBRID EV-GAS (FHEV) 2021-2023
• Ford F-150 King Ranch 4WD FULL HYBRID EV-GAS (FHEV) 2021-2023
• Ford F-150 Lariat 4WD 2021-2021
