ICON 2022+ Toyota Tundra 2-3.5in Stage 7 Tubular Suspension System - K53197T

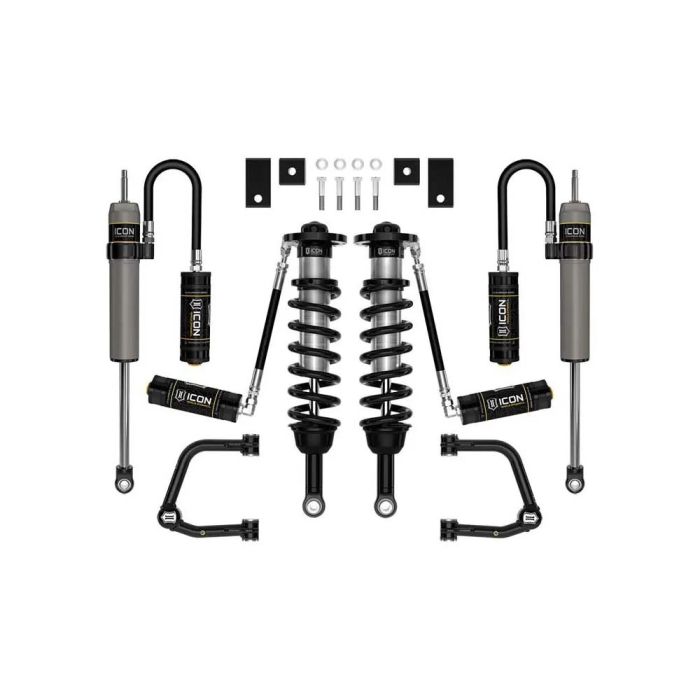

The ICON Vehicle Dynamics Stage 7 complete suspension system for the 2022-2023 Toyota Tundra builds upon the Stage 6 system with the upgrade of the rear shocks to 2.5 Aluminum Series shocks with remote reservoirs. This system offers improved on- and off-road performance, with significantly increased rear shock performance and heat dissipation, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the 2.5 Aluminum Series remote reservoir rear shocks, a 2.5 Series remote reservoir front coilover shock and tubular front upper control arm combo is included along with a front sway bar drop kit.

View Installation Instructions

Features:

• Vehicle specific design for 2022-2023 Toyota Tundra
• 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
• Adjustable front ride heights from 2-3.5" of front lift over stock when used with included tubular UCAs
• Tubular UCAs for added strength, durability, and alignment correction for better drivability
• UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
• Included sway bar drop brackets reduce bind in OE sway bar links
• Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
• 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
• All ICON shock absorbers are fully rebuildable and re-tunable

• Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Bushings Included: Yes
• Coils Quantity Front: 2
• Front Spring Rate Type: Linear
• Grade Type: Performance
• Maximum Lift: 3.5 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
• Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel

• Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
• Not Compatible With Trd Pro
• For 4Wd Models Without Trd Off-Road Package Icon Recommends Using Icon Diff Drop (Part# 55156) Or Using Toyota Trd Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For Trd Pro.
• Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
• Application Note #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
• Oem Wheels & Tires Fitment: Yes
• If Upgrading A Tundra Equipped With Adaptive Variable Suspension (Avs) All Other Vehicle Systems Remain Functional
• Included Rear Shocks Are Compatible With 0-1" Of Rear Lift Over Stock On Models Equipped With Rear Coil Springs.
• Most Tundra Sub-Models Equipped With I-Force Gasoline Engine Will Have Front Lift Height Range Of 2-3.5" Over Stock
• Most Tundra Sub-Models Equipped With I-Force Max Hybrid Engine Will Have Front Lift Height Range Of 2-3" Over Stock
• Tundra Sr5 Equipped With Trd Sport Suspension Package Will Have Lift Height Range Of 3-4.5" Over Stock

• Toyota Tundra Limited RWD Gas 2022-2023
• Toyota Tundra 1794 Edition 4WD Gas 2022-2023
• Toyota Tundra SR5 2022-2023
• Toyota Tundra SR5 4WD 2022-2023
• Toyota Tundra SR RWD 2022-2023
• Toyota Tundra Limited 4WD Gas 2022-2023
• Toyota Tundra SR5 RWD 2022-2023
• Toyota Tundra Platinum RWD Gas 2022-2023
• Toyota Tundra SR 4WD 2022-2023
• Toyota Tundra Platinum 4WD Gas 2022-2023
• Toyota Tundra 1794 Edition RWD Gas 2022-2023
• Toyota Tundra Limited RWD MILD HYBRID EV-GAS (MHEV) 2022-2023
• Toyota Tundra Limited 4WD MILD HYBRID EV-GAS (MHEV) 2022-2023
• Toyota Tundra Platinum RWD MILD HYBRID EV-GAS (MHEV) 2022-2023
• Toyota Tundra Platinum 4WD MILD HYBRID EV-GAS (MHEV) 2022-2023
• Toyota Tundra 1794 Edition 4WD MILD HYBRID EV-GAS (MHEV) 2022-2023
• Toyota Tundra 1794 Edition RWD MILD HYBRID EV-GAS (MHEV) 2022-2023
• Toyota Tundra Capstone 2022-2023
• Toyota Tundra Limited TRD Off-Road 2022-2022
• Toyota Tundra SR5 TRD Off-Road 2022-2022
• Toyota Tundra SR TRD Off-Road 2022-2022
• Toyota Tundra Platinum 1794 Edition 2022-2022
