ICON 22-23 Toyota Tundra 2-3.5" Lift Stage 8 2.5 Suspension System Tubular- ICON-K53198T
$4,797.23
sku
ICON-K53198T
This Item has limited quantity. Request Quote for item availability.
Due to global pandemic and a shortage of raw materials for manufacturers, stock will fluctuate. Please contact us via phone, message, or use our quote request system for a stock check. Click here to contact us

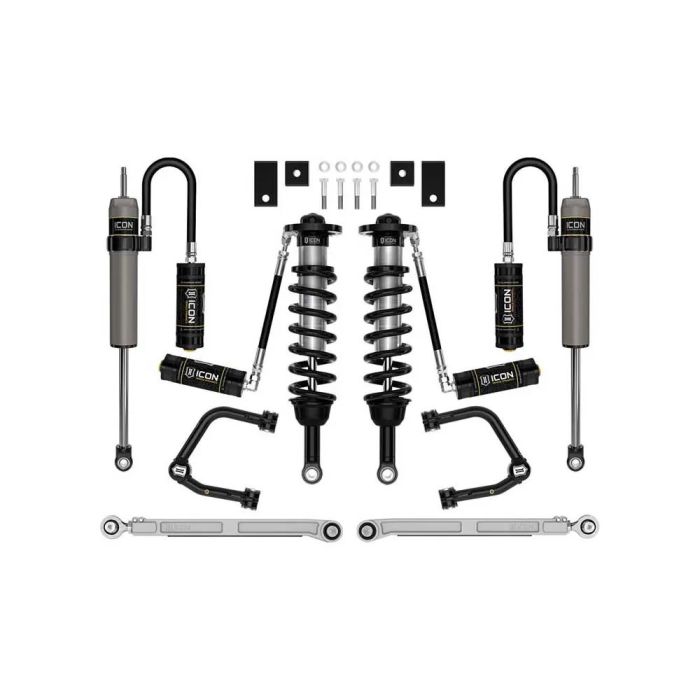

The ICON Vehicle Dynamics Stage 8 complete suspension system for the 2022-2023 Toyota Tundra helps to free up the rear suspension movement while gaining strength and ground clearance with the addition of ICON billet aluminum rear lower links. This system offers improved on- and off-road performance, as well as improved alignment specs and increased front-end lift height range for a proper stance and fitment of up to 35" tires. To compliment the billet aluminum rear lower links, a 2.5 Series remote reservoir front coilover shock and tubular front upper control arm combo is included along with a front sway bar drop kit and 2.5 Aluminum Series rear remote reservoir shocks.
View Installation Instructions
Features:
- Vehicle specific design for 2022-2023 Toyota Tundra
- 2.5 Series front coilovers with remote reservoirs for superior damping and vehicle control along with improved shock cooling
- Adjustable front ride heights from 2-3.5" of front lift over stock when used with included tubular UCAs
- Tubular UCAs for added strength, durability, and alignment correction for better drivability
- UCAs feature the patented (U.S. Pat. 10,731,700) Delta Joint Pro with 90 degrees of total articulation
- Included sway bar drop brackets reduce bind in OE sway bar links
- Allows for up to 40% increase in front wheel travel over stock without overstressing OE components
- Billet rear lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- 2.5 Aluminum Series rear remote reservoir shocks provide increased performance and balanced tune with coilovers
- All ICON shock absorbers are fully rebuildable and re-tunable
- Add-On Part: 191013 - NIPPLE GREASING ADAPTER KIT
- Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
- Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
- Bushings Included: Yes
- Coils Quantity Front: 2
- Front Spring Rate Type: Linear
- Grade Type: Performance
- Maximum Lift: 3.5 IN
- Mounting Hardware Included: Yes
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Minor fender trimming and modifications may be required)
- Recommended Aftermarket Wheels: 17x8.5" w/ 5.75" Backspace / 25mm Offset
- Shocks Included: Yes
- Spring Color: Black
- Spring Material: Steel
- Not Compatible With Tundras Equipped With Load-Leveling Rear Height Control Air Suspension.
- Not Compatible With Trd Pro
- For 4Wd Models Without Trd Off-Road Package Icon Recommends Using Icon Diff Drop (Part# 55156) Or Using Toyota Trd Axles (Part# 434200C020 Driver / 434100C020 Pass). Failure To Do So Could Result In Front Axle Damage. Not Required For Trd Pro.
- Shocks Are Fully Serviceable. Lift Heights Indicated Are For A Stock Equipped Vehicle.
- Application Note #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
- Oem Wheels & Tires Fitment: Yes
- If Upgrading A Tundra Equipped With Adaptive Variable Suspension (Avs) All Other Vehicle Systems Remain Functional
- Included Rear Shocks Are Compatible With 0-1" Of Rear Lift Over Stock On Models Equipped With Rear Coil Springs.
- Most Tundra Sub-Models Equipped With I-Force Gasoline Engine Will Have Front Lift Height Range Of 2-3.5" Over Stock
- Most Tundra Sub-Models Equipped With I-Force Max Hybrid Engine Will Have Front Lift Height Range Of 2-3" Over Stock
- Tundra Sr5 Equipped With Trd Sport Suspension Package Will Have Lift Height Range Of 3-4.5" Over Stock
- Toyota Tundra Limited 4WD Gas 2022-2023
- Toyota Tundra SR5 RWD 2022-2023
- Toyota Tundra SR 4WD 2022-2023
- Toyota Tundra 1794 Edition 4WD Gas 2022-2023
- Toyota Tundra Platinum RWD Gas 2022-2023
- Toyota Tundra Platinum 4WD Gas 2022-2023
- Toyota Tundra SR5 4WD 2022-2023
- Toyota Tundra SR RWD 2022-2023
- Toyota Tundra SR5 2022-2023
- Toyota Tundra 1794 Edition RWD Gas 2022-2023
- Toyota Tundra Limited RWD Gas 2022-2023
- Toyota Tundra Limited 4WD MILD HYBRID EV-GAS (MHEV) 2022-2023
- Toyota Tundra Limited RWD MILD HYBRID EV-GAS (MHEV) 2022-2023
- Toyota Tundra Platinum RWD MILD HYBRID EV-GAS (MHEV) 2022-2023
- Toyota Tundra Platinum 4WD MILD HYBRID EV-GAS (MHEV) 2022-2023
- Toyota Tundra 1794 Edition 4WD MILD HYBRID EV-GAS (MHEV) 2022-2023
- Toyota Tundra 1794 Edition RWD MILD HYBRID EV-GAS (MHEV) 2022-2023
- Toyota Tundra Capstone 2022-2023
- Toyota Tundra Limited TRD Off-Road 2022-2022
- Toyota Tundra SR5 TRD Off-Road 2022-2022
- Toyota Tundra SR TRD Off-Road 2022-2022
- Toyota Tundra Platinum 1794 Edition 2022-2022
| Brand | Icon Vehicle Dynamics |
|---|
