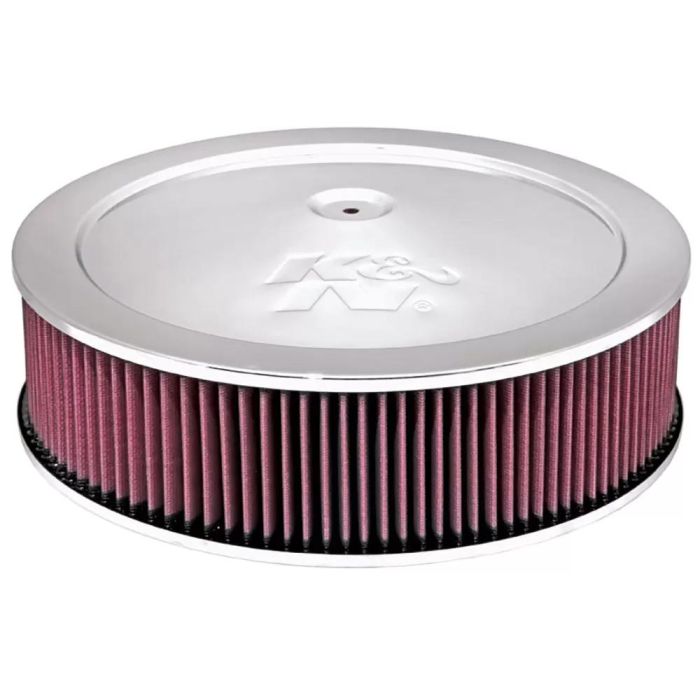

K&N 14in Red Custom Air Cleaner Assembly - 5.125in ID x 14in OD x 3.75in H x 1.25in Drop Base - 60-1290

K&N's custom air cleaner assemblies are designed with the racer in mind. They incorporate good looks as well as the superior air flow that you expect from K&N. These custom air cleaner assemblies are designed for use with any engine that uses a round element air cleaner housing. They incorporate our famous K&N Air Filters and provide more air flow than other assemblies of this type. Available in 4 different designs, the perfect assembly is sure to be found here. Each complete assembly comes with base, element, and top plate.

Features:

• Air Filter Color: Red
• Air Filter Height: 4 in (102 mm)
• Air Filter Inside Diameter: 12 in (305 mm)
• Air Filter Material: Cotton Gauze
• Air Filter Shape: Round
• Air Filter Washable: Yes
• Assembly Footnote 1: Vent kit available, P/N 85-1190
• Color / Finish: Red Filter, Chrome Top
• Height: 4 in (102 mm)
• Inlet Diameter: 5.125 in (130 mm)
• Inner Wire: Yes
• Inside Diameter: 5.125 in (130 mm)
• Mounting Hardware Included: No
• Neck Flange: 5.125 in (130 mm)
• Oil Included: Yes
• Outside Diameter: 14 in (356 mm)
• Overall Height: 3.75 in (95 mm)
• Package Material: Paperboard
• Package Type: Box
• Product Style: Custom Assemblies
• Replacement Filter: E-3750
• Size: 14 Inch
• Style: 1-1/4" Drop Base
• Top Material: Chrome
• Top Style: Metal
• Warranty: 1 Year Limited
• Weight: 6.4 lb (2.9 kg)

• For Instructions CLICK HERE
