Mishimoto 14-16 Ford Fiesta ST 1.6L Performance Intercooler (Silver) - MMINT-FIST-14SL

Many prototypes entered, but only one came out on top. The engineers went through multiple different designs for this 2014-2019 Fiesta ST intercooler, weighing the benefits and downfalls of each. The final design consists of a tube-and-fin style intercooler in order to allow airflow to the radiator and reduce overall weight. The core size is 51% larger than stock, and also provides a 25% increase in internal core volume.

During testing, this 2014-2019 Fiesta ST intercooler dropped intake temperatures by a huge 26??F! This kit is designed to be a direct fit and fits with the stock or Mishimoto Fiesta ST Intercooler Pipes. Combine the two, and you'll have a complete high-performance charged air system. This 2014-2019 Fiesta ST intercooler kit includes air diversion plates to channel air through the cooler for maximum efficiency. The all-aluminum, TIG-welded construction is of the highest quality, and like all Mishimoto 2014-2019 Fiesta ST parts, it is backed by the Mishimoto Lifetime Warranty!

Features:

• Direct fit for the 2014-2019 Ford Fiesta ST
• 26??F (15??C) reduction in AIT
• 51% increase in core size
• 25% increase in internal core volume & 226% increase in external fin surface area
• Includes air diversion plates to direct air through the intercooler core for maximum efficiency
• Stock location prevents airflow blockage to radiator and AC condenser
• Tube and fin construction for added weight reduction over bar and plate cores
• All-aluminum, TIG-welded
• Available in Sleek Silver or Stealth Black or Bold Gold
• Fits with the Mishimoto Fiesta ST Direct Fit Oil Cooler Kit
• Fits with stock, Mishimoto, or most aftermarket intercooler pipe kits
• Mishimoto Lifetime Warranty

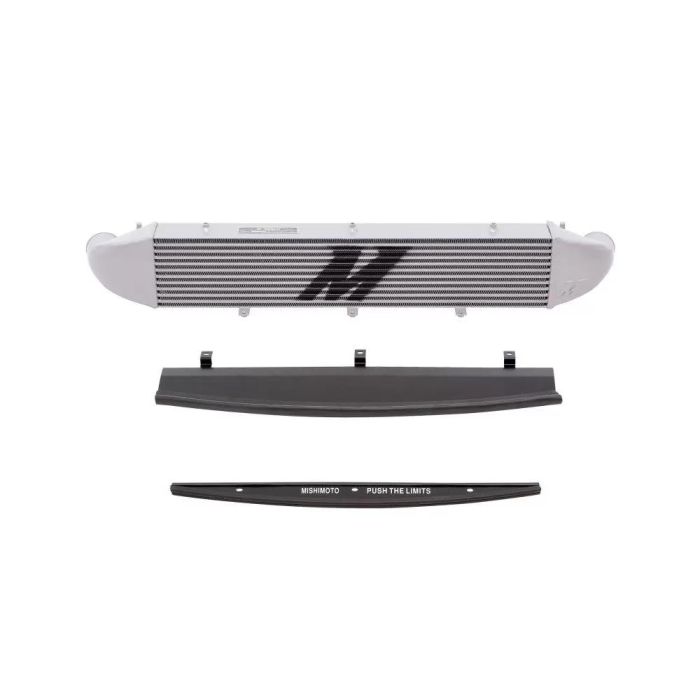

• (1) Mishimoto Intercooler
• (1) Upper Diversion Plate with Mounting Hardware and Rubber Trim Seal
• (1) Lower Diversion Plate with Mounting Hardware and Rubber Trim Seal
• Mishimoto Lifetime Warranty

• Core Thickness: 2.59
• Weight: 13.4 lbs
• Tank Wall Thickness: 0.16
• Max Rec. PSI: 40
• Outlet: 2.55
• Core Length: 28.8
• Core Height: 16.15 cm
• Core Width: 6.5 cm
• Inlet: 2.55
• Core Size: 28.8 x 4.92 x 2.55
• Overall Width: 6.15
• Overall Height: 6.36
• Overall Length: 40.1
• Construction: Tube-and-Fin with cast endtanks
• Max Rec HP: 325

• Engine Codes
  • 1.6L Ecoboost
• Chassis Codes
  • B3 Platform
• Fits
  • 2014-2019 Ford Fiesta ST

• This intercooler is rated for approximately 325 whp. Exceeding these horsepower limits could require a larger front-mount intercooler. The J-line intercooler can be used for horsepower levels exceeding 325whp. Please note the install guide provided below includes instructions for installation with bumper removal. If you require a guide without bumper removal please contact [email protected].
