Radium Engineering 03-07 Mitsubishi Evo 8/9 Fuel Surge Tank Kit (FST NOT Incl) - 20-0120

This comprehensive installation kit includes everything needed to install a Radium Engineering single pump. All Radium FSTs are CNC machined from aluminum. They are fully anodized and use PTFE insulated wiring, submersible hose, etc. to make them alcohol (ethanol/methanol/E85) compliant. The Mitsubishi EVO VIII / Ix install kit locates the FST in a collision-safe area of the trunk, centered behind the rear seat. This allows for the majority of the trunk space to still be useable. The nickel-plated aluminum bracket solidly mounts to the V-brace in front of the rear seat carpet cover in the trunk. The FST with black powder coated bracket is isolated through the OEM carpet cover to reduce fuel pump noise and vibration.

Also included are wiring components with flying leads featuring a weatherproof fuse and relay to drive the FST s fuel pump. Wiring is very simple and takes less than 30 minutes to assemble. No soldering is required.

Included are 4 PTFE hoses which are cut to length and preassembled. PTFE hose is perfect for all types of fuel, especially with high alcohol contents, such as ethanol (E85). Unlike standard rubber hose, PTFE is non-permeable and eliminates any possible fuel vapor smell in the vehicle. Radium PTFE hoses use anodized aluminum hose ends and are cut to length specifically for this application. The inner stainless steel braid resists extreme fuel pressures and is covered with black PVC which gives the hose added protection from debris and provides abrasion protection. Supplied in -6AN size only. The suppled -6AN hoses intergrate with the stock fuel lines, they do not completely replace all stock fuel lines.

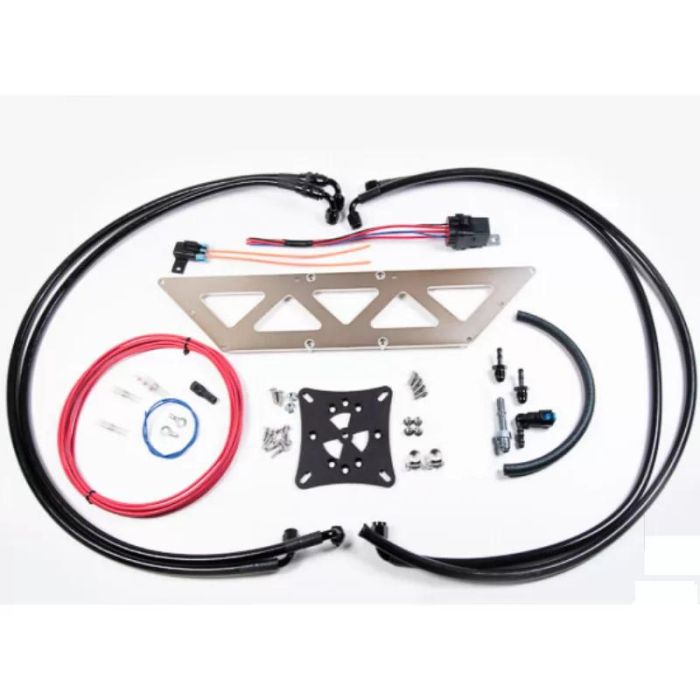

Features:

• Preassembled 3/8" (-6AN) PTFE Hoses
• Nickel Plated and Powder Coated Mounting Brackets
• AN and OEM Style Adapter Fittings
• Stainless Steel Hardware
• Barricade Hose, non-permeating
• Wiring Components with Relay and Fuse
• Solderless Heat Shrink Connectors
• Installation Instructions

• Mitsubishi EVO VIII | Ix 2003-2007

• If a Radium Engineering dual internal pump FST is required, this can be achieved. However, the plumbing and electrical in this kit was designed for 1 pump. Simply choose a FST with dual pumps to use with this EVO install kit. Also pickup a DIY harness as well for the electrical required to drive the second FST pump. Lastly, you will need to plumb a second hose from the FST to the fuel rail. PTFE hoses can be helpful.
• If a Radium FST-R is required, this can be achieved. However, the plumbing in this kit was designed to reuse the OEM Mitsubishi FPR. One of the hoses in this kit will not be used and the OEM 1/4" rubber FPR return hose will need to be either removed, drained, or plugged. Furthermore, the FPR vacuum hose will need to be extended to the trunk.
• Neither of the two scenarios above are covered in depth in the instruction manual. Contact us for more details.
• Due to the restrictive return port on the OEM fuel pump housing, a slightly higher static fuel pressure is normal when using a high flow pump. To alleviate this issue, the OEM fuel pump housing return port can be modified (enlarged) to alleviate the restriction and promote fuel flow back into the OEM fuel tank. This is noted in the instruction manual.
• Pictures used for marketing purposes only, actual product may vary.
