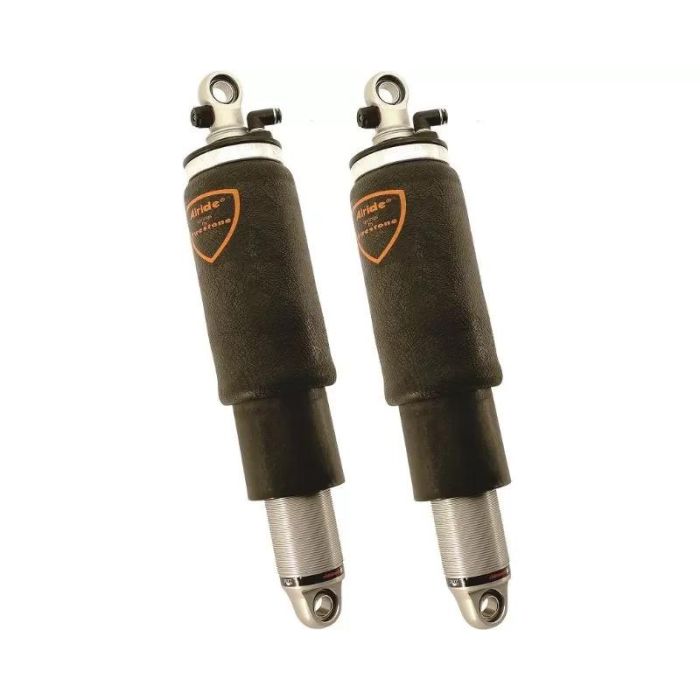

Ridetech HQ Series Rear ShockWaves 4.1in Travel 4in dia Rolling Sleeve .625 Bearing/.625 Bearing - 21140701

The ShockWave mounts just like a coilover and replaces the coil-spring with an adjustable air spring for a huge range of tuning options. This ShockWave package is designed to work with the appropriate Airbar system.

This ShockWave system is designed to provide the optimal ride quality and ease of installation. These units are used in conjuction w/ the RideTech Bolt-On 4 Link system for the 55-57 Chevy and 70-74 Mopar "E" Body. They can also be used in custom installations with a solid rear axle and rear weight under 1,500lbs.

Specifications:

• Compressed ? 10.75"
• Ride Height ? 12.75"
• Extended ? 14.25"
• Diameter ? 4"
• Load Capacity ? 780lbs at 100psi
• Bearing type ? Teflon Lined (Comes with spacers for 1 1/4" wide brackets and 1/2" or 5/8" bolts)
• Airline Size ? 1/4"

• Chevrolet Bel Air 1955-1957
• Chevrolet One-fifty Series 1955-1957
• Chevrolet Two-ten Series 1955-1957
• Dodge Challenger 1970-1974
• PlymouthBarracuda 1970-1974
• Plymouth Cuda 1970-1974
