Rockford Fosgate 1998-2013 Harley davidson Motorcycle 5.25in Full Range Tour-Pak Speakers - TMS5

Since day one, we've spearheaded the car audio revolution. Nothing's changed. Rockford Fosgate?? is still the global leader in audio innovation, design and engineering, delivering an experience of passion through sound in a way the world has never felt before.

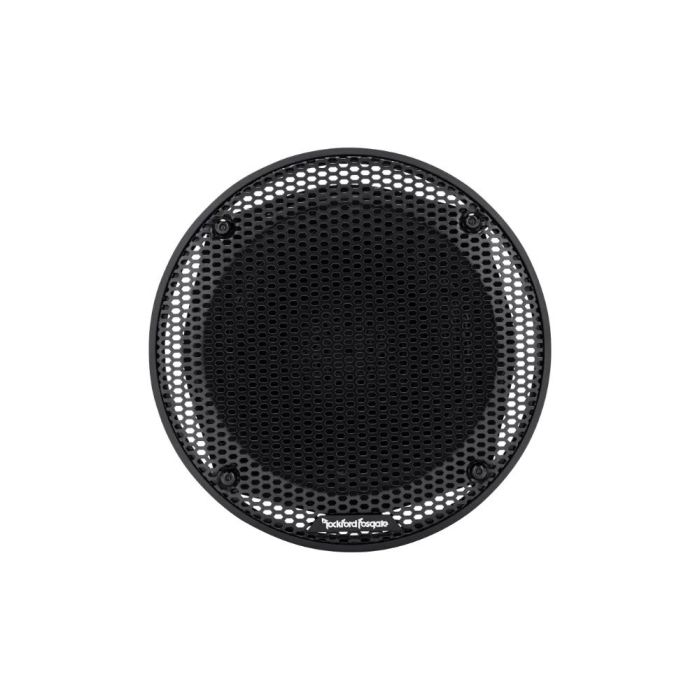

The TMS5 is a full range coaxial speaker designed to fit the Tour-Pak speaker locations of the 1998 - 2013 model year Harley-Davison?? Motorcycles. It features a Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug and is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker mounts using the factory hardware and comes with new grille assemblies.

The TMS5 full range coaxial speaker is designed for direct fitment applications in 1998-2013 Harley-Davidson?? motorcycles in the Tour-Pak locations. This speaker directly replaces the existing factory speakers using the factory mounting hardware and speaker connectors.

It features a compact Neodymium motor structure driving a co-molded, reinforced polypropylene cone with Santoprene surround This ensures that you get maximum frequency response and output in both the mid and low frequency range. It also features an ultra-efficient 25mm dome tweeter with integrated phase plug for crisp clear highs even at highway cruising speeds.

It is made water/weather resistant with the addition of a Santoprene front isolation spider connecting between the tweeter housing and cone assembly. The speaker requires no modification of the factory location and comes with new grille assemblies.

Features:

• Neodymium Tweeter with Integrated Phase Plug and ASA Grill
• Carbon Fiber Reinforced Polypropylene Cone
• Element Ready design that is weather and water resistant
• Santoprene VAST Surround
• Ultra-Efficient 25mm Proprietary Film Dome Tweeter
• Co?Molded Cone and Surround
• Santoprene Front Isolation Spider
• Ultra?Efficient Neodymium Ring Magnet Motor
• High Power 35mm Voice Coil
• Poly?Cotton Spider
• Ultra?High Temperature Glass Reinforced Polymer Frame
• Integrated 6dB Crossover with High Power Polyester Capacitor
• Integrated Spade Terminals
• Discreet (Hidden) Tweeter Wire
• Low Profile Coaxial Tweeter Design
• Designed for 1998?2013 Harley-Davidson?? Rear Tour-Pak?? Locations
• 2-Year Warranty

• Installation on CVO??? and Screaming Eagle??? models are not plug-n-play and will require modification

• Midrange Size (Nominal Diameter): 5.25"
• Nominal Impedance (Ohms): 4-Ohm
• Speaker Type: 2-Way Coax
• Power Handling (MAX): 130 Watts MAX
• Frequency Response (Hz): 64 Hz - 20 kHz
• Power Handling (RMS): 65 Watts RMS
• Voice Coil Diameter (in/mm): 1.40" (35.6 mm)
• Tweeter Mounting Depth: N/A
• Grille/Trim Ring Included: Yes
• Mounting Hardware: Yes
• Sensitivity (dB @ 2.83V/1M): 94 dB
• Crossover: Built-in tweeter crossover
• Sensitivity (dB @ 1W/1M): 91 dB
• Midrange Mounting Depth: 2.05" (52.0mm)

• (2) Speakers
• (2) Speaker Grilles
• (1) Hardware Pack
