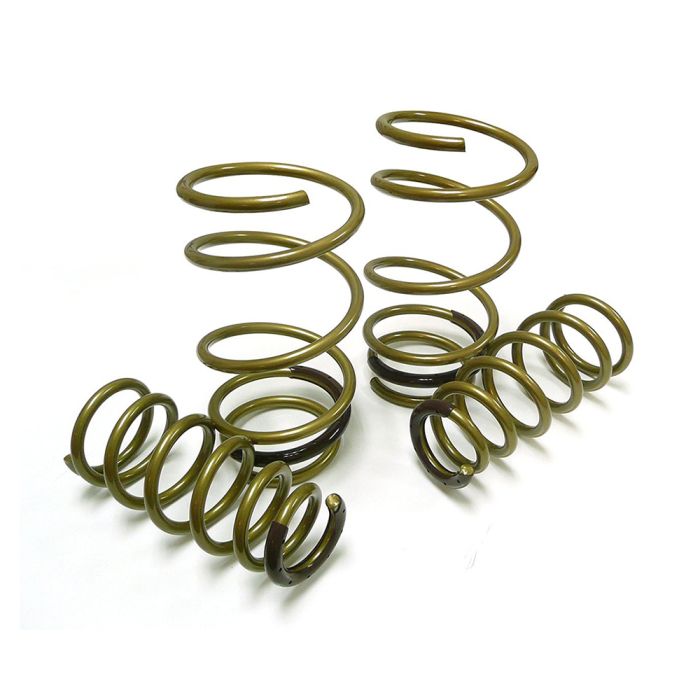

TEIN HIGH.TECH Spring Kit Toyota Prius S-Touring Selection, G-Touring Selection ZVW30 FF 2009.05-2015.11 JPN- SKQ08-G1B00

TEIN High.Tech springs utilize the latest spring and material technology to optimize comfort, performance, and quality. Designed and tested in North America to be used in conjunction with OEM or similar shocks for excellent ride comfort and slightly increased handling. The line is produced with Vanadium (SAE9254V), which is durable, lightweight, and has properties to retain more spring stroke. High.Tech springs are designed for those seeking a slightly lowered stance while maintaining high ride quality at a reasonable price. Most vehicles will attain a 1.2 inch drop for a more attractive appearance, added performance, and excellent comfort. Includes a one year limited warranty.

Front Specifications:

• Damping Force Adjustment:
• Full-Length Ride-Height Adjustable:
• Upper Mount:
• Recommended Ride Height (mm): -30
• Recommended Ride Height (inch): -1.2
• Ride Height Adjustable Range:
  • Max Low (mm): 0
  • Max Low (inch): 0
  • Max High (mm): 0
  • Max High (inch): 0
  • Recommended Low (mm): 0
  • Recommended Low (inch): 0
  • Recommended High (mm): 0
  • Recommended High (inch): 0
• Spring
  • Rate (kgf/mm): 2.4
  • Rate (lbs/in): 134
  • SP PART#S7Q08-01
  • Free Length (mm): 318

• Damping Force Adjustment:
• Full-Length Ride-Height Adjustable:
• Upper Mount:
• Recommended Ride Height (mm): -35
• Recommended Ride Height (inch): -1.4
• Ride Height Adjustable Range:
  • Max Low (mm): 0
  • Max Low (inch): 0
  • Max High (mm): 0
  • Max High (inch): 0
  • Recommended Low (mm): 0
  • Recommended Low (inch): 0
  • Recommended High (mm): 0
  • Recommended High (inch): 0
• Spring:
• Rate (kgf/mm): 3
• Rate (lbs/in): 168
• SP PART#S7Q09-01
• Free Length (mm): 335

• Year: 2009.05-2015.11
• Make: Toyota
• Model: Prius
• Trim: S-Touring Selection, G-Touring Selection
• Drivetrain: FF
• Chassis: ZVW30
• Motor Size: 1800
• Vehicle Region: JPN

• Exclusively For Vehicles With Floating (Input-Separation) Type Upper Mounts On Front. Reference Trim Level G, S Touring Selection (Not Tested On G And/Or S Model Equipped With Moonroof).

• Chrome Vanadium SAE9254V Construction
• Progressive Spring Rate Design
• Includes Silencer Rubber on certain applications
• Gold Powder Coat Finish
• Developed to be used in conjunction with OEM dampers
• 1-year Manufacturers Defect and Sag Warranty:
  • Covers over 5mm sag, breakage, deformity, and noise.
  • Does not cover powder coat finish and rusting.
