Tein 12-13 Honda Civic Si (FB6/FG4) Street Basis Z Coilovers - GSHC0-8UAS2
$589.00
sku
teinGSHC0-8UAS2
This Item has limited quantity. Request Quote for item availability.
Stock is low or unavailable.
Please Request Quote for stock status
Please Request Quote for stock status
Upgrade your Acura ILX DE2 FF (2013-2015) with the TEIN STREET BASIS Z Coilover Kit. Designed for superior handling and comfort, this kit offers:
- Adjustable ride height for a customized stance
- Twin-tube structure for a smoother ride
- Durable powder-coated finish for long-lasting protection
- High-quality construction for enhanced performance and reliability
- Easy installation with no need for additional modifications
Transform your driving experience with improved stability and control.

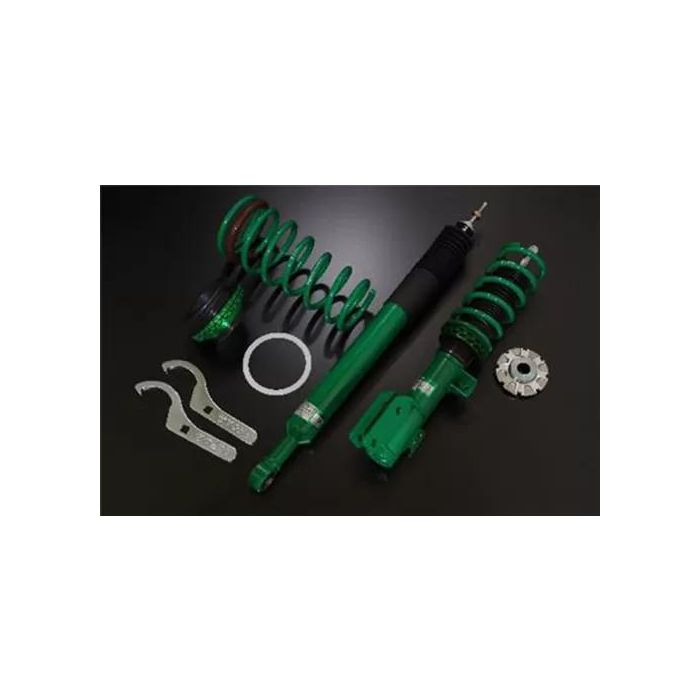

The Tein STREET BASIS Z Coilover System combines affordability and comfort packaged into a masterfully constructed suspension system. These coilovers utilize a Twin-Tube setup that when compared to the regular mono-tube systems, these twin-tube systems attain longer stroke with a smaller repulsive force, resulting in increased ride comfort. Thanks to this unique characteristic, you can negotiate gaps and bumps steadily on rough roads, meaning a smooth ride at low speed and stability at high speeds.
Front Specifications:
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -30
- Recommended Ride Height (inch): -1.2
- Ride Height Adjustable Range:
- Max Low (mm): -62
- Max Low (inch): -2.4
- Max High (mm): -19
- Max High (inch): -0.7
- Recommended Low (mm): -40
- Recommended Low (inch): -1.6
- Recommended High (mm): -20
- Recommended High (inch): -0.8
- Spring
- Rate (kgf/mm): 6
- Rate (lbs/in): 336
- SP PART#S8B14-13060
- Free Length (mm): 220
- Damping Force Adjustment: N
- Full-Length Ride-Height Adjustable: N
- Upper Mount: OEM
- Recommended Ride Height (mm): -35
- Recommended Ride Height (inch): -1.4
- Ride Height Adjustable Range:
- Max Low (mm): -59
- Max Low (inch): -2.3
- Max High (mm): -13
- Max High (inch): -0.5
- Recommended Low (mm): -45
- Recommended Low (inch): -1.8
- Recommended High (mm): -25
- Recommended High (inch): -1
- Spring:
- Rate (kgf/mm): 7
- Rate (lbs/in): 392
- SP PART#S6HC1-13070
- Free Length (mm): 165
- Year: 2013-2015
- Make: Acura
- Model: ILX
- Drivetrain: FF
- Chassis: DE2
- Motor Size: 2400/2000
- Vehicle Region: USA
- 4Dr/4Cyl. Ft: Oe Dust Boot Needs To Be Modified. Rr: Oe Spring Insulator Needs To Be Modified.
- Steel Construction
- Twin Tube internal construction
- Thread Type Ride Height Adjustment
- Utilizes OEM Mounts
- 16 way adjustable dampers, compression and rebound combined
- High Durability and Reliability
- Anodized brackets with Teflon coated shock body for heavy duty rust prevention
| Brand | TEIN |
|---|
