ICON 10-Up Toyota 4Runner/FJ Cruiser 0-3.5" Lift Stage 2 Suspension System Billet UCA- ICON-K53062

Special Price $3,343.76 Regular Price $3,695.74
sku
ICON-K53062
Free Shipping Banner
Alt Text!
Special Pricing for Local Pick Up Only, click here to learn more
Due to global pandemic and a shortage of raw materials for manufacturers, stock will fluctuate. Please contact us via phone, message, or use our quote request system for a stock check. Click here to contact us

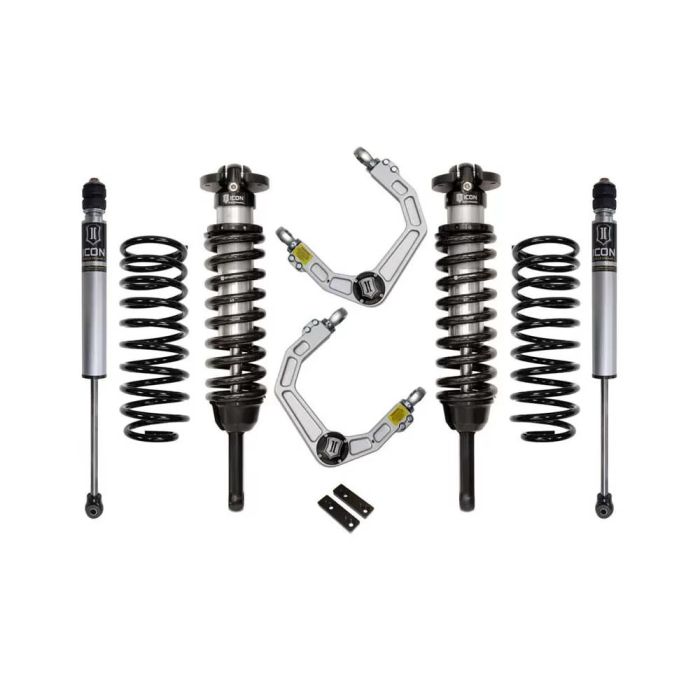

This ICON Stage 2 suspension system for the 2010-UP Toyota 4Runner/2010-2014 FJ Cruiser uses the same components as the Stage 1 system with a few simple changes and additions. The 2.5 Series coilover shocks used in this system are the Extended Travel version, offering increased wheel travel that will enhance your on and off-road performance even more so than the standard travel units. Since these shocks do provide more suspension travel, they require the use of an ICON upper control arm.

View Installation Instructions

Features:

  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable coilovers provide 0-3.5" of front lift height
  • Extended Travel coilovers matched with ICON UCA provides increased front droop travel
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
  • Bolt-on system means no cutting or welding necessary for install
Specifications:
  • Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
  • Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
  • Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
  • Bushings Included: Yes
  • Coils Quantity Front: 2
  • Coils Quantity Rear: 2
  • Grade Type: Performance
  • Maximum Lift: 3.5 IN
  • Mounting Hardware Included: Yes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
  • Shocks Included: Yes
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate: 650 PPI
Notes:
  • Kdss Equipped Require Rear Track Bar 54200
  • Suspension System Compatible With Kdss. Front Sway Bar Relocation Brackets Not Used For Kdss Equipped Vehicles. Certain Years Require Trimming For Front Reservoir Bracket Fitment
  • 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
  • Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • Oem Wheels & Tires Fitment: Yes
  • Ships In Multiple Boxes
Fitment:
  • Toyota 4Runner 2010-2022
  • Toyota FJ Cruiser 2010-2014
More Information
Brand Icon Vehicle Dynamics
Make Model Year Toyota 4Runner 2014, Toyota 4Runner 2015, Toyota 4Runner 2016, Toyota 4Runner 2017, Toyota 4Runner 2018, Toyota 4Runner 2019, Toyota 4Runner 2020, Toyota 4Runner 2010, Toyota 4Runner 2011, Toyota 4Runner 2012, Toyota 4Runner 2013
