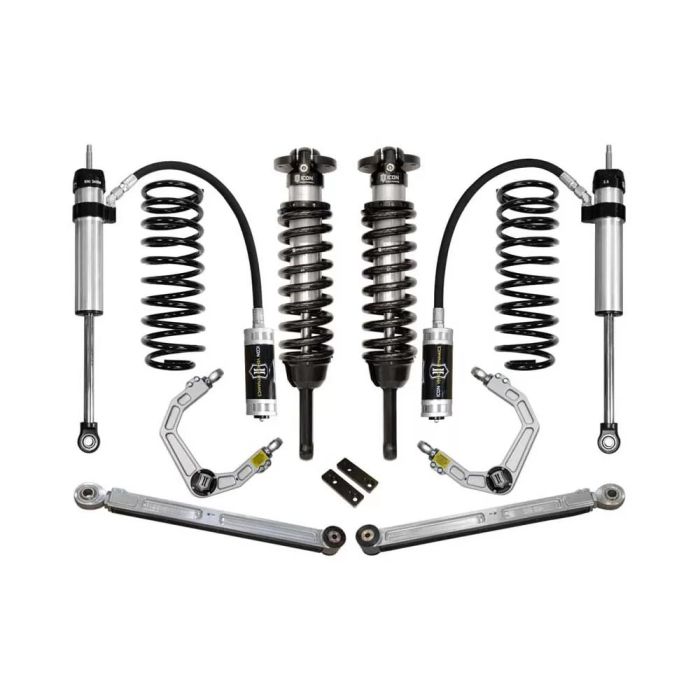

ICON 10-Up Toyota 4Runner/FJ Cruiser 0-3.5" Lift Stage 4 Suspension System Billet UCA- ICON-K53064

Special Price $4,935.01 Regular Price $5,454.49
sku
ICON-K53064
Free Shipping Banner
Alt Text!
Special Pricing for Local Pick Up Only, click here to learn more
Due to global pandemic and a shortage of raw materials for manufacturers, stock will fluctuate. Please contact us via phone, message, or use our quote request system for a stock check. Click here to contact us

ICON's 2010-UP Toyota 4Runner/2010-2014 FJ Cruiser Stage 4 suspension system provides a significant increase to the on and off-road performance of the vehicle. This system includes the components featured in the Stage 3 setup extended travel 2.5 Series coilover shocks, an ICON billet aluminum upper control arm kit, 2" rear coil springs, and a billet aluminum rear lower link arm kit - but sees the addition of 2.5 Aluminum Series Remote Reservoir rear shocks for balanced damping characteristics front to rear. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable fade" occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON's "Bump Zone" technology which significantly increases damping ability in the last 2" of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain.

View Installation Instructions

Features:

  • Increased wheel travel and ride quality over stock
  • Bolt-on system means no cutting or welding necessary for install
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable coilovers provide 0-3.5" of front lift height
  • Extended Travel coilovers matched with ICON UCA provides increased front droop travel
  • Billet Aluminum rear lower links offer on vehicle pinion angle adjustment
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.5 Aluminum Series remote reservoir rear shocks with 7/8" shafts
Specifications:
  • Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
  • Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
  • Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
  • Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
  • Bushings Included: Yes
  • Coils Quantity Front: 2
  • Coils Quantity Rear: 2
  • Grade Type: Performance
  • Maximum Lift: 3.5 IN
  • Mounting Hardware Included: Yes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
  • Shocks Included: Yes
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate: 650 PPI
Notes:
  • Kdss Equipped Require Rear Track Bar 54200
  • Suspension System Compatible With Kdss. Front Sway Bar Relocation Brackets Not Used For Kdss Equipped Vehicles. Certain Years Require Trimming For Front Reservoir Bracket Fitment
  • 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
  • Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • Oem Wheels & Tires Fitment: Yes
  • Ships In Multiple Boxes
Fitment:
  • Toyota 4Runner 2010-2022
  • Toyota FJ Cruiser 2010-2014
