Icon Vehicle Dynamics 10-UP FJ/10-UP 4RUNNER 0-3.5" STAGE 1 SUSPENSION SYSTEM Toyota Front and Rear- ICON-K53061

$2,094.54
sku
ICON-K53061
Alt Text!
Special Pricing for Local Pick Up Only, click here to learn more
Due to global pandemic and a shortage of raw materials for manufacturers, stock will fluctuate. Please contact us via phone, message, or use our quote request system for a stock check. Click here to contact us

This is our entry level suspension system for the 2010-UP Toyota 4Runner and 2010-2014 FJ Cruiser. The Stage 1 system works well in most on and off-road scenarios by significantly improving factory body roll and overall driving ability. ICON 2.5 Series front coilover shocks feature a vehicle-specific tune to give your Toyota 4Runner great ride quality on or off-road, and they are adjustable from 0 to 3.5" of lift. Our rear 2.0 Aluminum Series shocks in this system are tuned to match the front 2.5 Series coilovers in every aspect, providing smooth and consistent damping performance front to rear. This system is finished off with a pair of 2" lift rear coil springs that have been engineered to further improve ride quality and handling.

2010-2014 FJ CRUISER/2010-UP 4RUNNER 0-3.5" LIFT STAGE 1 SUSPENSION SYSTEM

Features

  • Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
  • Bushings Included: Yes
  • California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
  • Coils Quantity Front: 2
  • Coils Quantity Rear: 2
  • Grade Type: Performance
  • Maximum Lift: 3.5
  • Mounting Hardware Included: Yes
  • Shocks Included: Yes
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate: 650
  • Title: 10-UP FJ/10-UP 4RUNNER 0-3.5" STAGE 1 SUSPENSION SYSTEM
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5 Backspace / 0mm Offset
  • OEM Wheels & Tires Fitment: Yes
  • Ships in multiple boxes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75 Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00 Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00 Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT
  • APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE #102: KDSS EQUIPPED REQUIRE REAR TRACK BAR 54200

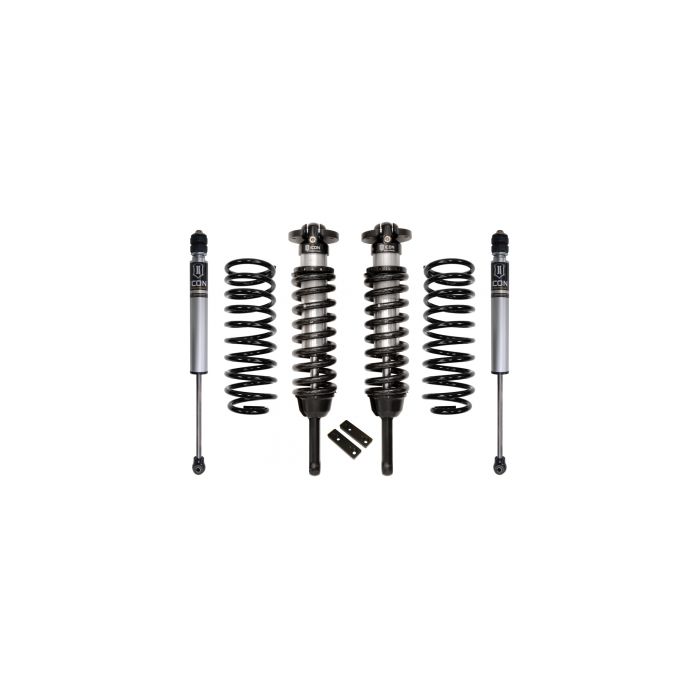

Includes:
  • QTY 1: 10-Up Fj/4Rnr/10-Up Gx 2.5 Vs Ir Coilover Kit
  • QTY 1: 07-Up Fj/03-Up 4Rnr/03-Up Gx Rear 2" Spring Kit
  • QTY 2: 07-Up Fj/03-Up 4Rnr/03-Up Gx 1-3" Rear 2.0 Vs Ir
More Information
Brand Icon Vehicle Dynamics
Make Model Year Toyota 4Runner 2014, Toyota 4Runner 2015, Toyota 4Runner 2016, Toyota 4Runner 2017, Toyota 4Runner 2018, Toyota 4Runner 2019, Toyota 4Runner 2020, Toyota 4Runner 2010, Toyota 4Runner 2011, Toyota 4Runner 2012, Toyota 4Runner 2013
