ICON 10-Up Toyota 4Runner/FJ Cruiser 0-3.5" Lift Stage 3 Suspension System Billet UCA- ICON-K53063

Special Price $4,227.22 Regular Price $4,672.19
sku
ICON-K53063
Free Shipping Banner
Alt Text!
Special Pricing for Local Pick Up Only, click here to learn more
Due to global pandemic and a shortage of raw materials for manufacturers, stock will fluctuate. Please contact us via phone, message, or use our quote request system for a stock check. Click here to contact us

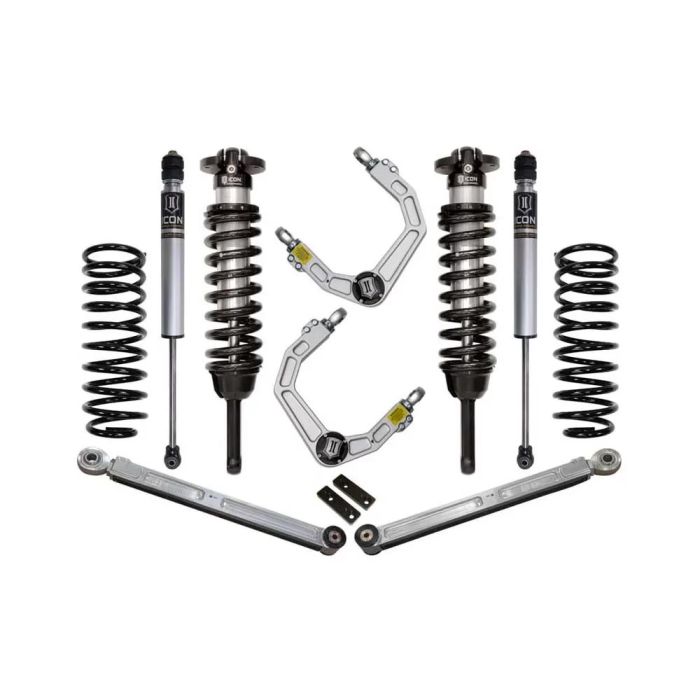

The Stage 3 suspension system for the 2010-UP Toyota 4Runner/2010-2014 FJ Cruiser includes the components found in the Stage 2 system along with an ICON Billet Aluminum Rear Lower Link kit. Extended travel ICON 2.5 Series coilover shocks and a billet aluminum Delta Joint upper control arm kit provide a significant upgrade to the 4Runner's front suspension. The rear of the vehicle is improved with our 2" lift coil springs, ICON 2.0 Aluminum Series shocks, and the additional rear lower links. ICON's CNC machined 6061 billet aluminum lower links are much stronger than the OE units, can be easily adjusted on the truck for optimum pinion angle, and are protected by a machined nylon skid strip to help slide over rocks without damage to the link's structure. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.

View Installation Instructions

Features:

  • Increased wheel travel and ride quality over stock
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • Adjustable coilovers provide 0-3.5" of front lift height
  • Extended Travel coilovers matched with ICON UCA provides increased front droop travel
  • Billet Aluminum rear lower links offer on vehicle pinion angle adjustment
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • FK Rod End bearings for extended longevity and minimal deflection
  • 2.0 Aluminum Series internal reservoir rear shocks with 5/8" shafts
  • Bolt-on system means no cutting or welding necessary for install
Specifications:
  • Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
  • Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
  • Add-On Part: 191014 - .25" COLLAR SPANNER PIN WRENCH
  • Bushings Included: Yes
  • Coils Quantity Front: 2
  • Coils Quantity Rear: 2
  • Grade Type: Performance
  • Maximum Lift: 3.5 IN
  • Mounting Hardware Included: Yes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5" Backspace / 0mm Offset
  • Shocks Included: Yes
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate: 650 PPI
Notes:
  • Kdss Equipped Require Rear Track Bar 54200
  • Suspension System Compatible With Kdss. Front Sway Bar Relocation Brackets Not Used For Kdss Equipped Vehicles. Certain Years Require Trimming For Front Reservoir Bracket Fitment
  • 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
  • Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • Oem Wheels & Tires Fitment: Yes
  • Ships In Multiple Boxes
Fitment:
  • Toyota 4Runner 2010-2022
  • Toyota FJ Cruiser 2010-2014
