Icon Vehicle Dynamics 10-UP FJ/10-UP 4RUNNER 0-3.5" STAGE 4 SUSPENSION SYSTEM W TUBULAR UCA Toyota Front and Rear- ICON-K53064T

$4,204.99
sku
ICON-K53064T
Alt Text!
Special Pricing for Local Pick Up Only, click here to learn more
Due to global pandemic and a shortage of raw materials for manufacturers, stock will fluctuate. Please contact us via phone, message, or use our quote request system for a stock check. Click here to contact us

ICON s 2010-UP Toyota 4Runner/2010-2014 FJ Cruiser Stage 4 suspension system provides a significant increase to the on and off-road performance of the vehicle. This system includes the components featured in the Stage 3 setup extended travel 2.5 Series coilover shocks, an ICON tubular Delta Joint upper control arm kit, 2 rear coil springs, and a tubular rear lower link arm kit - but sees the addition of 2.5 Aluminum Series Remote Reservoir rear shocks for balanced damping characteristics front to rear. The remote reservoir design allows for increased shock oil volume and enhanced cooling so that the rear of the vehicle can work harder for longer durations without noticeable fade occurring. The 2.5 Aluminum Series Remote Reservoir rear shocks also feature ICON s Bump Zone technology which significantly increases damping ability in the last 2 of compression travel, preventing harsh bottom-out sensation and giving the vehicle a much more controlled ride quality over varying terrain. ICON's tubular steel lower links are much stronger than the OE units, feature a low maintenance multi-durometer bushing, and can be adjusted for optimum pinion angle. On top of it all, these links have been designed to provide correct roll steer geometry for the best possible handling on and off-road.

This system features upper control arms with ICON's patented Delta Joint. The Delta Joint is a heavy-duty high angle ball joint that combines the durability of a ball joint with the performance characteristics of a traditional uniball. While the industry standard uniball does a great job of allowing the control arms of a vehicle to articulate with little bind, they do have an inherent weakness that leaves more to be desired when used in a daily driven application - exposure to the elements. The Delta Joint features a zinc plated housing providing the first layer of corrosion resistance, while a tough grease seal keeps potentially harmful elements out of the inner workings of the joint. Metal on metal construction and a greaseable design increase the longevity of the Delta Joint while at the same time allowing for noise-free operation. What makes the Delta Joint unique is that it brings the best of both worlds to ICON upper control arms with features that make it more robust than a uniball, and at the same time capable of greater angularity than a typical ball joint.

2010-UP 4RUNNER/2010-2014 FJ CRUISER 0-3.5" LIFT STAGE 4 SUSPENSION SYSTEM WITH TUBULAR UCA

Features

  • Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
  • Bushings Included: Yes
  • California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
  • Coils Quantity Front: 2
  • Coils Quantity Rear: 2
  • Grade Type: Performance
  • Maximum Lift: 3.5
  • Mounting Hardware Included: Yes
  • Shocks Included: Yes
  • Spring Color: Black
  • Spring Material: Steel
  • Spring Rate: 650
  • Title: 10-UP FJ/10-UP 4RUNNER 0-3.5" STAGE 4 SUSPENSION SYSTEM W TUBULAR UCA
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5 Backspace / 0mm Offset
  • OEM Wheels & Tires Fitment: Yes
  • Ships in multiple boxes
  • Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75 Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00 Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00 Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #46: SUSPENSION SYSTEM COMPATIBLE WITH KDSS. FRONT SWAY BAR RELOCATION BRACKETS NOT USED FOR KDSS EQUIPPED VEHICLES. CERTAIN YEARS REQUIRE TRIMMING FOR FRONT RESERVOIR BRACKET FITMENT
  • APPLICATION NOTE #47: 700LB/IN EXPEDITION COIL AVAILABLE FOR HEAVIER EQUIPPED VEHICLES
  • APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
  • APPLICATION NOTE #102: KDSS EQUIPPED REQUIRE REAR TRACK BAR 54200

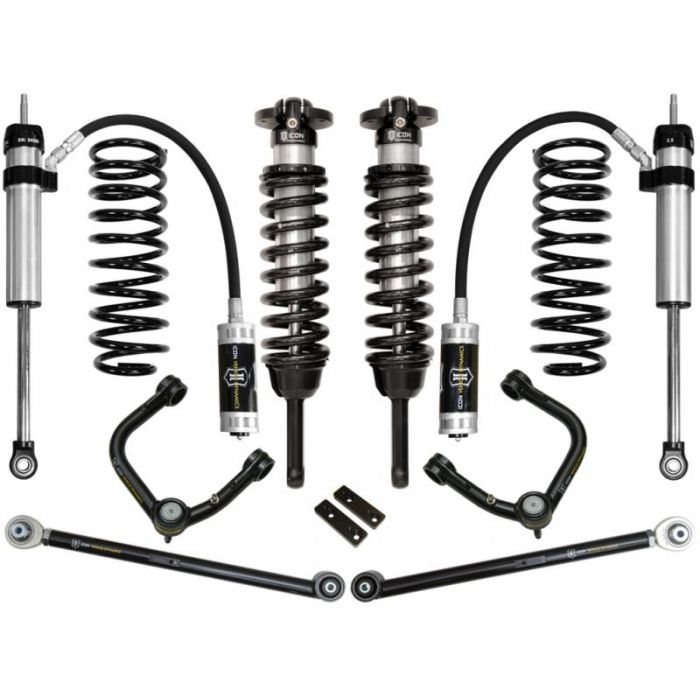

Includes:
  • QTY 1: 10-Up Fj/4Rnr/10-Up Gx Ext Travel 2.5 Vs Ir Coilover Kit
  • QTY 1: 07-Up Fj/03-Up 4Rnr/03-Up Gx Tubular Uca Dj Kit
  • QTY 1: 07-Up Fj/03-Up 4Rnr/08-Up Lc 200/03-Up Gx Tubular Lower Trailing Arm Kit
  • QTY 1: 07-Up Fj/03-Up 4Rnr/03-Up Gx Rear 2" Spring Kit
  • QTY 1: 07-Up Fj/03-Up 4Rnr/03-Up Gx 1-3" Rear 2.5 Vs Rr Pair
More Information
Brand Icon Vehicle Dynamics
Make Model Year Toyota 4Runner 2014, Toyota 4Runner 2015, Toyota 4Runner 2016, Toyota 4Runner 2017, Toyota 4Runner 2018, Toyota 4Runner 2019, Toyota 4Runner 2020, Toyota 4Runner 2010, Toyota 4Runner 2011, Toyota 4Runner 2012, Toyota 4Runner 2013
