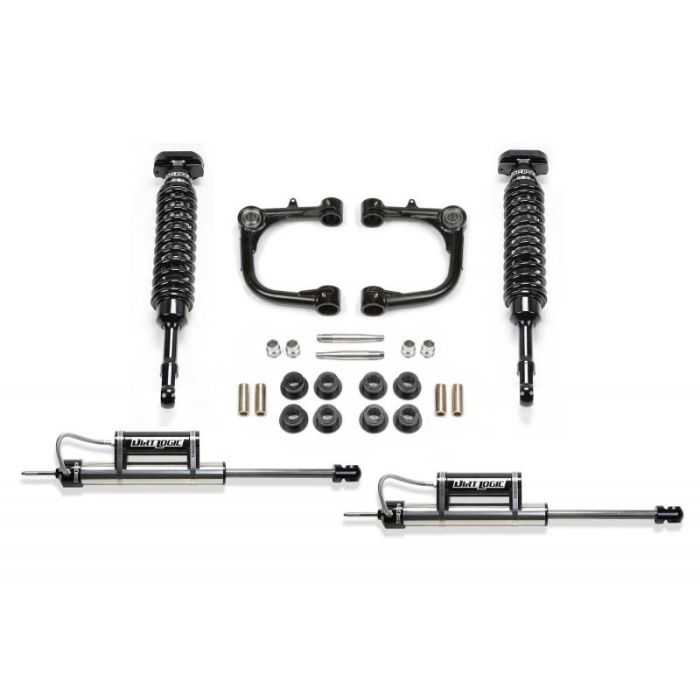

Fabtech 3" UCA & DLSS 2.5 C/O SYS W/ DLSS RESI RR SHKS 15-19 TOYOTA TACOMA 2WD/4WD 6 LUG Toyota Tacoma 2015-2019- FABT-K7058DL

Special Price $2,955.06 Regular Price $3,693.83
sku
FABT-K7058DL
Alt Text!
Special Pricing for Local Pick Up Only, click here to learn more
Due to global pandemic and a shortage of raw materials for manufacturers, stock will fluctuate. Please contact us via phone, message, or use our quote request system for a stock check. Click here to contact us

Obtain increased wheel travel with a mild lift height with this heavy duty Upper Control Arm systems. The tubular Upper Control Arms feature 1.25 OD, .120 wall thick chromoly tube construction with 1 diameter Stainless Steel Uniballs that attach to the factory spindle without drilling. The replacement UCA's have been designed to work in conjunction with Fabtech's Dirt Logic 2.5 Coilover shocks providing 10 of wheel travel for a complete front suspension system upgrade. The vehicle's offroad suspension performance will be greatly increased due to the extensive ride tuning of the Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25's. Features & Benefits: Arms eliminate upper ball joint w/ super strong 1 ID Stainless American Uniball. Additional caster is built into Arms for greater align ability to help with problematic leveling kit alignments. Allows for increased wheel travel when used with Dirt Logic 2.5 Coilover shocks. Chromoly tubing reduces flex found in stock arms for more positive road feel. 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature. Arms are direct replacements for factory arms on suspensions that require additional strength and align ability. Material Construction Specs: Built with same materials as found on Trophy Trucks. .120 Wall 4130 Chromoly Tubing. 1.25 OD. .250 wall DOM Bushing Barrels. 1 ID Stainless Steel American Uniball. 17-4 Stainless Misalignments. Heat Treated 17-4 Stainless Steel Tapered Uniball Pins.

3" UCA & DLSS 2.5 C/O SYS W/ DLSS RESI RR SHKS 15-19 TOYOTA TACOMA 2WD/4WD 6 LUG MODELS

Features

  • California Proposition 65: WARNING: Cancer & Reproductive Harm and image
  • Title: Fabtech 3" UCA & DLSS 2.5 C/O SYS W/ DLSS RESI RR SHKS 15-19 TOYOTA TACOMA 2WD/4WD 6 LUG
  • TIRE SIZE - 33/12.50R17 WHEEL - 17X8 W/4 5/8" BS W/MINOR TRIMMING TIRE SIZE - 275/70R18 WHEEL - 18X9 W/4 3/4" BS W/MINOR TRIMMING TIRE SIZE - 275/60R20 WHEEL - 20X9 W/5" BS W/MINOR TRIMMING

Notes:

6 LUG

More Information
Brand Fabtech
Make Model Year Toyota Tacoma 2015, Toyota Tacoma 2016, Toyota Tacoma 2017, Toyota Tacoma 2018, Toyota Tacoma 2019, Toyota Tacoma 2020
