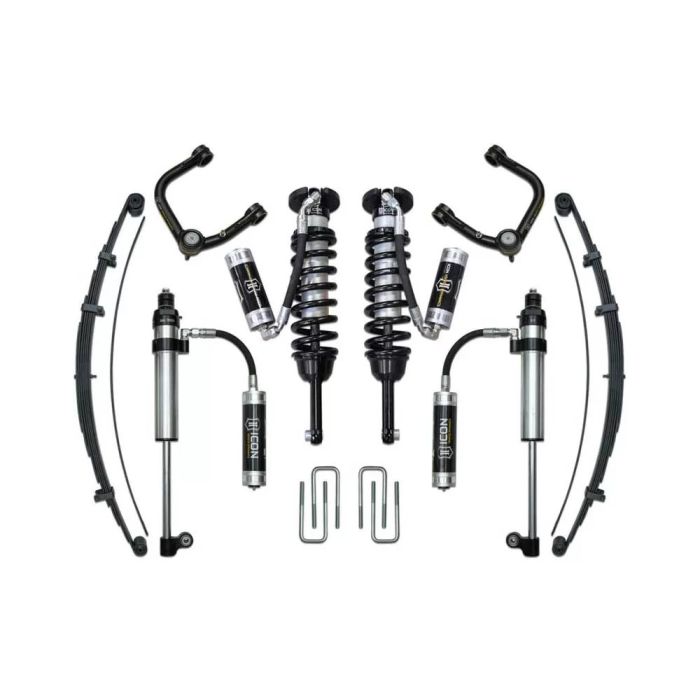

ICON 05-15 Toyota Tacoma 0-3.5" / 16-Up 0-2.75" Stage 8 Suspension System Tubular UCA- ICON-K53008T

ICON Vehicle Dynamics 2005-UP Toyota Tacoma suspension systems are designed with maximum performance and the serious driver in mind. Throughout the development of these systems ICON engineers' primary focus is to increase wheel travel and damping ability, which translates into outstanding vehicle control and ride quality both on and off-road. This Stage 8 system goes a step further in delivering ICON performance to the Tacoma with the addition of rear suspension components that include an ICON RXT multi-rate leaf spring and a unique RXT-specific 2.5 Aluminum Series shock.

View Installation Instructions

Features:

• Increased wheel travel and ride quality over stock
• FK Rod End bearings for extended longevity and minimal deflection
• Adjustable coilovers with CDCV provide up to 3.5" of front lift height on 2005 to 2015 models and up to 2.75" on 2016-up models
• Shocks are fully rebuildable and revalveable
• Bolt-on system means no cutting or welding necessary for install
• ICON 1K" tested under rigorous off-road conditions to validate tune, performance, strength, and durability
• Vehicle-specific tuned front and rear shocks for superior shock damping and control
• Extended Travel coilovers matched with ICON UCA provides increased front droop travel
• 6061 aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated coilover shock body with 7/8" shaft
• 2.5 Aluminum Series remote reservoir RXT rear shocks feature corrosion resistant anodized aluminum shock bodies with 7/8" shafts
• Multi-Rate Leaf Spring with 3 user-adjustable spring rates for unique vehicle configurations
• ICON RXT Rear Shock with unique side-mounted lower eyelet allows for increased travel (up to 20%) while utilizing factory mounting location

• Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
• Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
• Add-On Part: 191003 - ICON SHORT 2.5 COIL WRAP W/LOGO PAIR (11.25-12.25)
• Add-On Part: 191011 - TUBULAR UCA BILLET CAP SET
• Bushings Included: Yes
• Grade Type: Performance
• Leaf Spring Leaf Quantity: 8
• Maximum Lift: 3.5 IN
• Mounting Hardware Included: Yes
• OEM Wheels & Tires Fitment: Yes
• Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
• Recommended Aftermarket Wheels: ICON Alloys | 17x8.5 with 4.75" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 18x9 with 5" Backspace / 0mm Offset
• Recommended Aftermarket Wheels: ICON Alloys | 20x9 with 5" Backspace / 0mm Offset
• Shocks Included: Yes
• Spring Color: Black
• Spring Material: Steel
• Spring Rate: 650 PPI

• 2016-Up Tacoma Lift Range Is 0-2.75"
• Trimming Required For Recommended Tire Size
• Bump Stop Spacer Kit 51045 Can Be Installed To Increase Preload .25" Beyond Maximum
• 700Lb/In Expedition Coil Available For Heavier Equipped Vehicles
• Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
• Oem Wheels & Tires Fitment: Yes
• Ships In Multiple Boxes
• 2017-Up Tacoma Trd Pro Models Will Have Front Lift Height Range Of 0-1.25" And 1.375-2.125" Of Rear Lift Over Stock, Depending On Rear Spring Configuration And Rear Weight

• Toyota Tacoma Pre Runner 2005-2015
• Toyota Tacoma Base 4WD 2005-2015
• Toyota Tacoma TRD Sport Prerunner 2006-2009
• Toyota Tacoma SR5 Prerunner 2006-2009
• Toyota Tacoma Base Prerunner 2006-2006
• Toyota Tacoma TRD Sport 2010-2022
• Toyota Tacoma TRD Pro 2015-2022
• Toyota Tacoma SR5 2016-2022
• Toyota Tacoma SR 2016-2022
• Toyota Tacoma Edicion Especial 2016-2022
• Toyota Tacoma TRD Off-Road 2016-2022
• Toyota Tacoma Limited 2016-2022
• Toyota Tacoma Sport 17-22
• Toyota Tacoma Nightshade 2021-2022
• Toyota Tacoma Trail 2021-2021
