Icon Vehicle Dynamics 16-UP TACOMA S2 STAGE 3 UPGRADE SYSTEM Toyota Tacoma Front 2016-2020- ICON-K53127
The ICON Vehicle Dynamics S2 Secondary Shock System redefines the off-road capability of the 2016-UP Toyota Tacoma by allowing for the installation of a secondary shock to an existing ICON coilover setup. The addition of a secondary 2.5 Series or Omega Bypass shock means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle?s suspension is effectively doubled. As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows 2016-UP Toyota Tacoma owners to upgrade in steps or all at once.

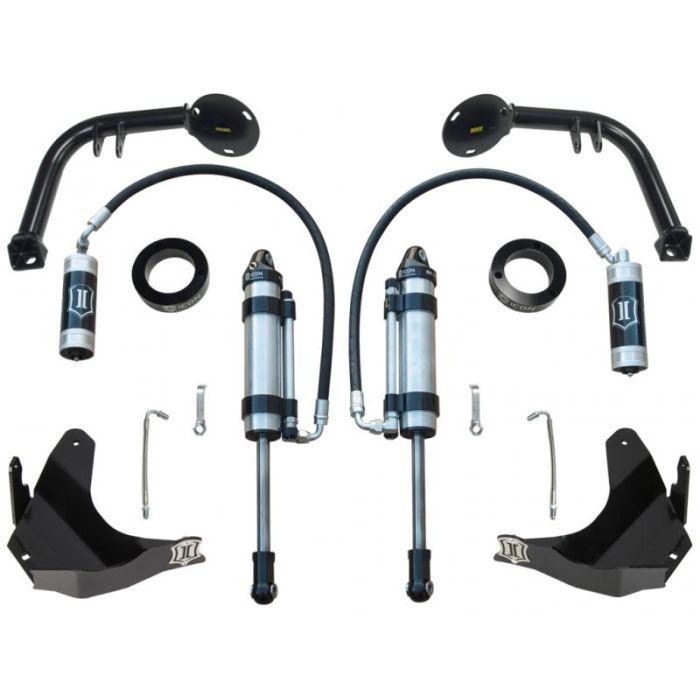

The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel skidplates (with incorporated shock mounts) make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product. The system was designed to eliminate the need for any major alteration of the vehicle?s frame or any other factory suspension components, and the components are 100% removable in case the system is to be installed on another vehicle. The modular design of the S2 kit also allows for standalone installation of the skid plates, which provides the added benefit of protecting the factory lower control arms from potential trail damage that can be experienced while off-road.
2016-UP TOYOTA TACOMA S2 STAGE 3 UPGRADE SYSTEM
Features
- Title: 16-UP TACOMA S2 STAGE 3 UPGRADE SYSTEM
- Upper Mount Type: Eyelet
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5? Backspace / 0mm Offset
- Shaft Diameter: 0.875
- Add-On Part: 252012 - -4 TO -10 HOSE SHIELD KIT
- Adjustable: No
- Bushings Included: Yes
- California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Cylinder Color: Silver
- Cylinder Diameter: 2.5
- Cylinder Material: Aluminum
- Dampening Type: Oil
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Shaft Material: Chrome
- SHOCK MOUNTS INCLUDED: Yes
- Shocks Included: Yes
- OEM Wheels & Tires Fitment: Yes
- APPLICATION NOTE #117: NOT RECOMMENDED WITH REMOTE RESERVOIR COILOVER
- Ships in multiple boxes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 4.75? Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 5.00? Backspace / 0mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.00? Backspace / 0mm Offset
- Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #17: THESE ARE STAND-ALONE KITS AND ARE NOT TO BE USED IN CONJUNCTION WITH ANY OTHER AFTERMARKET KITS
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #59: WELDING REQUIRED - LOWER CONTROL ARM
- APPLICATION NOTE #95: DOES NOT WORK WITH TRD BIG BRAKE KIT
Notes:
Fits position: Front
| Brand | Icon Vehicle Dynamics |
|---|---|
| Make Model Year | Toyota Tacoma 2016, Toyota Tacoma 2017, Toyota Tacoma 2018, Toyota Tacoma 2019, Toyota Tacoma 2020 |
