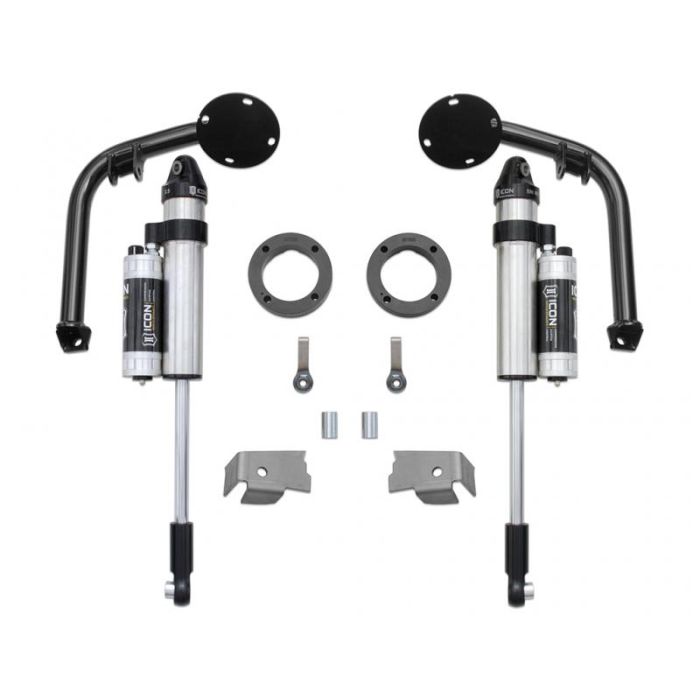

Icon Vehicle Dynamics 07-UP TUNDRA S2 STAGE 2 UPGRADE SYSTEM Toyota Tundra Front 2007-2020- ICON-K53152
This Item has limited quantity. Request Quote for item availability.
The ICON Vehicle Dynamics Stage 2 S2 Secondary Shock System redefines the off-road capability of the 2007-UP Toyota Tundra by allowing for the installation of a secondary shock to an existing ICON coilover setup. The addition of a 2.5 Series CDC Valve secondary shock means rougher terrain and larger off-road obstacles can be overcome with confidence as the damping ability of the vehicle s front suspension is effectively doubled. ICON s Compression Damping Control Valve technology allows for the end user to adjust the ride quality of the vehicle with 10 unique compression curve settings.
As opposed to overly complicated and expensive long travel kits, the ICON S2 System is an affordable, mostly bolt-on upgrade that drastically increases off-road performance, is easy to install, and has a modular design that allows 2007-UP Toyota Tundra owners to upgrade in steps or all at once. The S2 Secondary Shock System utilizes the factory lower control arms and maintains OE track width while a combination of a billet aluminum shock tower adapters, fabricated shock hoops, and steel lower shock mounts make for a straightforward install with the exceptional build quality you would expect from an ICON Vehicle Dynamics product.
2007-UP TOYOTA TUNDRA S2 STAGE 2 UPGRADE SYSTEM
Features
- Adjustable: Yes
- Bushings Included: Yes
- California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
- Cylinder Color: Silver
- Cylinder Diameter: 2.5
- Cylinder Material: Steel
- Dampening Type: Oil
- Gas Charged: Yes
- Grade Type: Performance
- Lower Mount Type: Eyelet
- Mounting Hardware Included: Yes
- Shaft Material: Chrome
- SHOCK MOUNTS INCLUDED: Yes
- Shocks Included: Yes
- Title: 07-UP TUNDRA S2 STAGE 2 UPGRADE SYSTEM
- Upper Mount Type: Eyelet
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625 Backspace / 16mm Offset
- Shaft Diameter: 0.875
- OEM Wheels & Tires Fitment: Yes
- Recommended Aftermarket Wheels: ICON Alloys | 17x8.5" w/ 5.75 Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 18x9" w/ 6.00 Backspace / 25mm Offset
- Recommended Aftermarket Wheels: ICON Alloys | 20x9" w/ 5.625 Backspace / 16mm Offset
- Recommended Aftermarket Tires: 35" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
- APPLICATION NOTE #17: THESE ARE STAND-ALONE KITS AND ARE NOT TO BE USED IN CONJUNCTION WITH ANY OTHER AFTERMARKET KITS
- APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
- APPLICATION NOTE #59: WELDING REQUIRED - LOWER CONTROL ARM
- Ships in multiple boxes
- QTY 1: 07-21 Tundra S2 Hoop Kit
- QTY 1: 07-21 Tundra S2 2.5 Vs Pb Cdcv Pair
| Brand | Icon Vehicle Dynamics |
|---|---|
| Make Model Year | Toyota Tundra 2014, Toyota Tundra 2015, Toyota Tundra 2016, Toyota Tundra 2017, Toyota Tundra 2018, Toyota Tundra 2019, Toyota Tundra 2020, Toyota Tundra 2007, Toyota Tundra 2008, Toyota Tundra 2009, Toyota Tundra 2010, Toyota Tundra 2011, Toyota Tundra 2012, Toyota Tundra 2013 |
