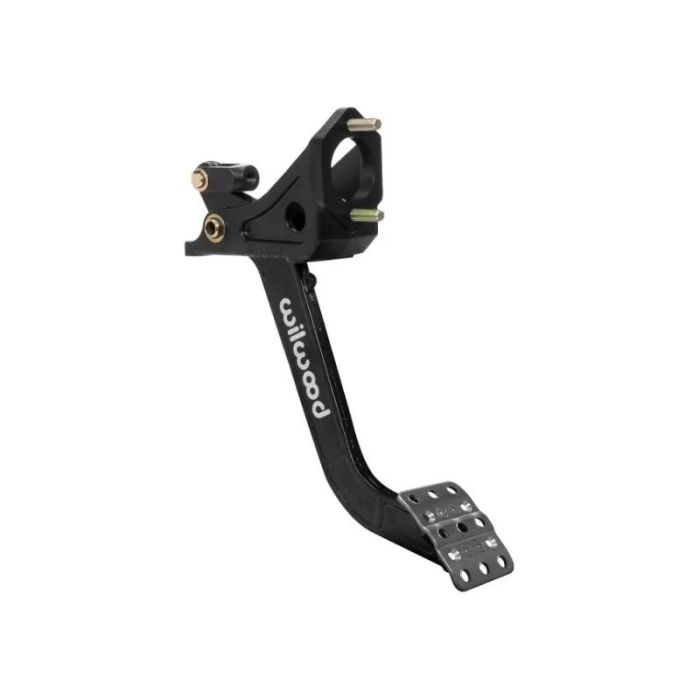

Wilwood Adjustable Single Pedal - Reverse Mount - 6:1 - 340-13574
This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 61 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size.
Features:
- Aluminum
- Black E-coat
- Mount loc: Swing
- Mount Facing: Reverse
- Mount Length: 11.28
- Pedal 1 Ratio 6.0 to 1
This swinging mount pedal assembly mounts a single brake or clutch master cylinder in a reverse position inside the firewall. It features a lightweight aluminum frame, with a high strength reinforced I-Beam style forged 61 ratio pedal arm. The non-skid waffled pedal pad can be laterally adjusted for driver preference or clearance as necessary. This pedal accepts any Wilwood vertical mount flange single or tandem outlet master cylinder. Horizontal mount flange master cylinders require an adapter kit. Master cylinders are ordered separately by style and bore size.
Features:
- Aluminum
- Black E-coat
- Mount loc: Swing
- Mount Facing: Reverse
- Mount Length: 11.28
- Pedal 1 Ratio 6.0 to 1
| Brand | Wilwood |
|---|---|
| upc | 889545028508 |
